DTC P2121: Throttle/Pedal Position Sensor/Switch "D" Circuit Range/Performance: Wiring Diagram

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

Refer to DTC P2120, P2122 - P2123, P2125, P2127 - P2128, P2138 .

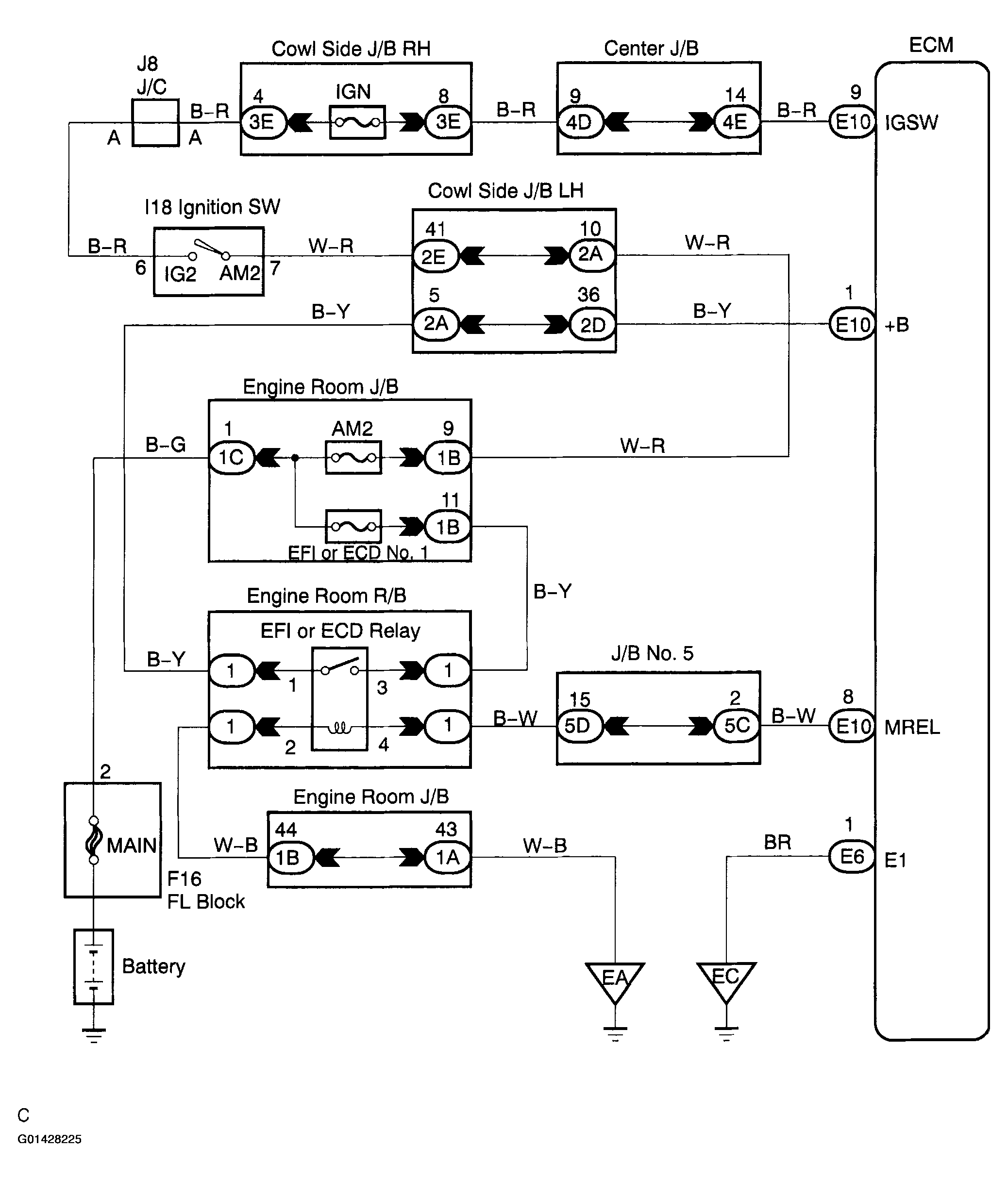

Fig 1: ECM Power Source Circuit Wiring Diagram
G01428225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
