Standard Bolt (Service Specifications)
>>
How To Determine Bolt Strength
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
How To Determine Bolt Strength

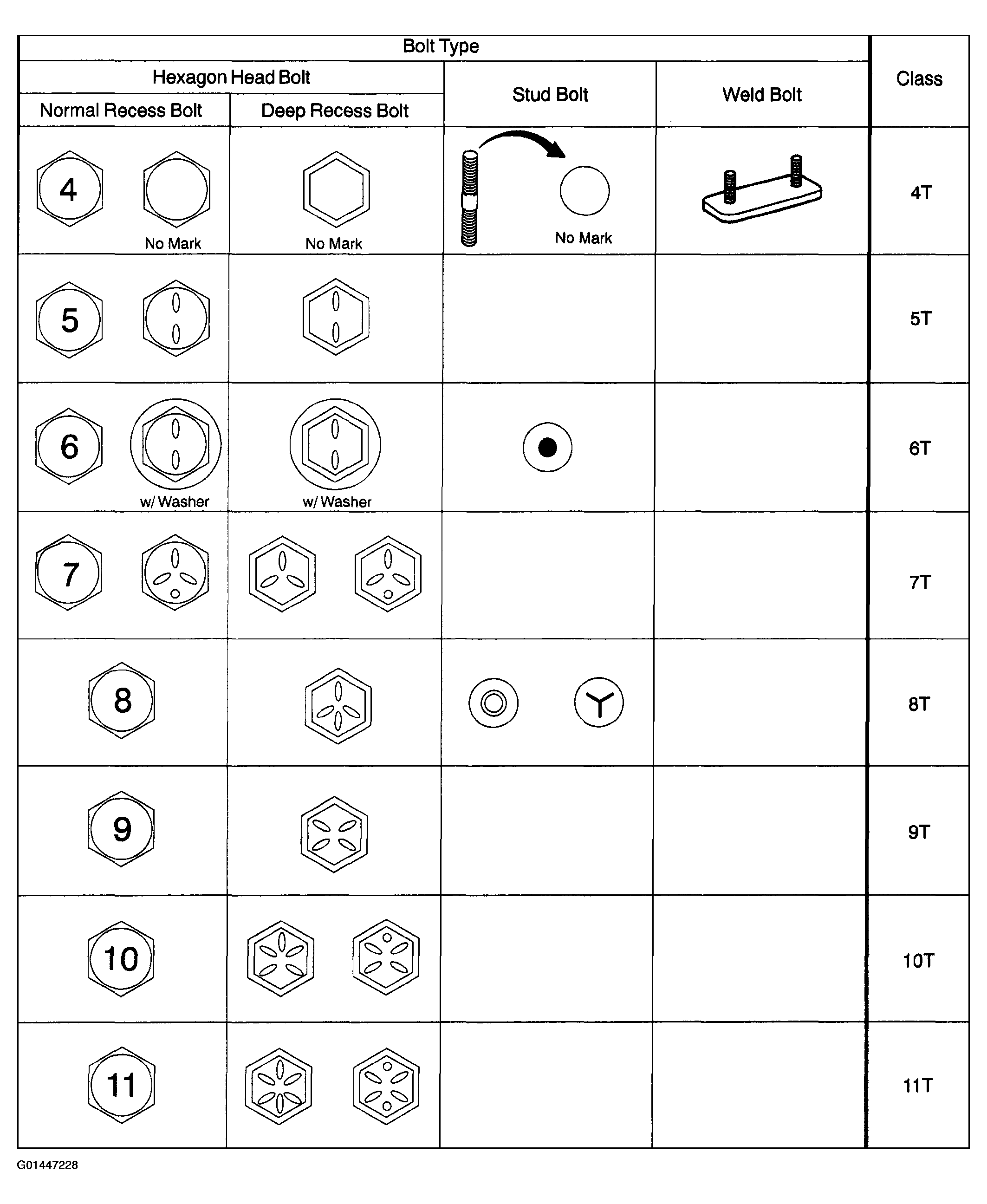

Fig 1: Bolt Strength Specification Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
