Steering Sensor Communication Stop Mode

STEERING SENSOR COMMUNICATION STOP MODE

DTC Detecting Condition:




CIRCUIT DESCRIPTION

Wiring Diagram:

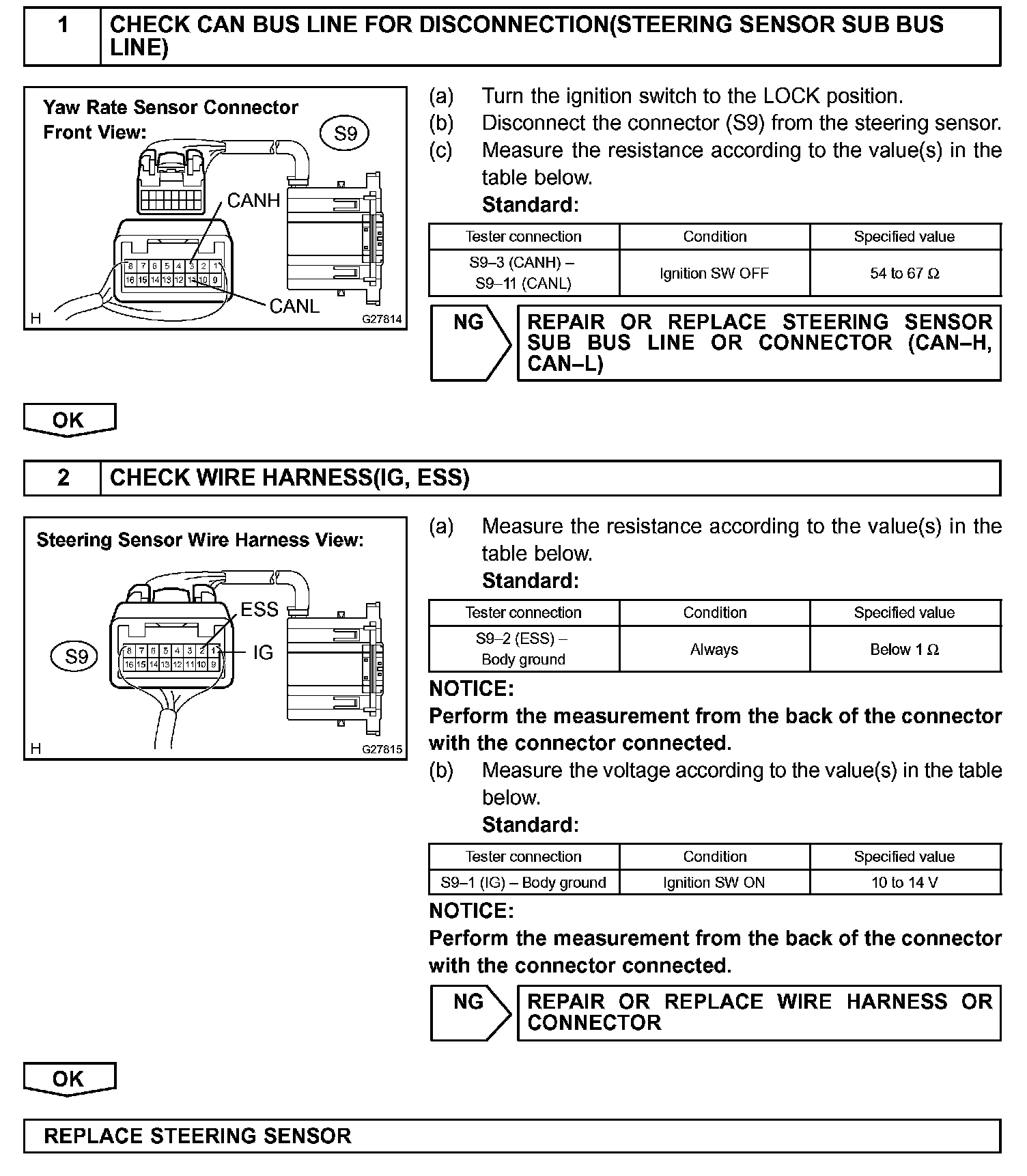

Step 1 - 2:




INSPECTION PROCEDURE
