Terminals Of ECM

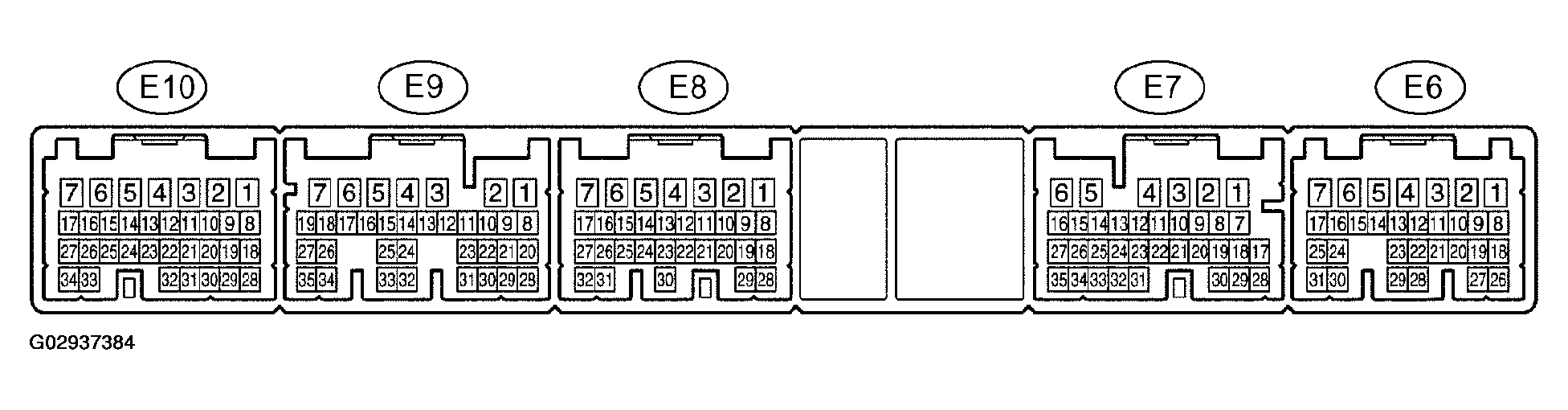

Fig 1: Identifying ECM Connector E10, E9, E8, E7 And E6 Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

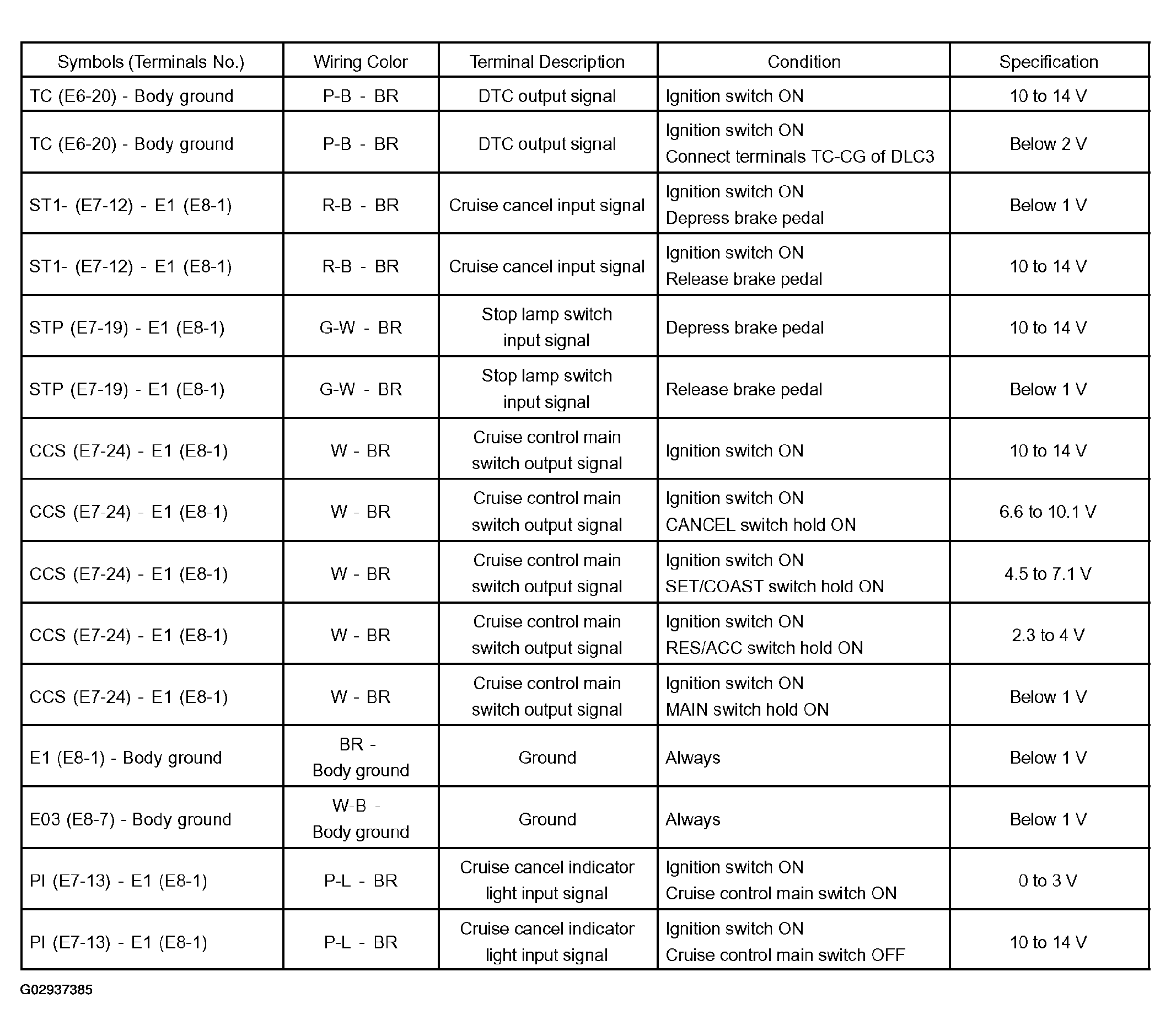

Fig 2: ECM Terminal Specification Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the value is not within the standard range, some defects on the vehicle is suspected.
