Inspection Procedure

1. CHECK MAP DISC
   1. Check that the map disc is not deformed or cracked.

   OK: No deformations or cracks appear on the map disc.

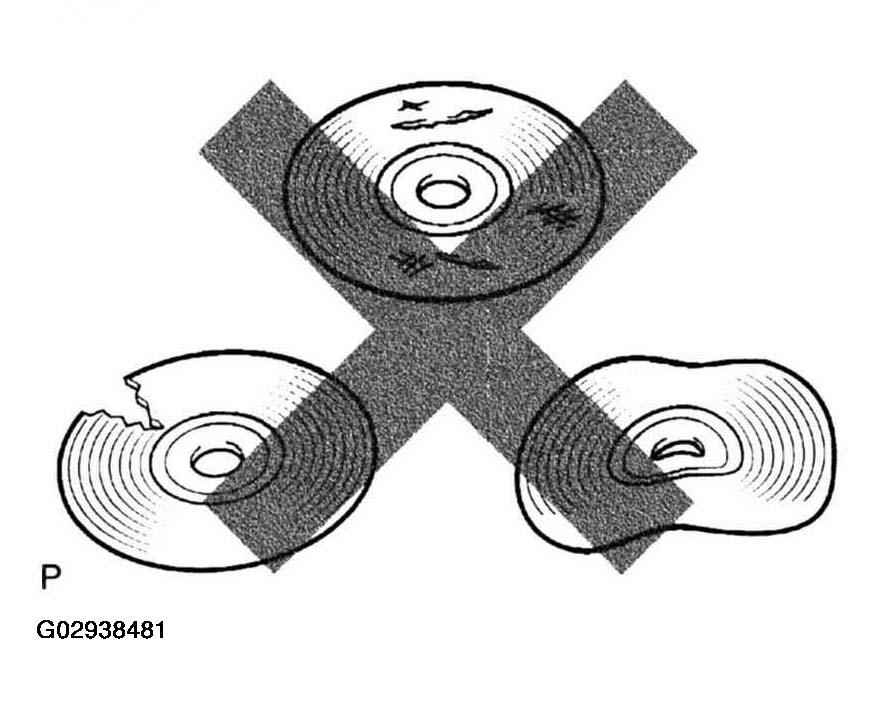

   Fig 1: Identifying Damage Disc

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE MAP DISC

   OK: Go To Next Step.

2. CHECK MAP DISC
   1. Check for dirt on the map disc surface.

   OK: No dirt is on the map disc surface.

   HINT:

   If dirt is on the map disc surface, wipe it with a soft cloth from inside to outside in a radial direction.

   NOTE: Do not use conventional record cleaner or anti-static preservative.
   Fig 2: Wiping Disc

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: CLEAN MAP DISC

   OK: Go To Next Step.

3. NAVIGATION CHECK MODE (MICROPHONE CHECK)

1. Enter the "Microphone Check" mode (see NAVIGATION CHECK MODE (MICROPHONE CHECK)  )
2. Follow the directions on the screen. Check if the word recognition indicator is displayed in green in each item.

OK: All check items are recognized.

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

Fig 3: Microphone Check

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE RADIO AND NAVIGATION ASSY (SEE  RADIO RECEIVER ASSY  )
