Electronic Controlled Automatic Transmission (ECT) - Diagnostics: Location: Notes

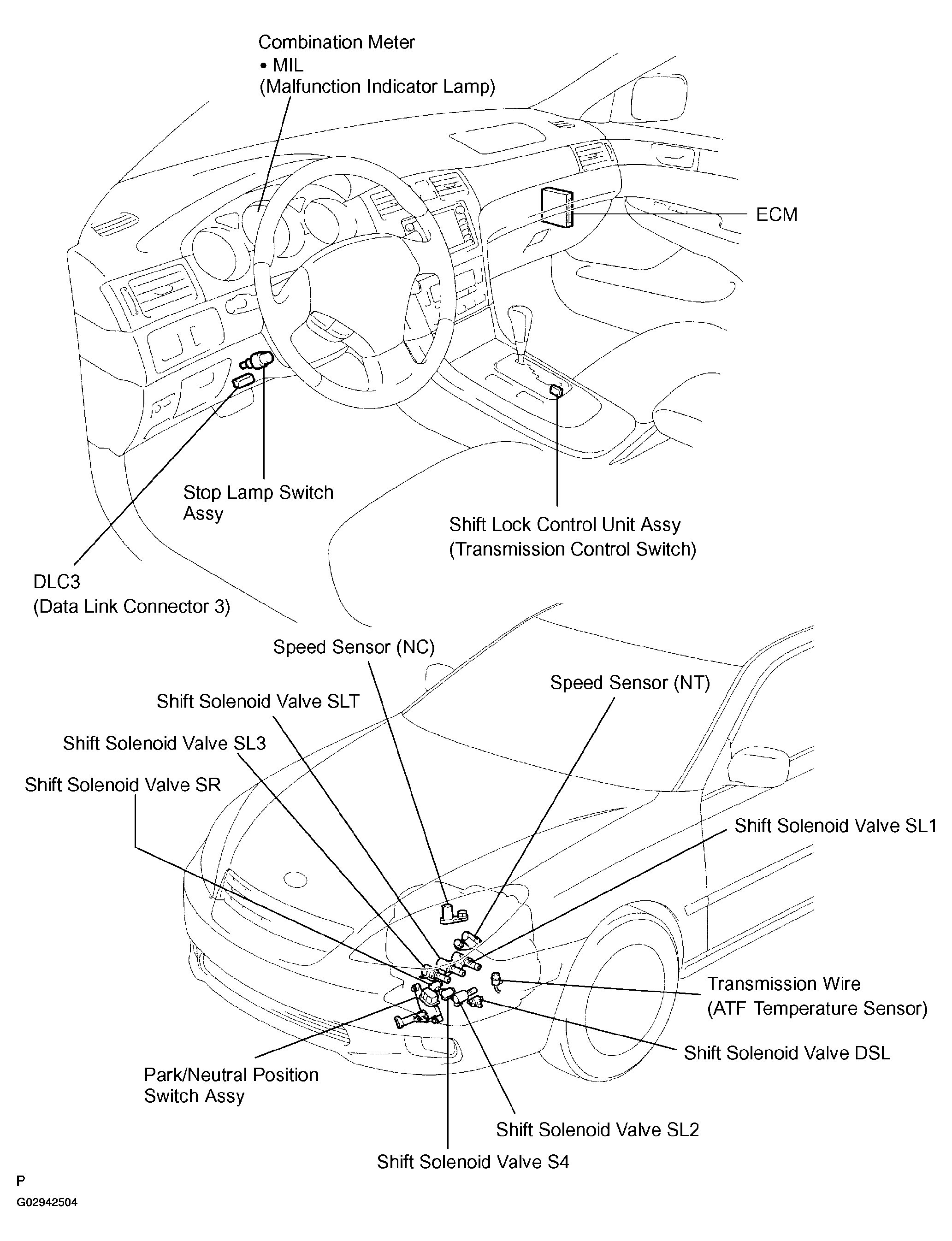

Fig 1: Locating Components Of Electronic Controlled Automatic Transaxle
G02942504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
