Toe Control Link: Removal

REMOVE REAR WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
REMOVE REAR FENDER APRON SEAL
DISCONNECT ABS SPEED SENSOR WIRE HARNESS from TOE CONTROL LINK
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
REMOVE TOE CONTROL LINK
1. Remove the nut.
  Torque: 59 N.m (600 kgf.cm, 44 ft.lbf)

  HINT:

  At the time of installation, after stabilizing the suspension, torque the nut.
2. Using SST, disconnect the toe control link from the axle carrier.
  SST 09610-20012

  NOTE: Be careful not to damage the dust cover.

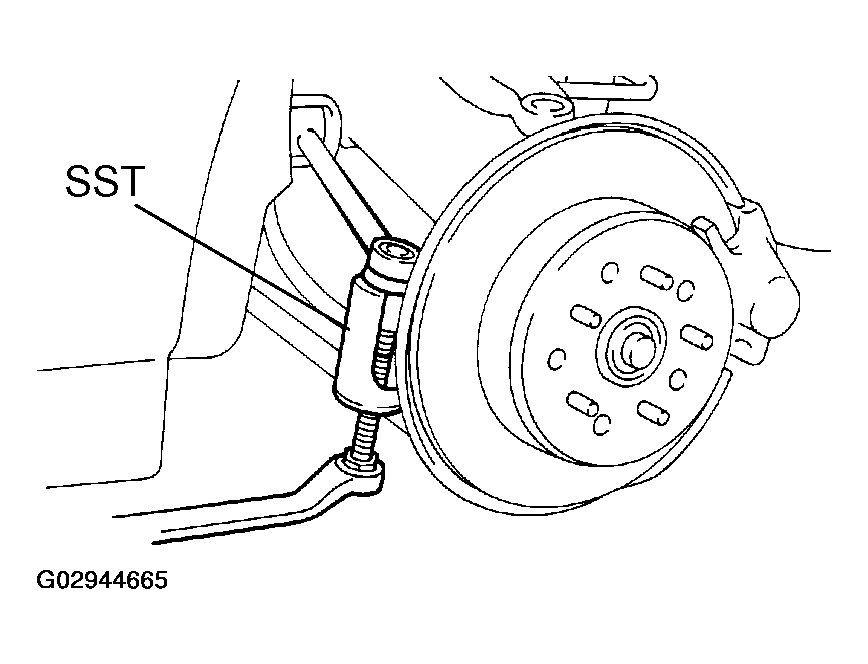

  Fig 1: Disconnecting Toe Control Link From Axle Carrier
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Place the matchmarks on the adjusting cam and suspension member.

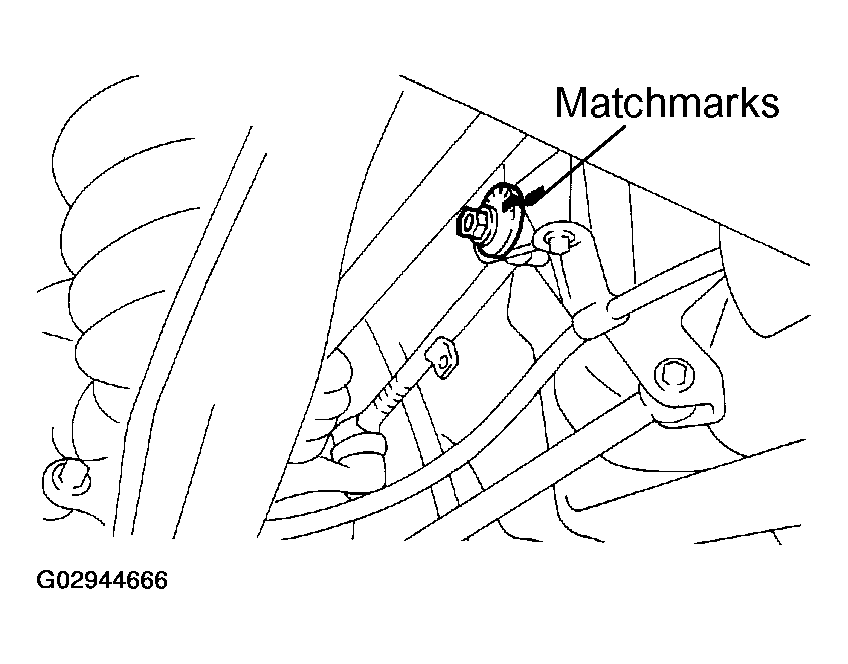

  Fig 2: Placing Matchmarks On Adjusting Cam And Suspension Member
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the nut, adjusting cam No.2, adjusting cam No.1 and the toe control link.
  Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)

  HINT:

  At the time of installation, after stabilizing the suspension, torque the nut.
