System Specifications

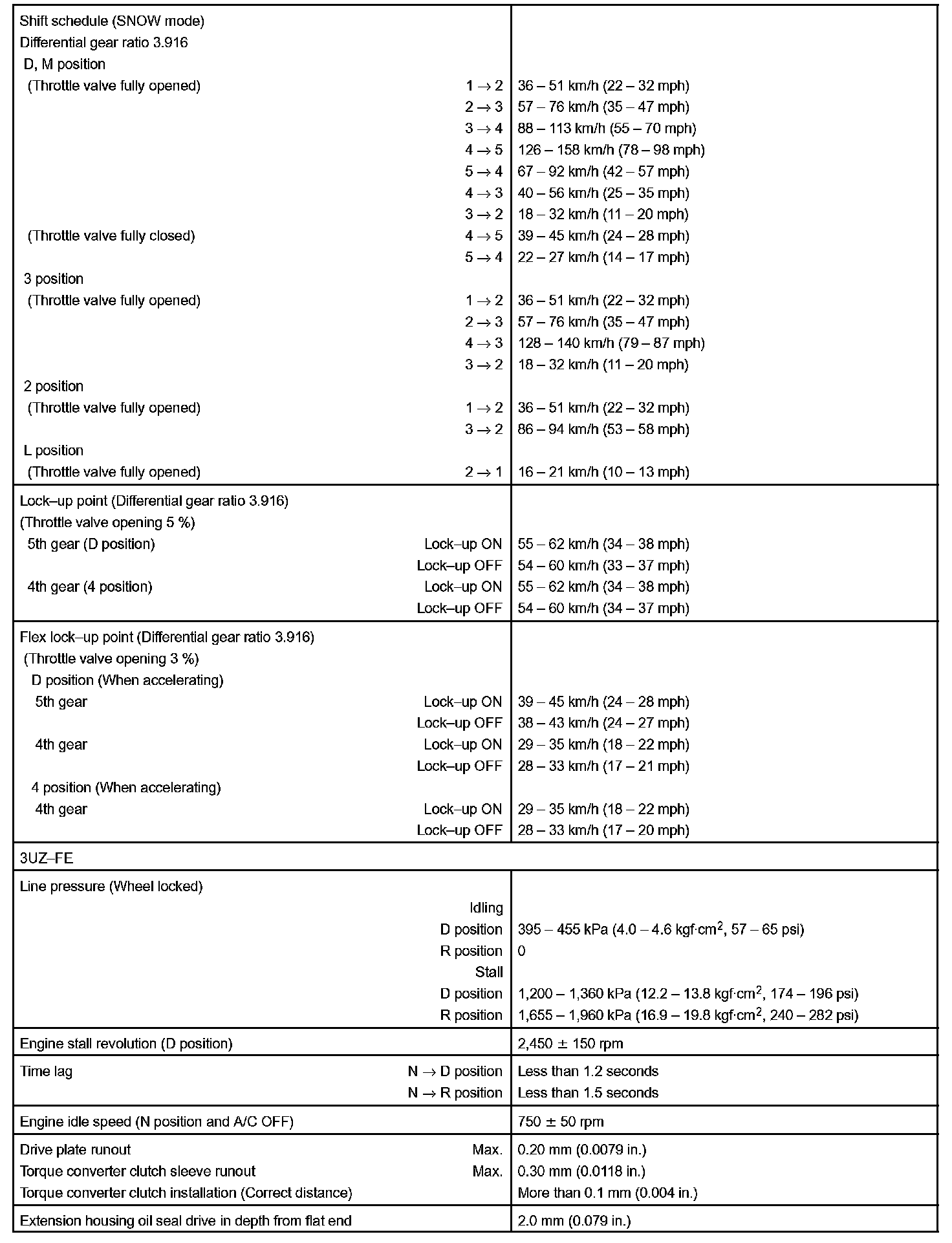

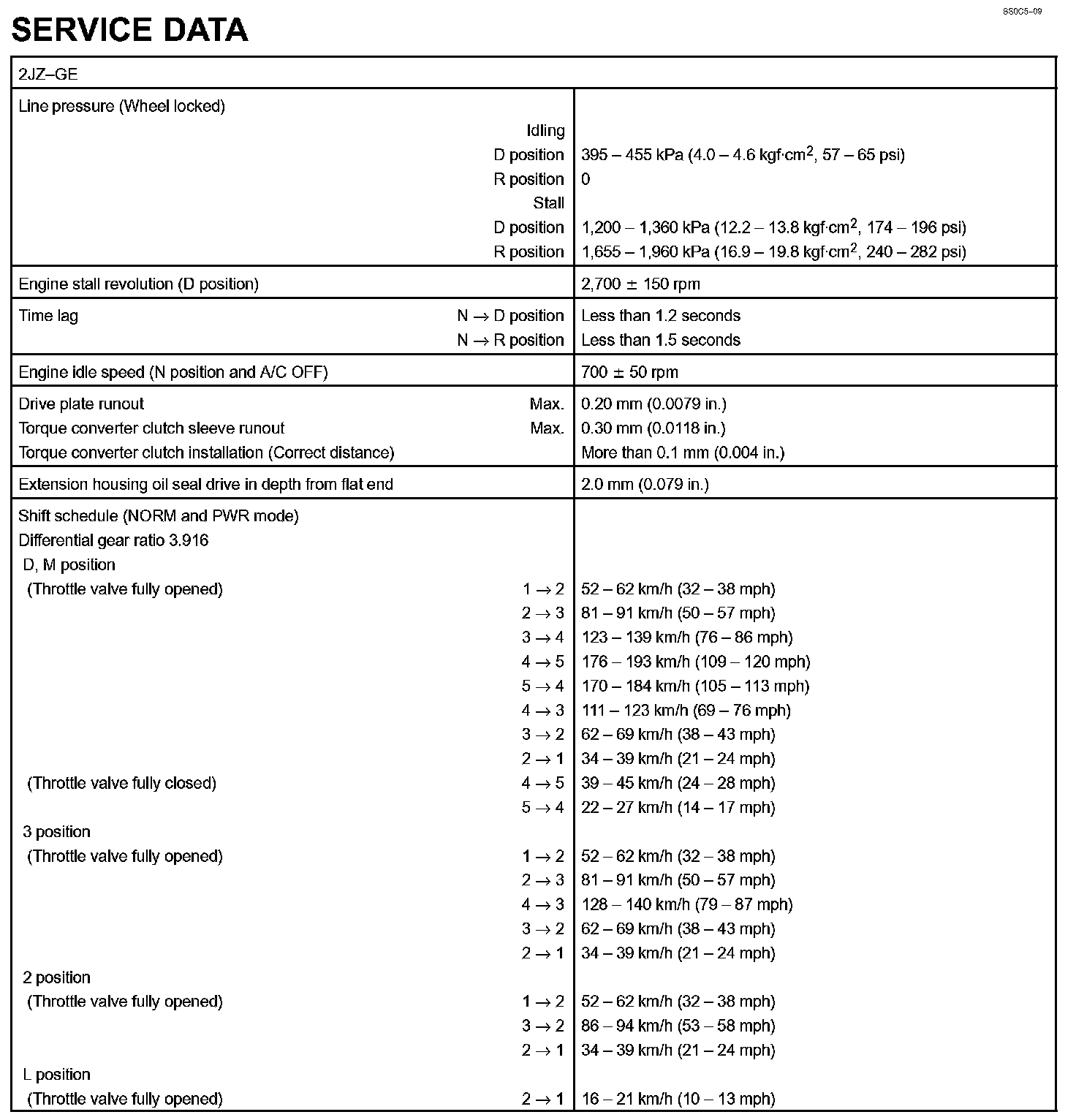

Automatic Transmission - Service Data Part 1:

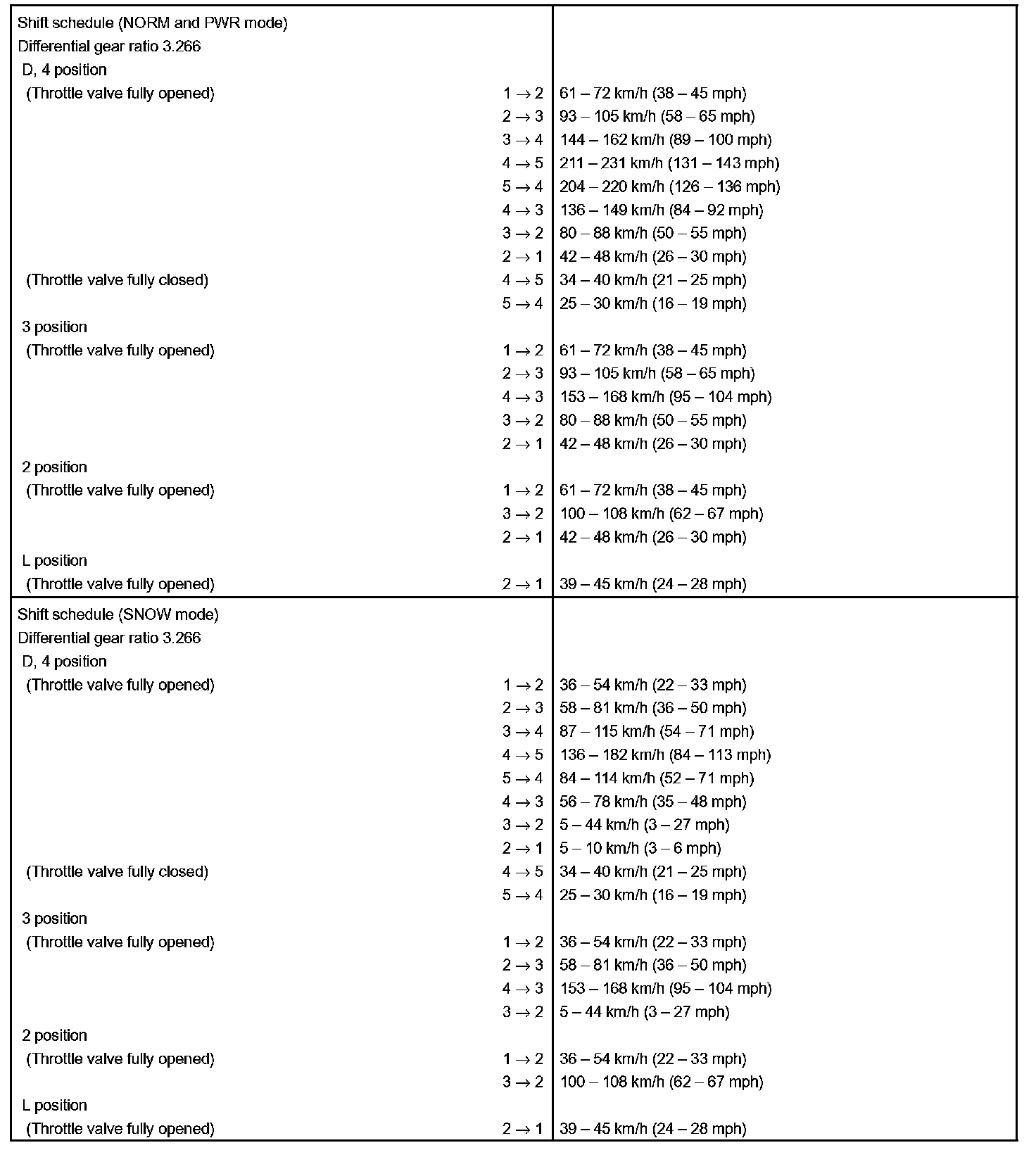

Automatic Transmission - Service Data Part 2:




Automatic Transmission - Service Data Part 3:




Automatic Transmission - Service Data Part 4:

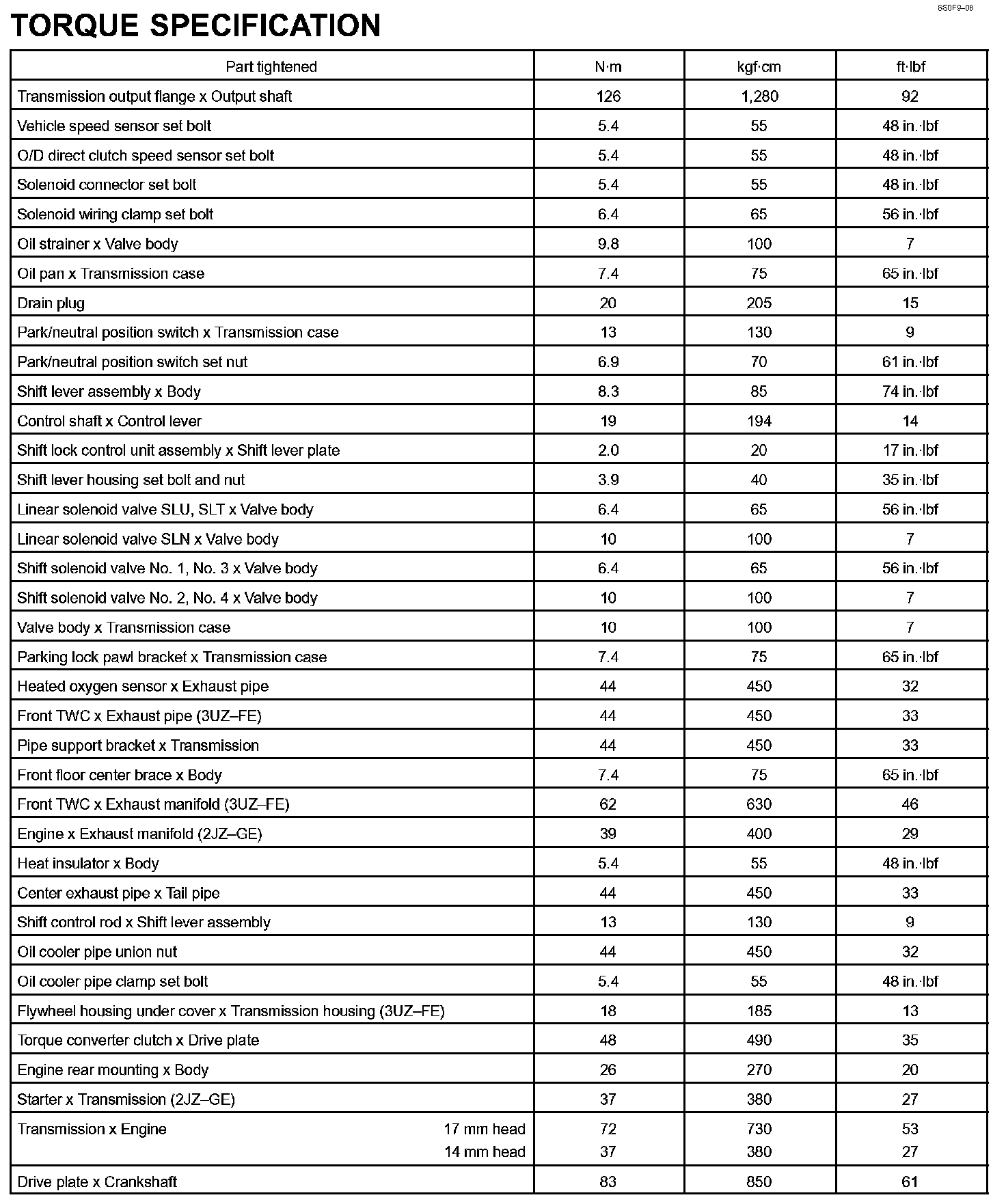

Automatic Transmission - Torque Specification:
