How To Proceed With Troubleshooting

HINT:

This ECU is connected to the multiplex communication system. Therefore, be sure to check that there is no troubles in the multiplex communication system before performing the troubleshooting.

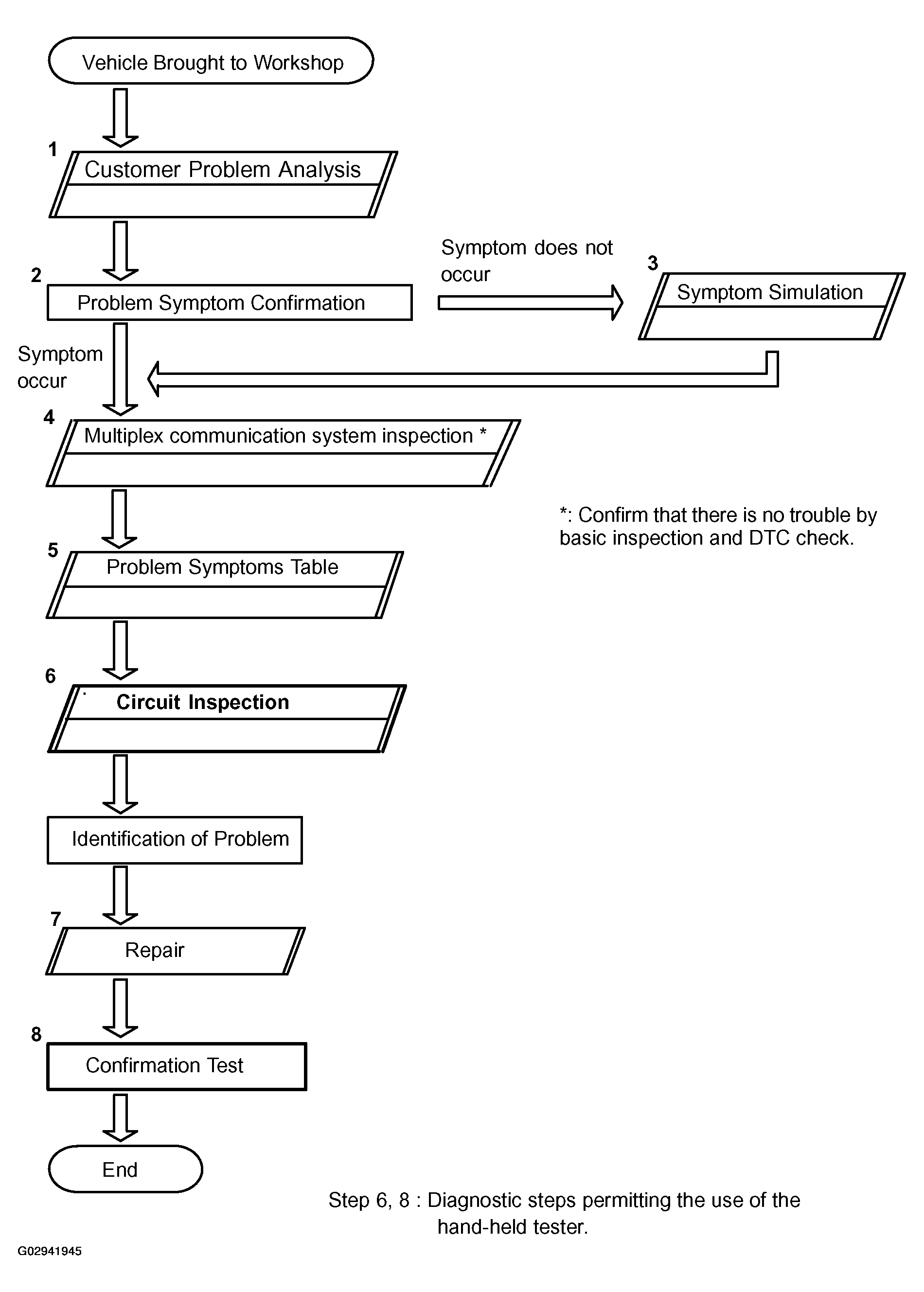

Fig 1: Troubleshooting Flow Diagram
G02941945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
