Terminals Of Ecu

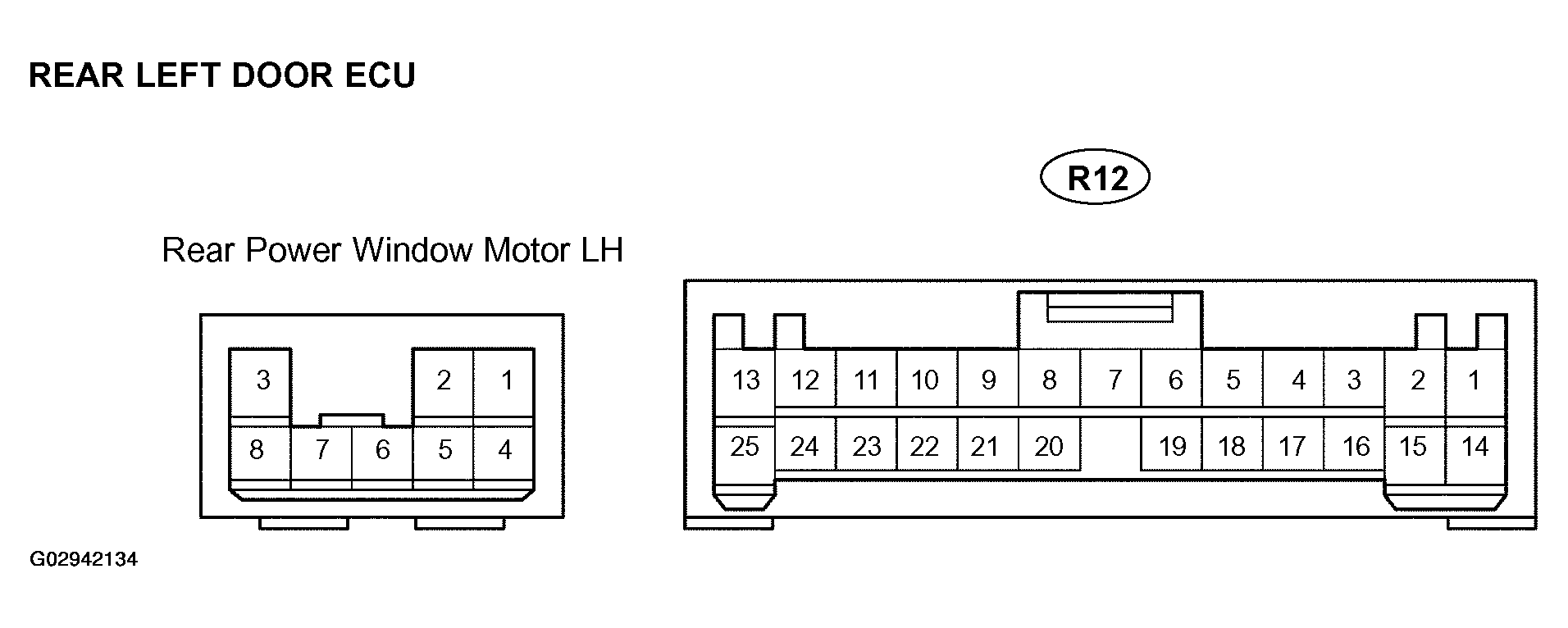

Fig 1: Identifying ECU Connector Terminals
G02942134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

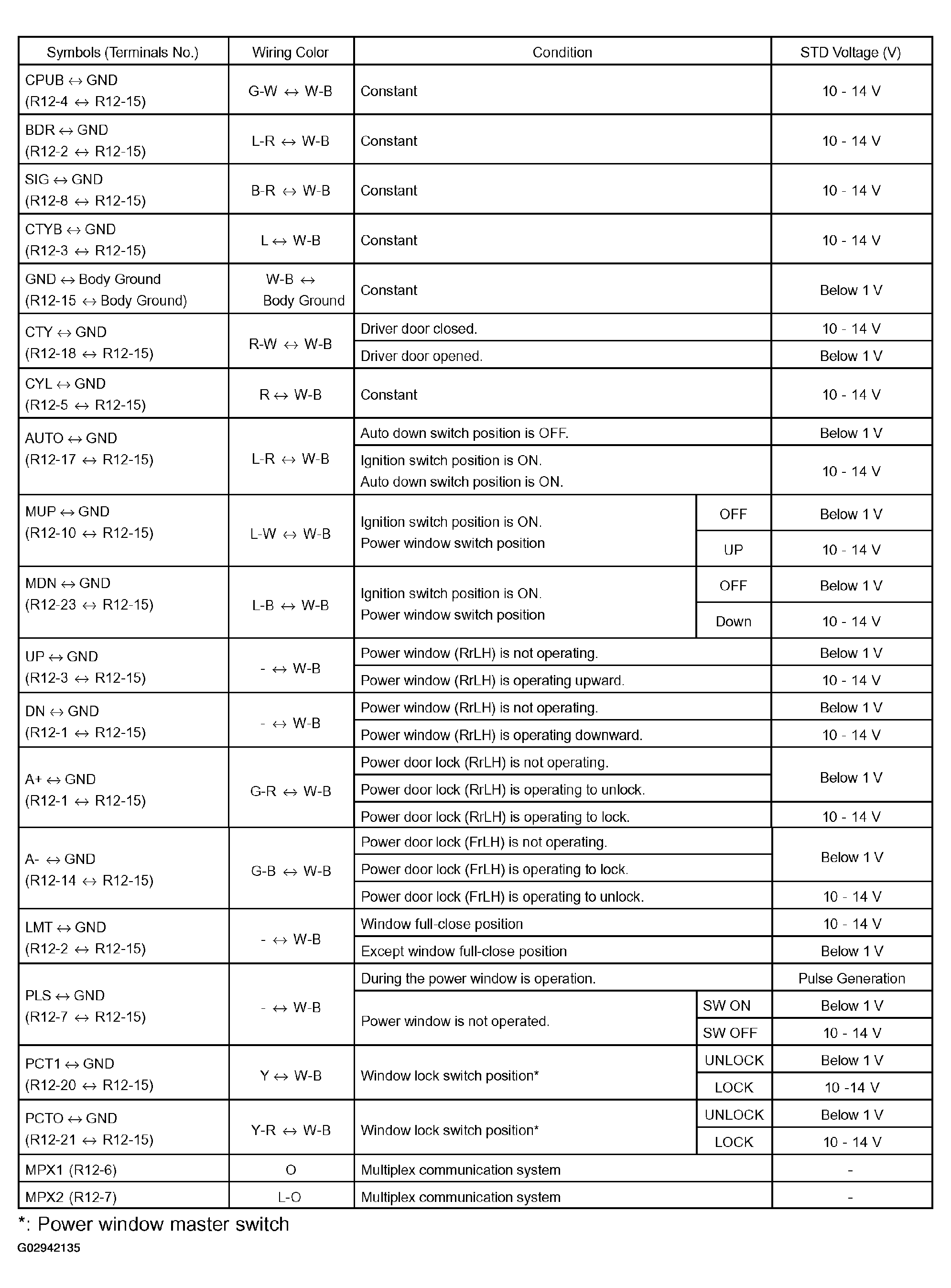

Fig 2: ECU Terminals Chart
G02942135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
