Service Data

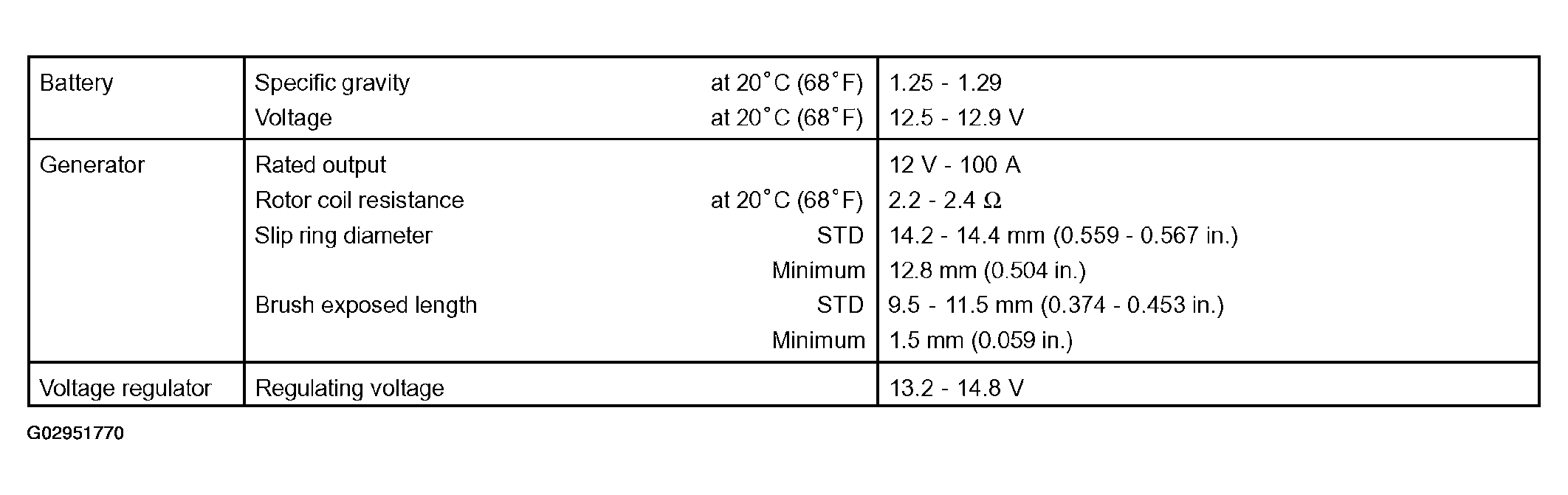

Fig 1: Charging System Service Specification Chart (3UZ-FE)
G02951770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
