Diagnostic Trouble Code Table

If a malfunction code is indicated during the DTC check, check the circuit listed for that code in Fig 1, and proceed to the appropriate (DTC No.).

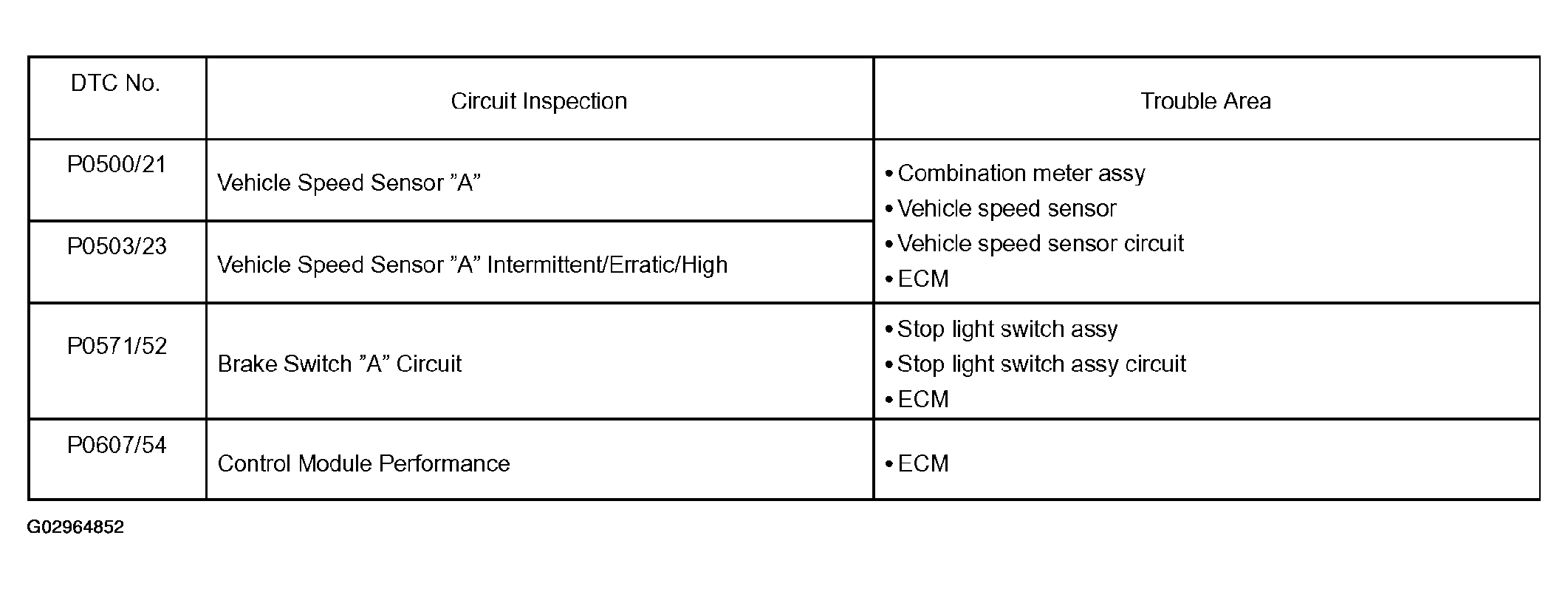

Fig 1: Diagnostic Trouble Code Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
