Front Power Seat Control System: Location

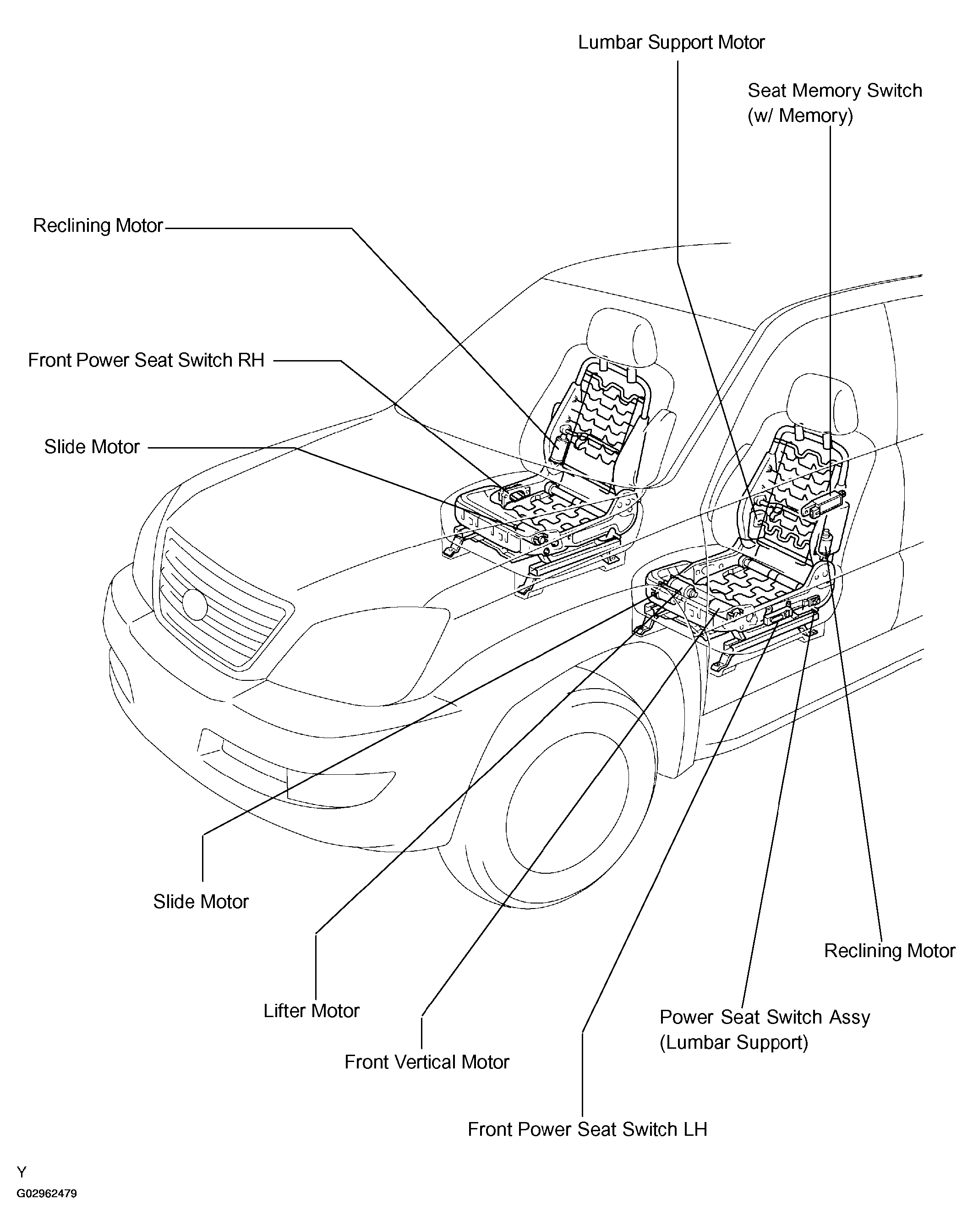

Fig 1: Locating Front Power Seat Control System Components & Replacements
G02962479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
