Section 11 (Wireless Door Lock Control System - Diagnostics): Pre-Check

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

Wireless function (Remote control) does not operate.

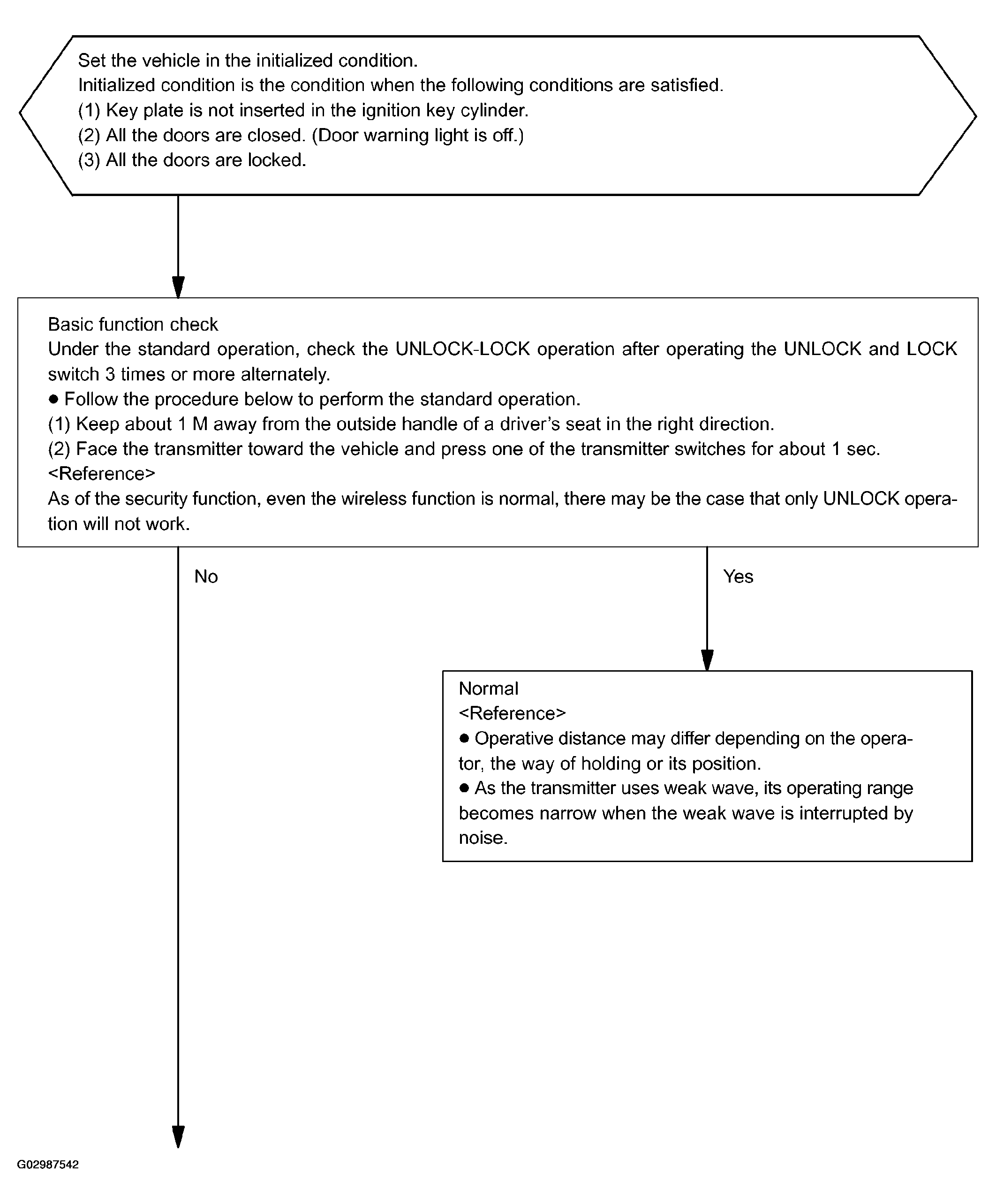

Fig 1: Wireless Function (Remote Control) - Pre-Check Flow Chart (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

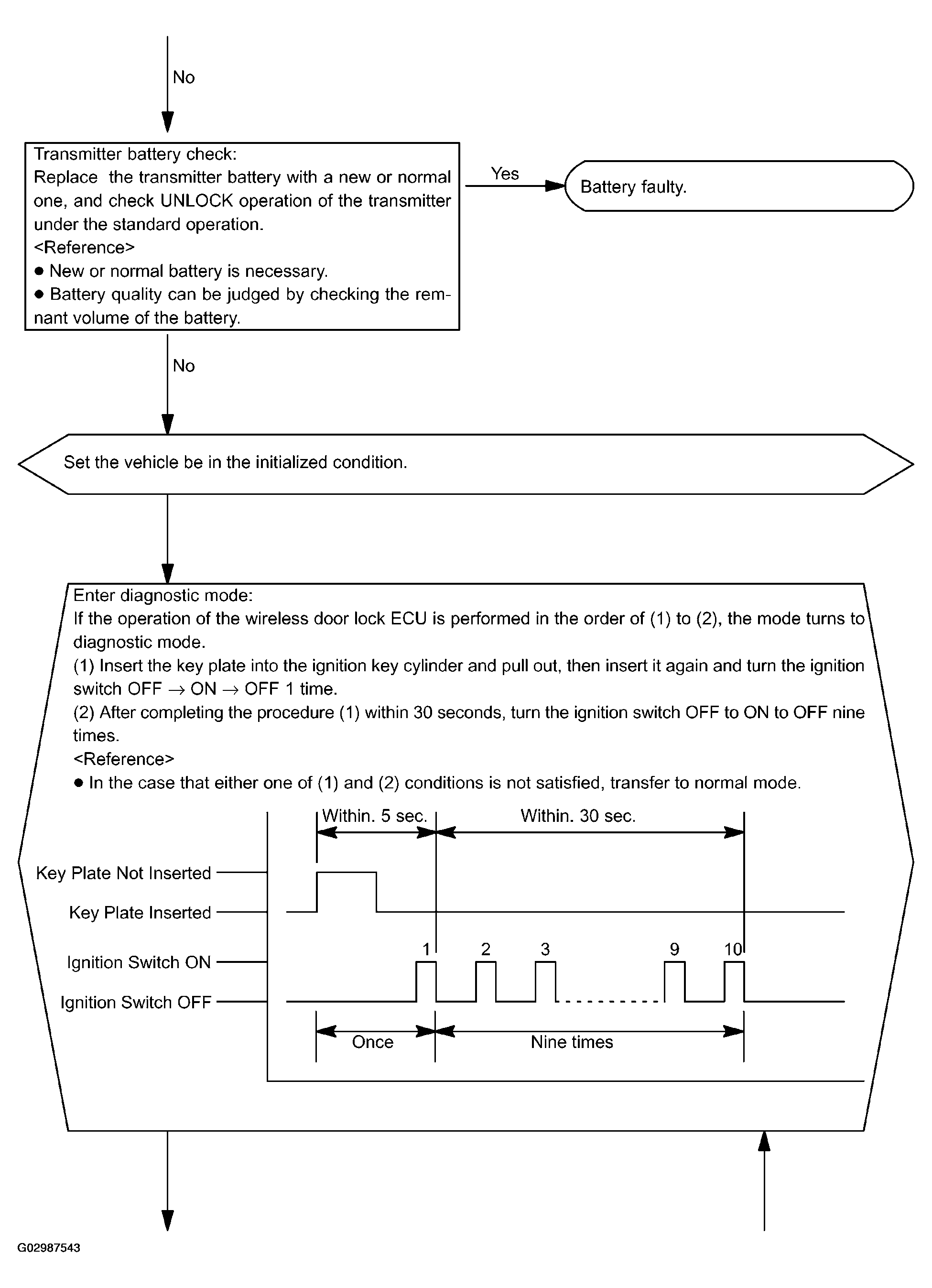

Fig 2: Wireless Function (Remote Control) - Pre-Check Flow Chart (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

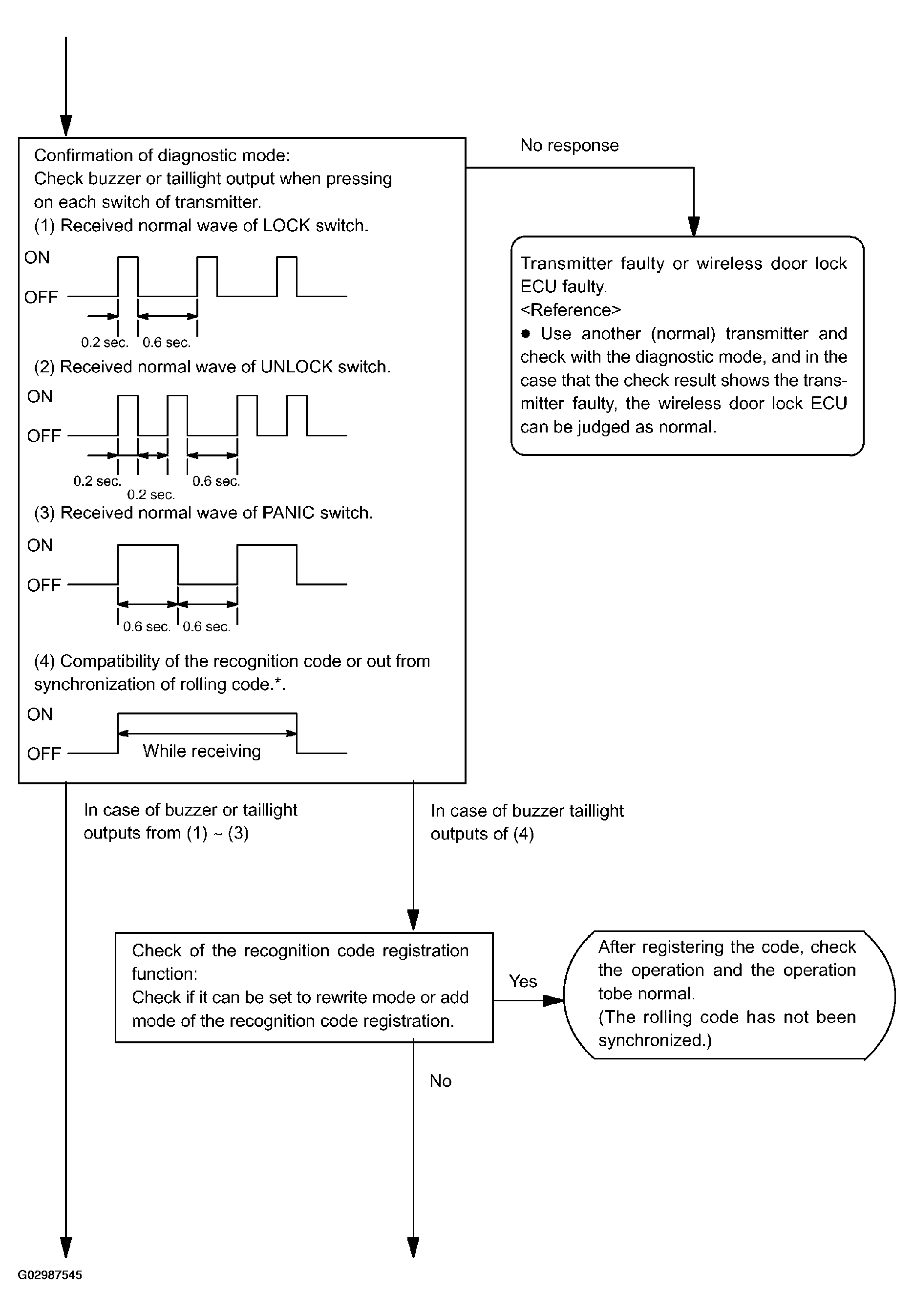

Fig 3: Wireless Function (Remote Control) - Pre-Check Flow Chart (3 Of 5)

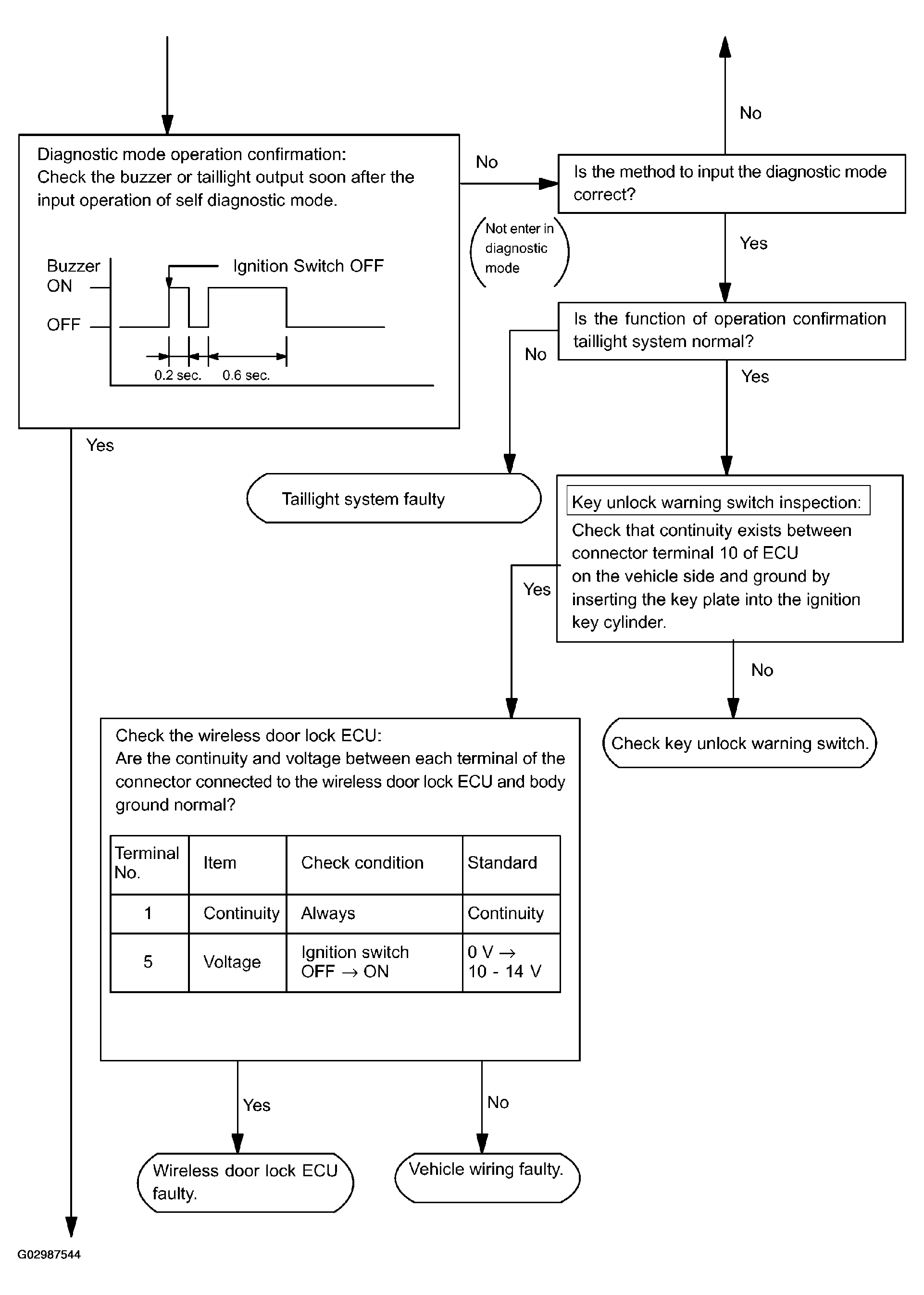

Fig 4: Wireless Function (Remote Control) - Pre-Check Flow Chart (4 Of 5)

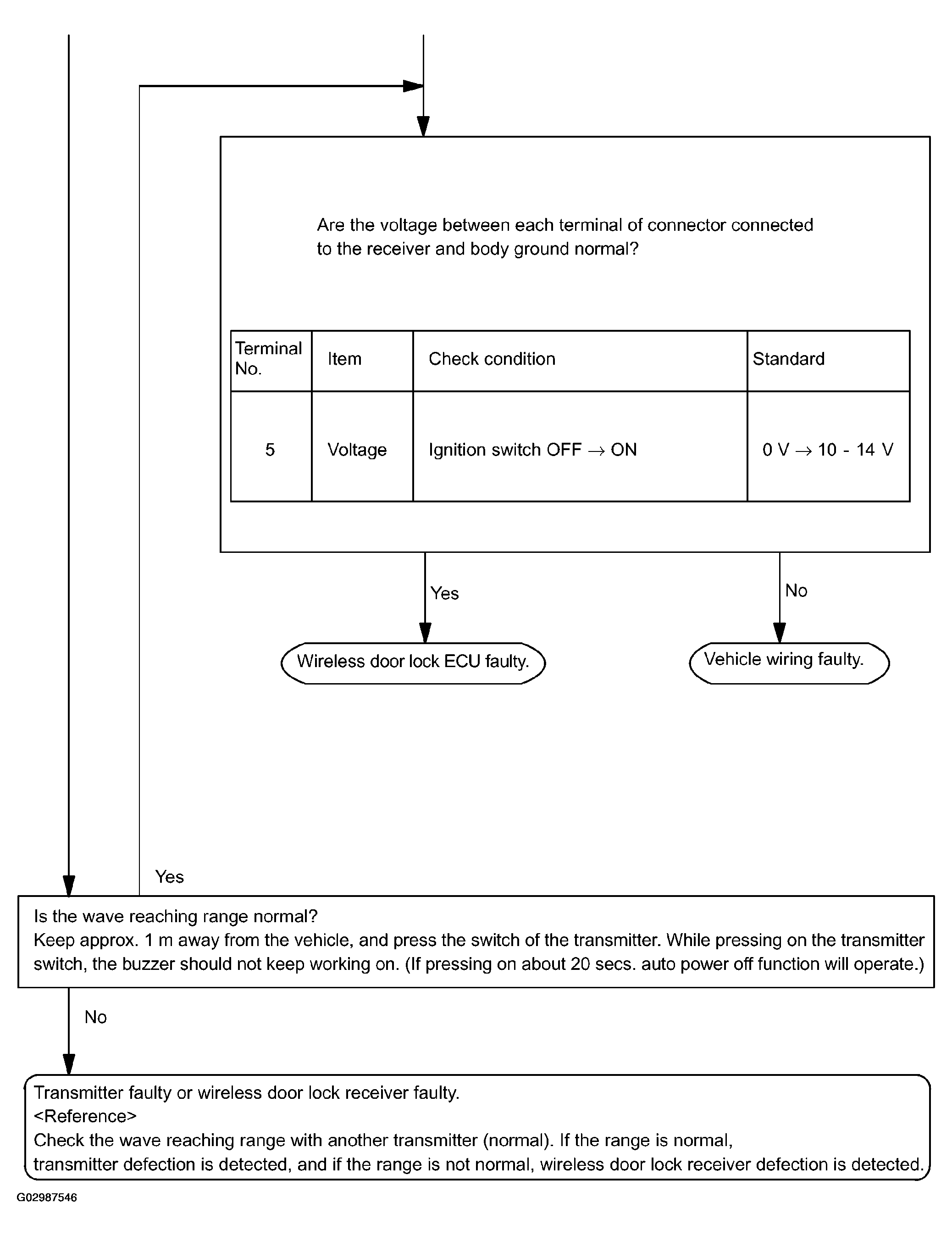

Fig 5: Wireless Function (Remote Control) - Pre-Check Flow Chart (5 Of 5)
