Diagnostic Trouble Code Chart
WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
If a malfunction code is displayed during DTC check, check the circuit corresponding to the code in the table below.

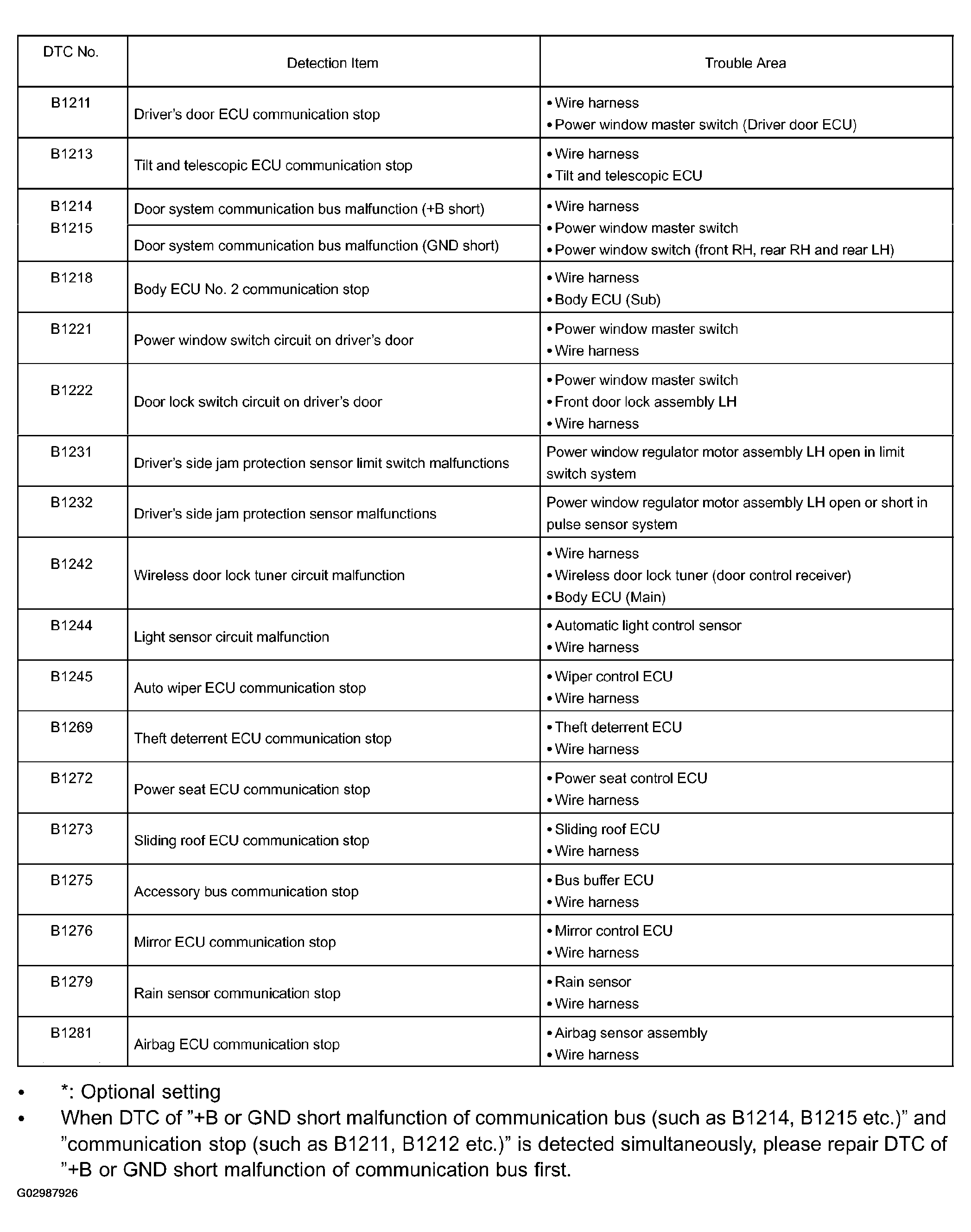

DIAGNOSTIC TROUBLE CODE CHART
| DTC | Description |
|---|---|
| DTC B1211 | Driver door ECU communication stop |
| DTC B1213 | Tilt and Telescopic ECU communication stop |
| DTC B1214, B1215 | Door system communication bus malfunction (+B short)/(GND short) |
| DTC B1218 | Body ECU No. 2 communication stop |
| DTC B1245 | Auto wiper ECU communication stop |
| DTC B1269 | Theft deterrent ECU communication stop |
| DTC B1272 | Power seat ECU communication stop |
| DTC B1273 | Sliding roof control ECU communication stop (w/ Sliding roof vehicle only) |
| DTC B1275 | Accessory Bus Buffer communication stop |
| DTC B1276 | Mirror ECU communication stop |
| DTC B1279 | Rain sensor communication stop |
| DTC B1281 | Airbag ECU communication stop |
