Section 46 (Combination Meter): Circuit

WARNING: This page is about a different car, the 2005 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

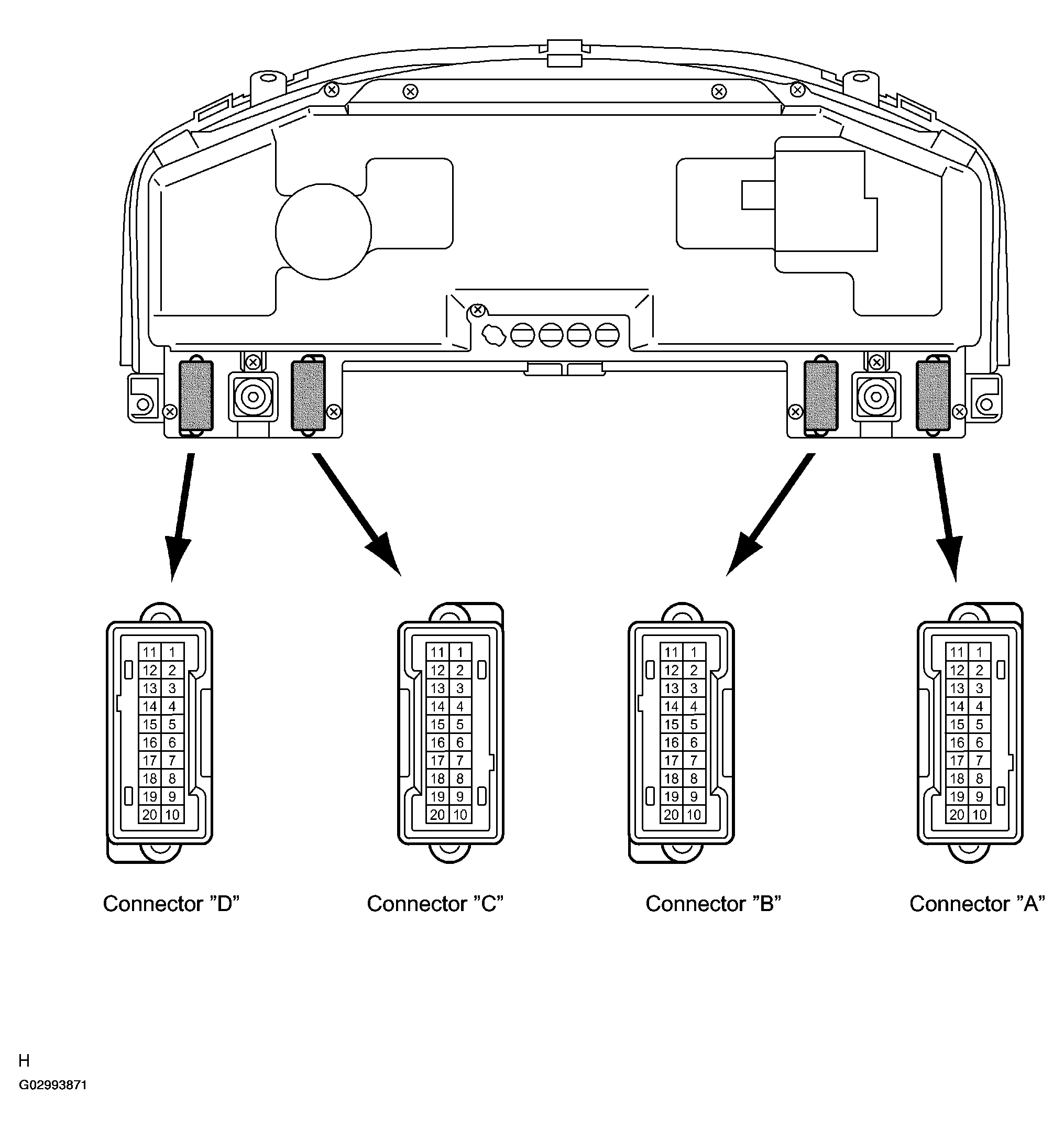

Fig 1: Identifying Combination Meter Connectors
G02993871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

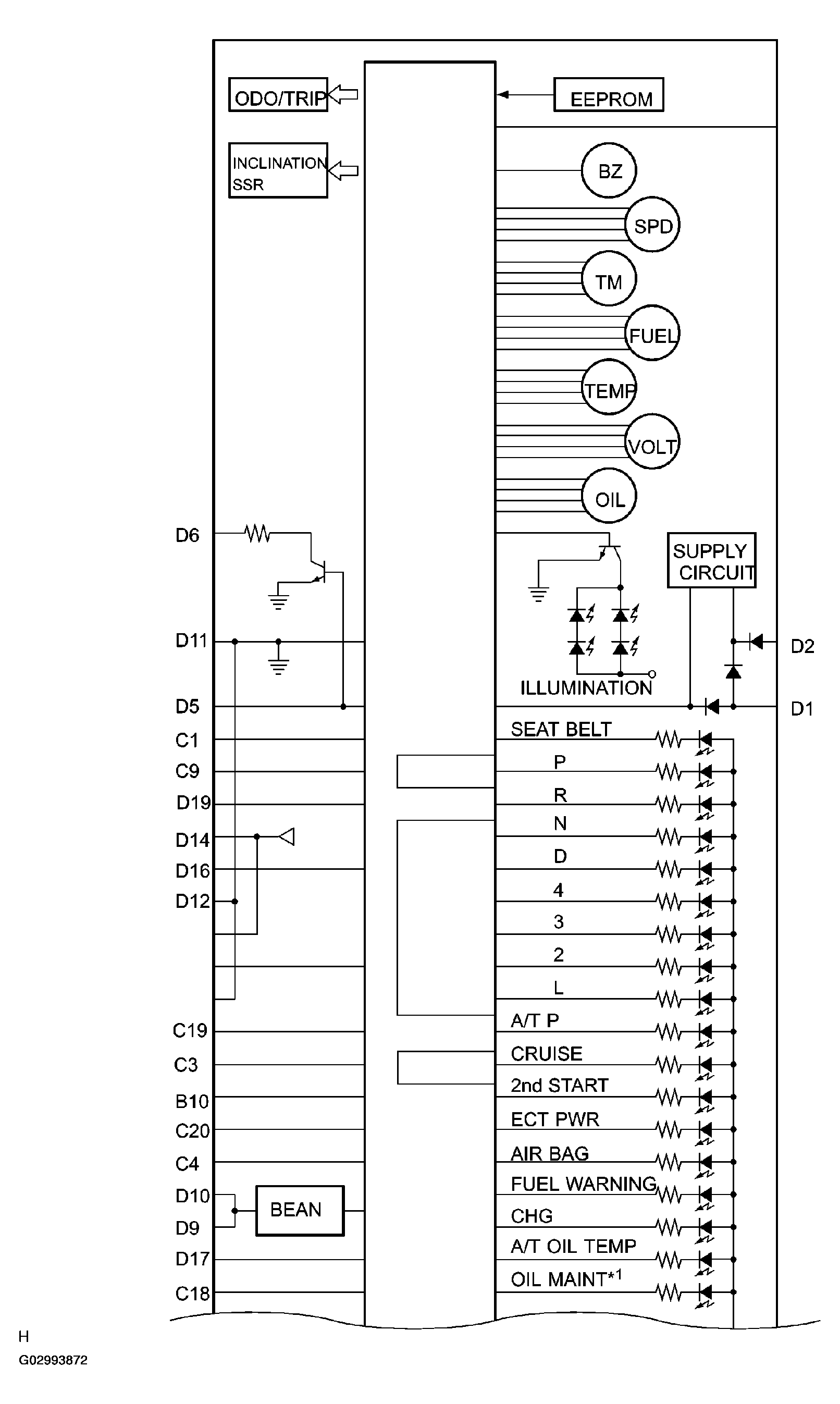

Fig 2: Identifying Combination Meter Wiring Diagram (1 Of 2)
G02993872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

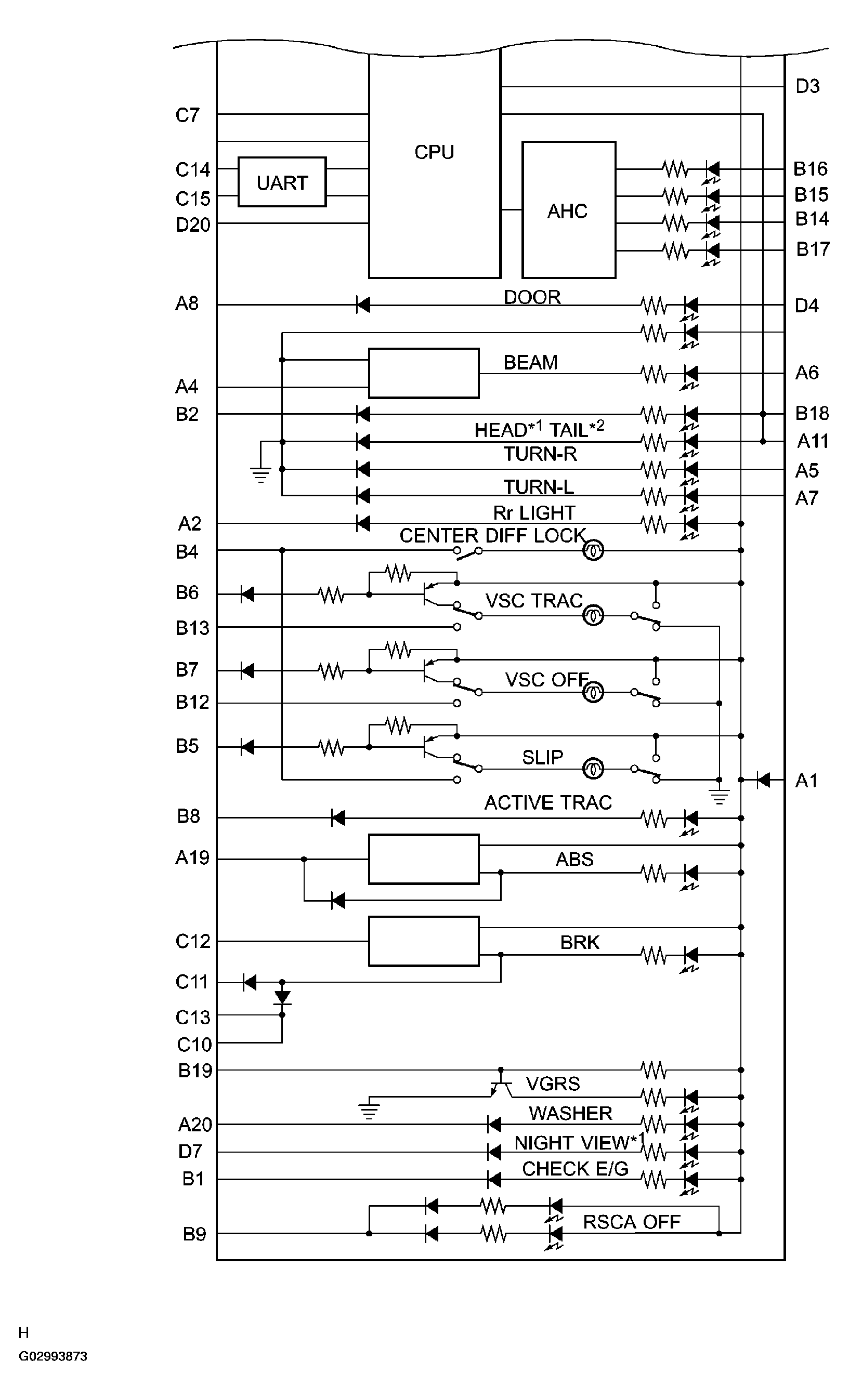

Fig 3: Identifying Combination Meter Wiring Diagram (2 Of 2)
G02993873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

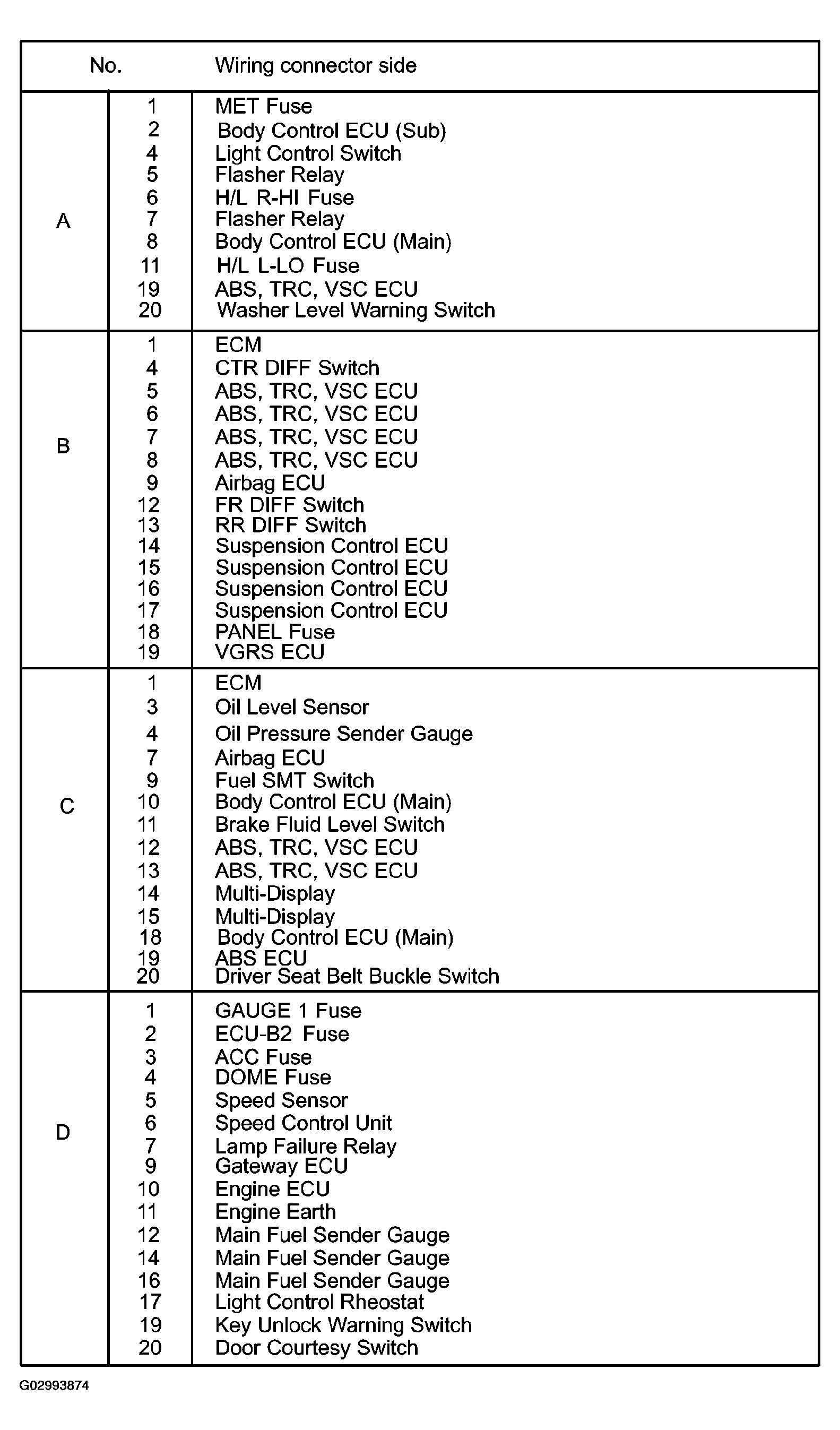

Fig 4: Identifying Combination Meter Connector Terminal Usage
G02993874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
