Engine Immobilizer System: Location

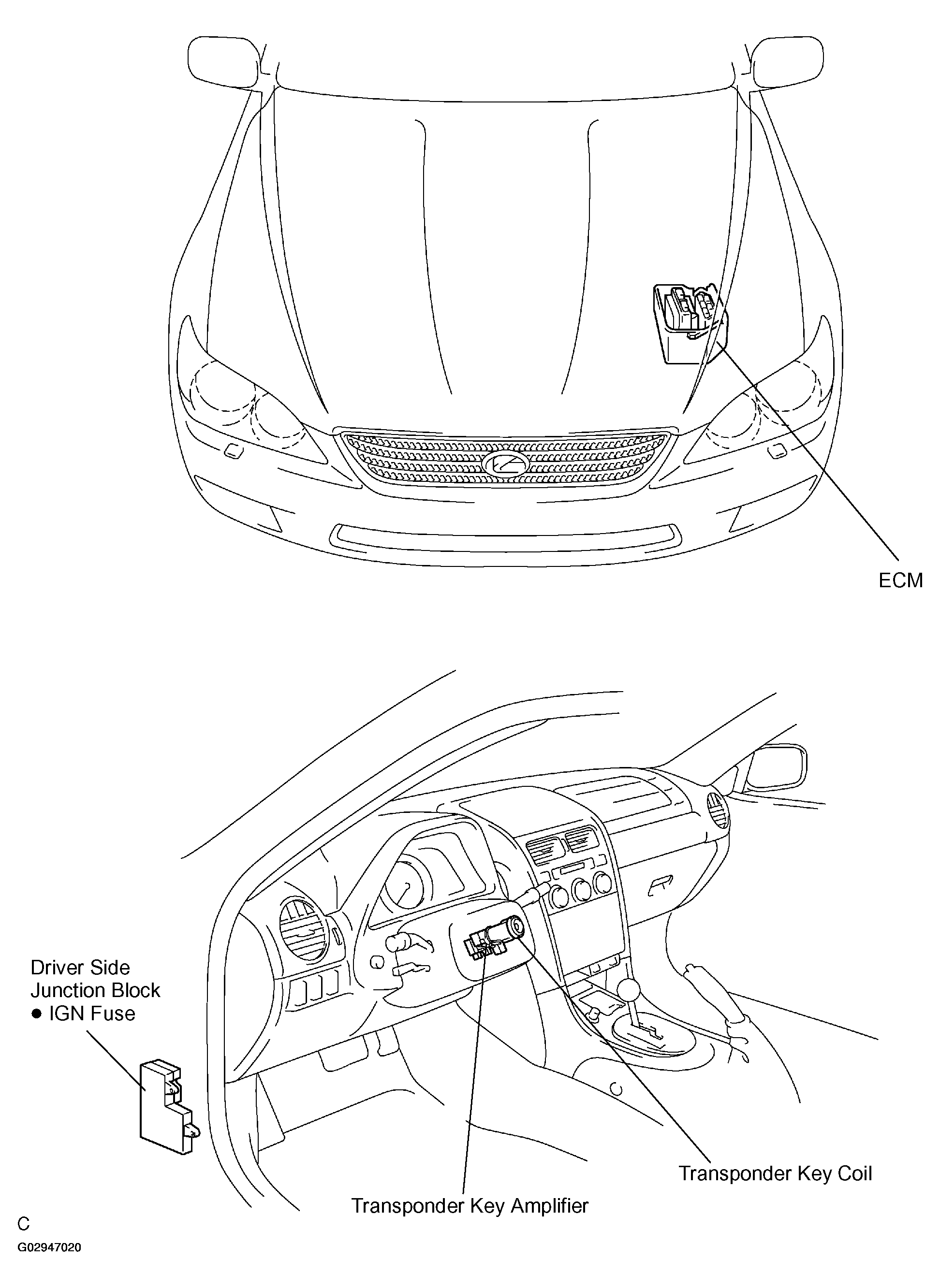

Fig 1: Identifying Engine Immobilizer System Components And Replacements Location
G02947020Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
