Typical Enabling Conditions

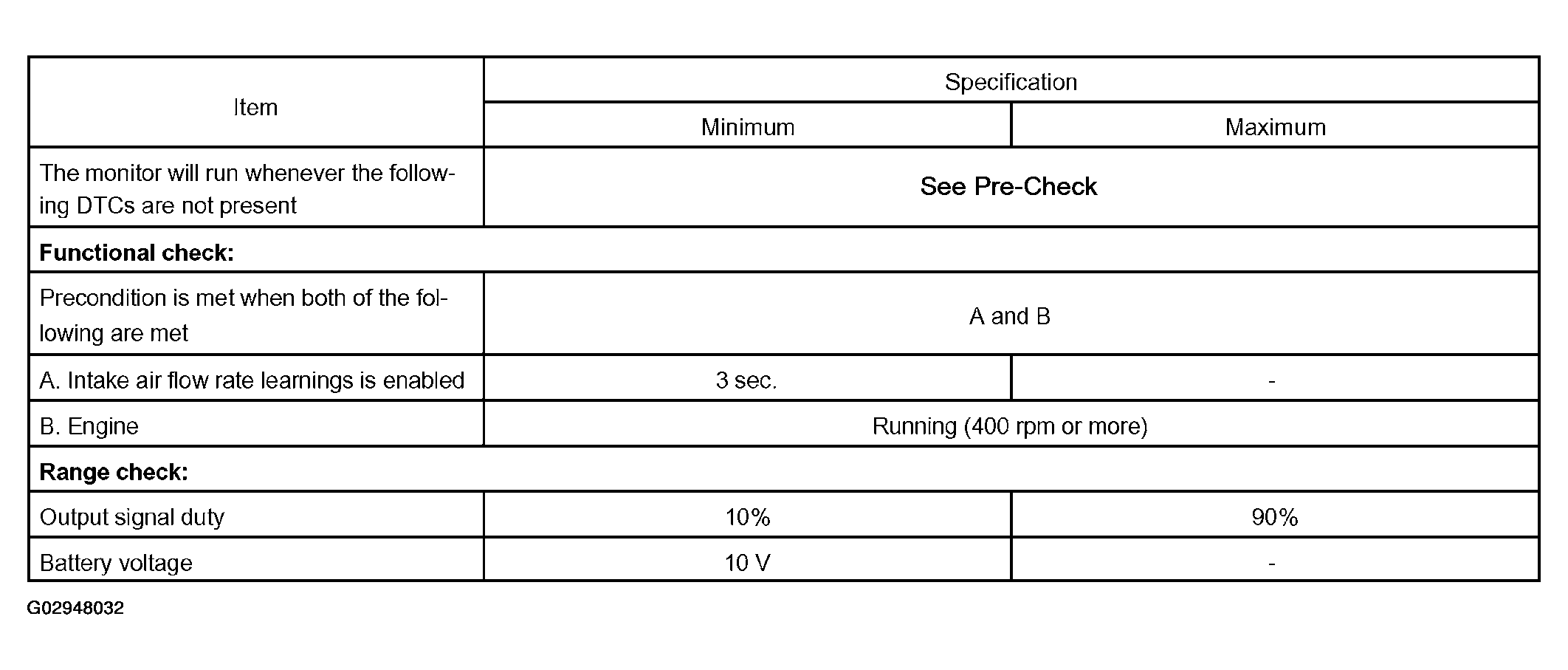

Fig 1: DTC P0505 Typical Enabling Conditions
G02948032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
