Terminals Of ECM

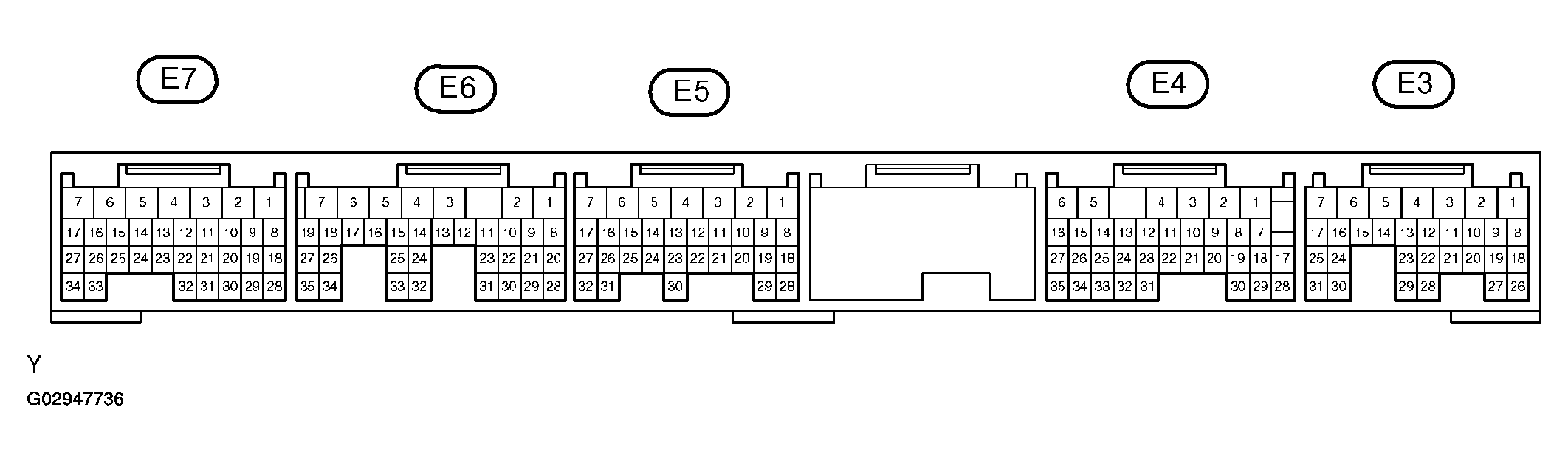

Fig 1: Identifying Terminals Of ECU
G02947736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

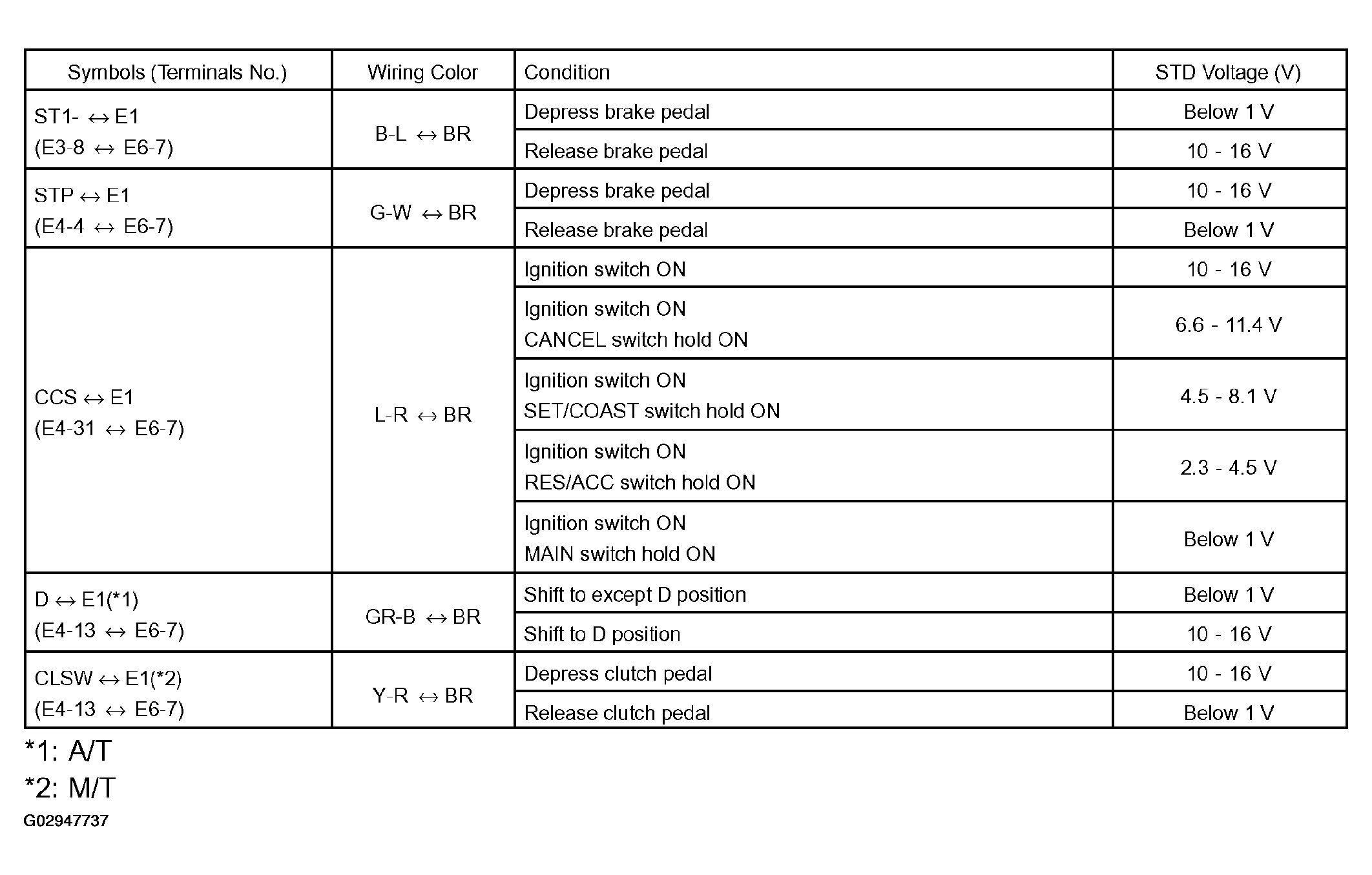

Fig 2: Terminals Of ECU Chart
G02947737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
