Seat Belt (Wagon): Components

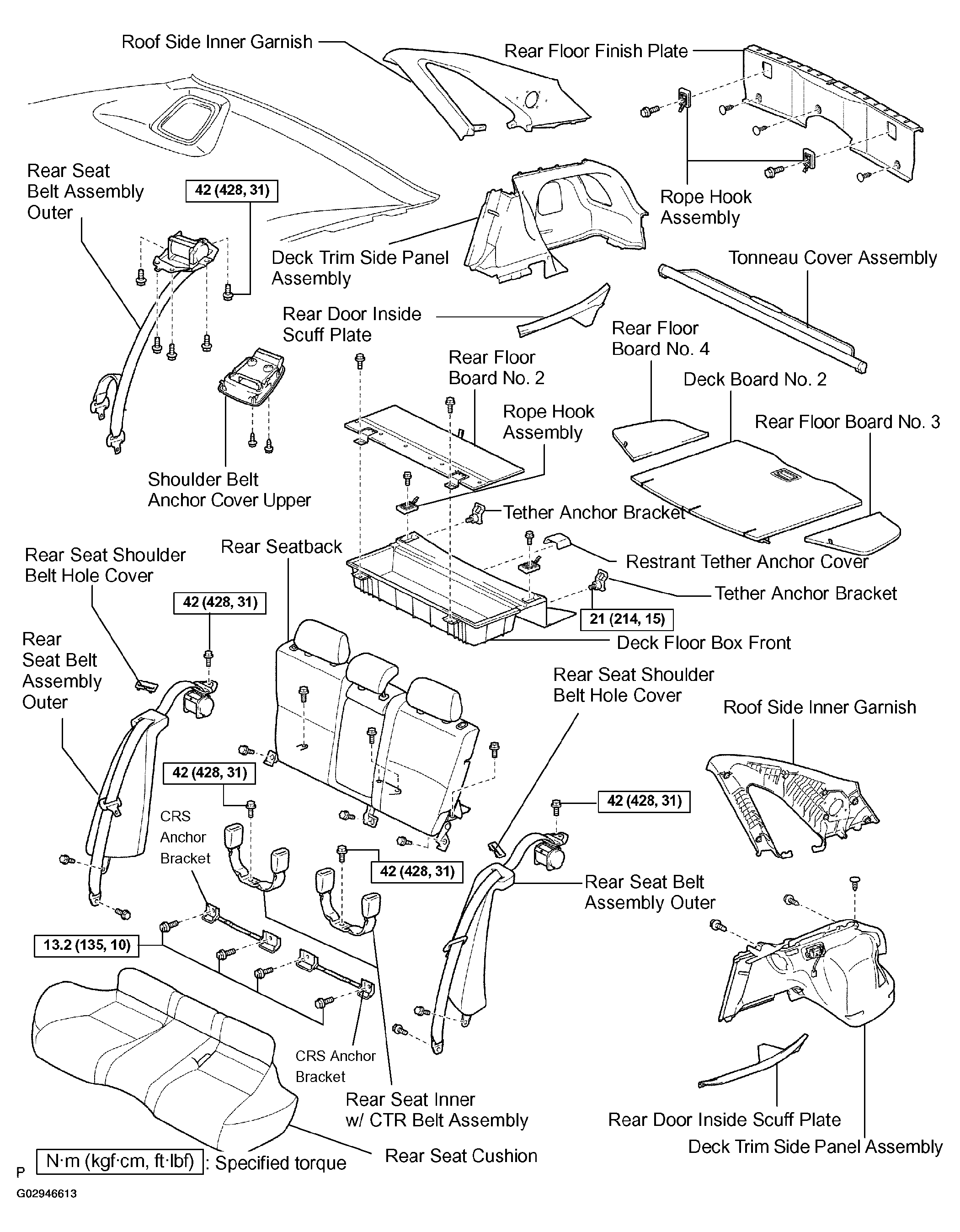

Fig 1: Identifying Component Location Of Seat Belt (Wagon)
G02946613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
