Distance Control ECU Communication Stop Mode

DISTANCE CONTROL ECU COMMUNICATION STOP MODE

Detection Item:




MODE DESCRIPTION

NOTE: This is not applicable to a vehicle without a dynamic radar/laser cruise control system.

Wiring Diagram:

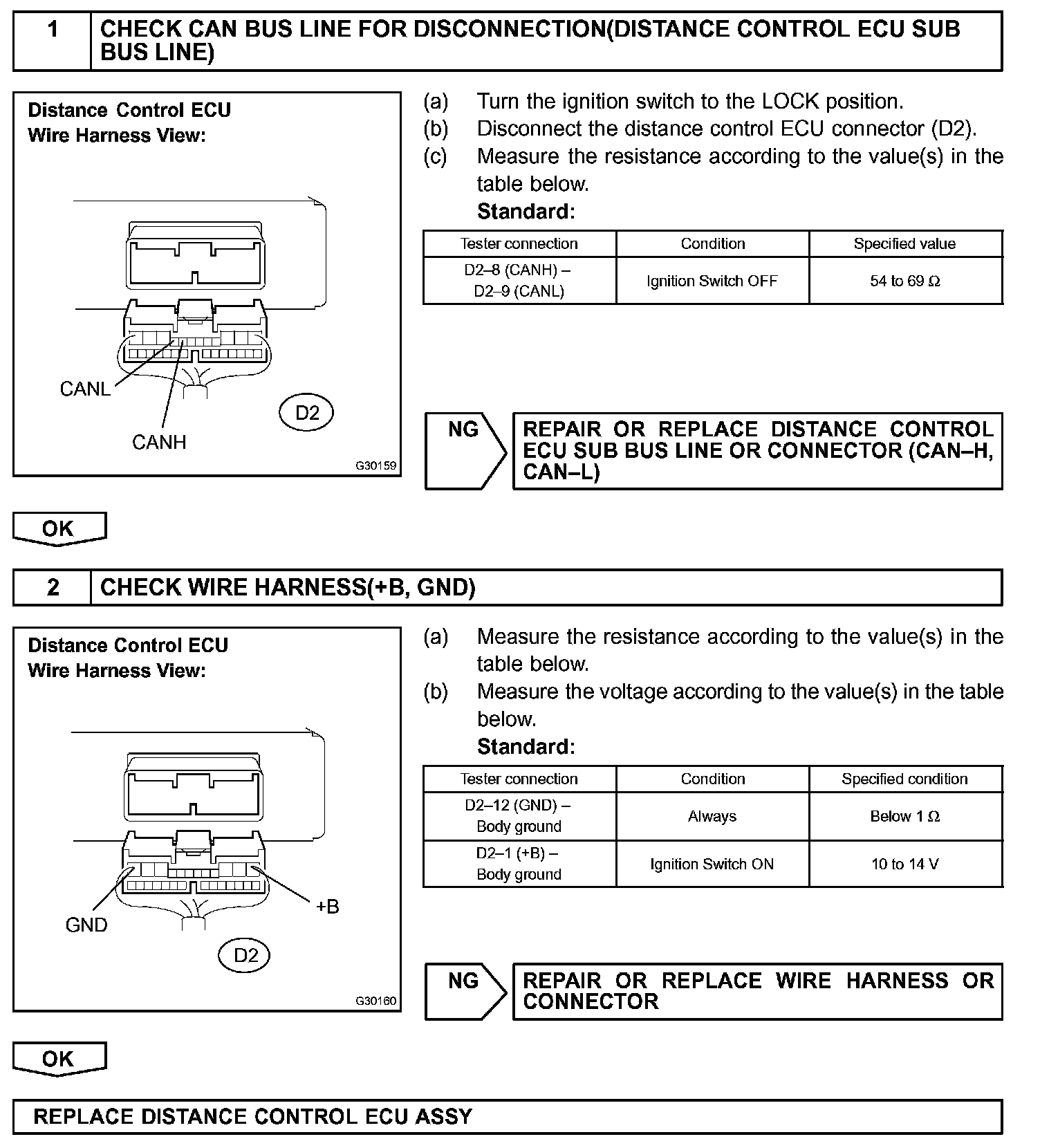

Step 1 - 2:




INSPECTION PROCEDURE
