System Specifications

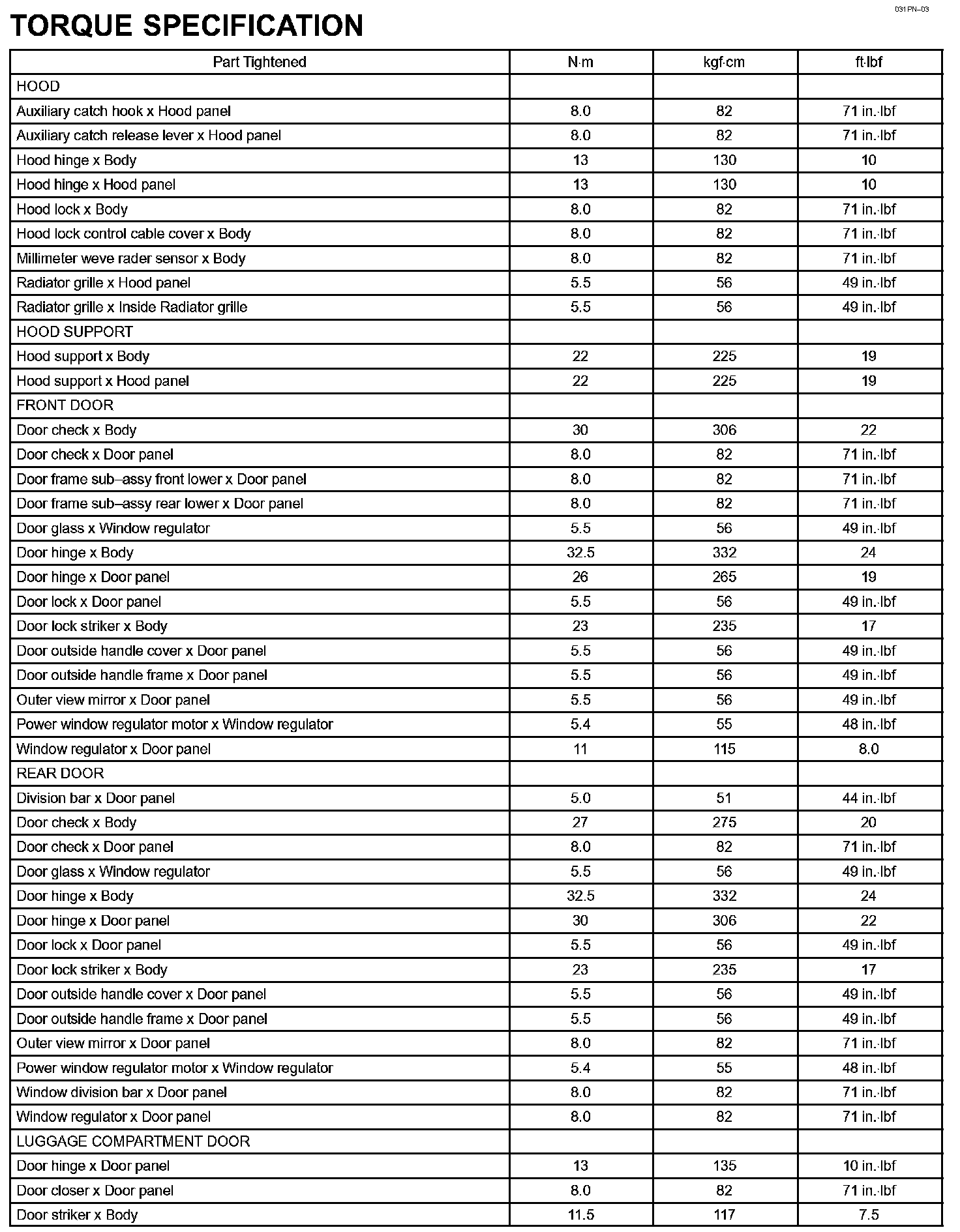

Engine Hood / Door - Torque Specification Part 1:



Engine Hood / Door - Torque Specification Part 2:



Exterior / Interior Trim - Torque Specification:
