Distance Control Ecu Power Source Circuit: Wiring Diagram

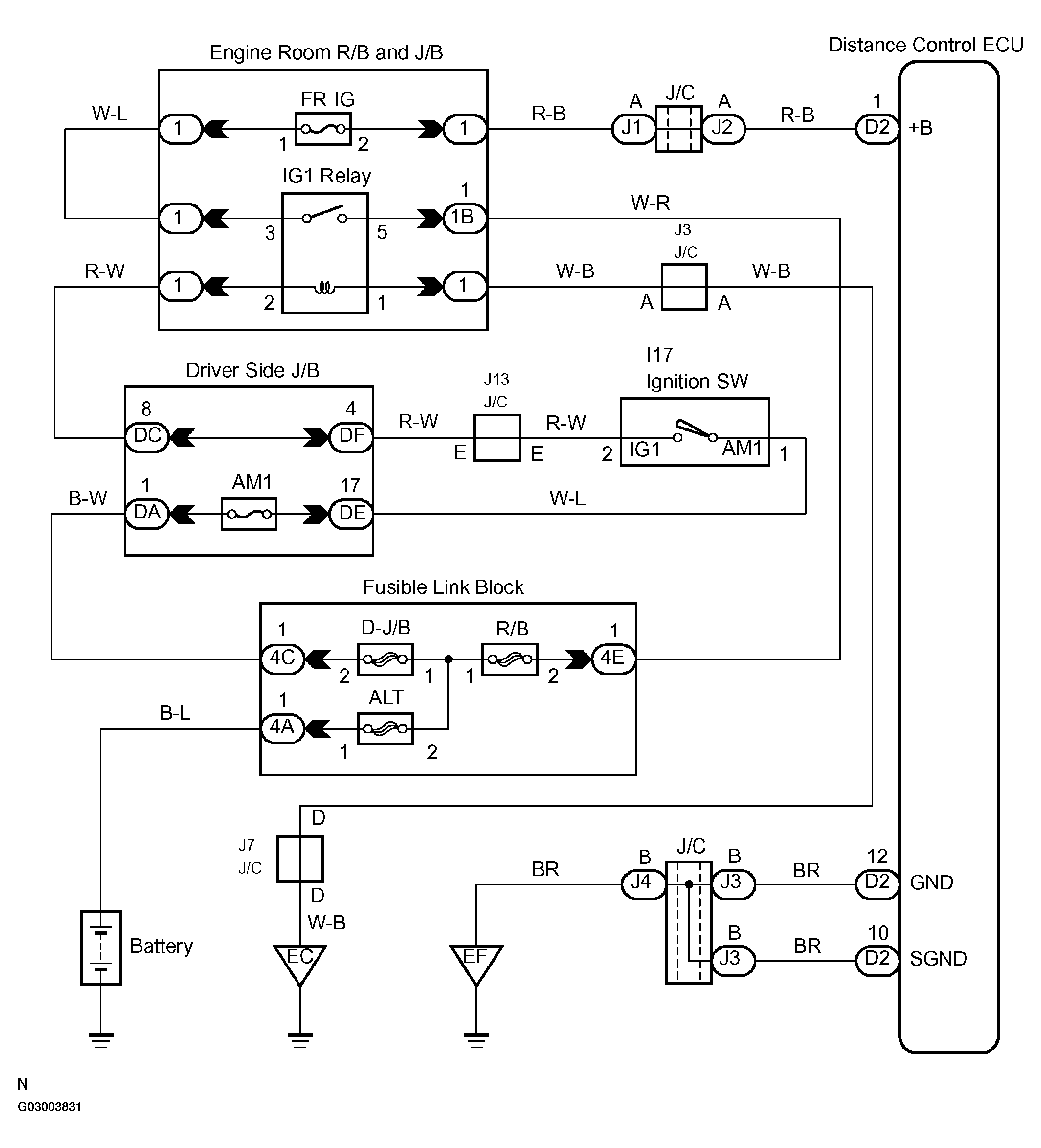

Fig 1: Wiring Diagram - Distance Control ECU Power Source Circuit
G03003831Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
