Operation Check

INPUT SIGNAL CHECK
1. Connect the hand-held tester to the DLC3.
2. Check the cruise control main switch using the DATA LIST function in the hand-held tester (ON-OFF, CANCEL, SET/COAST, RES/ACC, and MODE).
Fig 1: Identifying Cruise Control Main Switch
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECT MODE SWITCH
1. Turn the ignition switch to the ON position.
  HINT:

  Dynamic radar cruise system is in the default mode.
2. After pushing the ON-OFF button on, push the cruise control main switch to MODE for at least 1 second without any other control. Make sure that only "NORM." and nothing else is indicated on the display.
NOTE: When performing other operations (setting) after pushing the ON-OFF button on, the system cancels the constant speed control mode and cannot return to the mode again.

Fig 2: Inspecting Mode Switch
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

HINT:

If the system cannot switch to the constant speed control mode, push the ON-OFF button off once, and perform the same procedures as shown above. If a malfunction is still detected in the system, start the engine again and perform the above procedure.

Fig 3: [Display NORM]
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSPECT STEERING PAD SWITCH ASSY
1. Turn the ignition switch to the ON position.
2. Push on the ON-OFF button of the cruise control main switch.
3. Push on the distance control switch (DISP2) of the steering pad switch.
4. Check that the indication of vehicle-to-vehicle distance, which is shown in the multi-information display on the combination meter, changes from "LONG", "MIDDLE" to "SHORT" in that order.

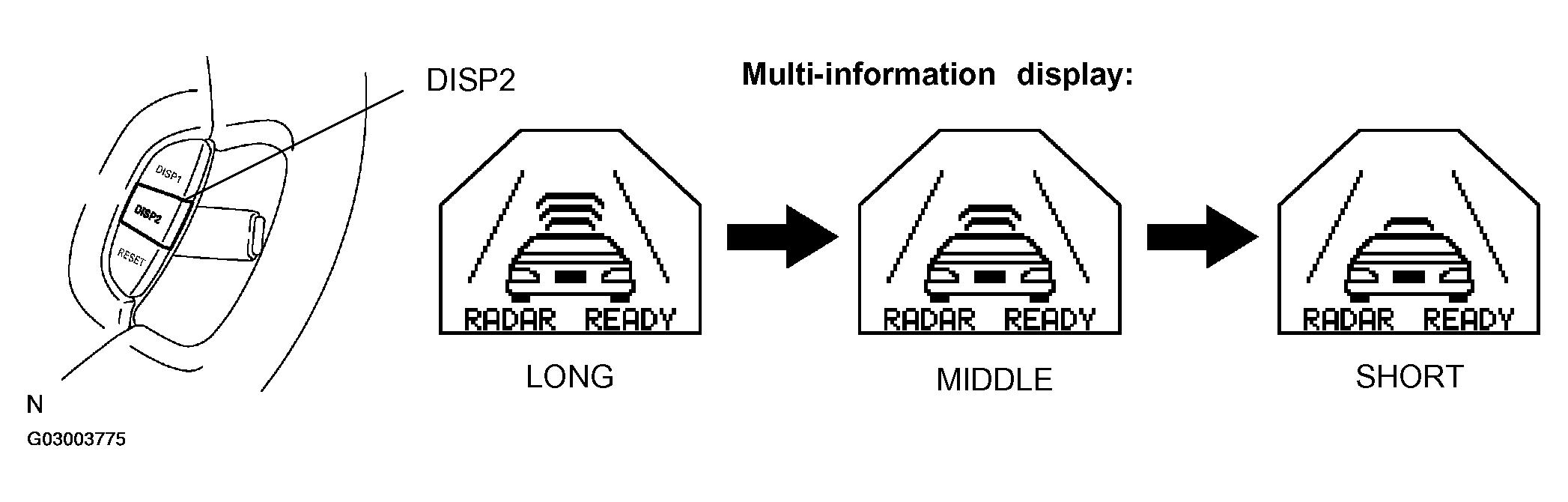

Fig 4: Multi-Information Display Chart On Combination Meter
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

HINT:

The indication is immediately set to "LONG" each time the engine is started.
