Height Control Sensor Sub-ASSY Rear LH: Replacement

REMOVE REAR WHEEL
REMOVE HEIGHT CONTROL SENSOR SUB-ASSY REAR LH
1. Disconnect the connector.
2. Remove the nut and disconnect the height control sensor link.

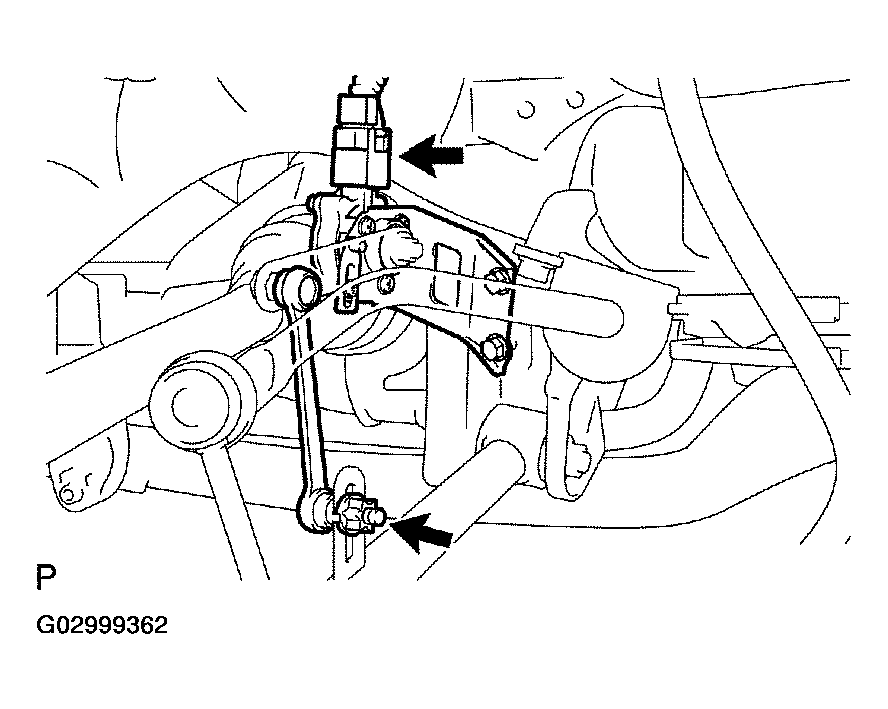

  Fig 1: Removing Height Control Sensor Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 nuts and the height control sensor sub-assy rear LH.

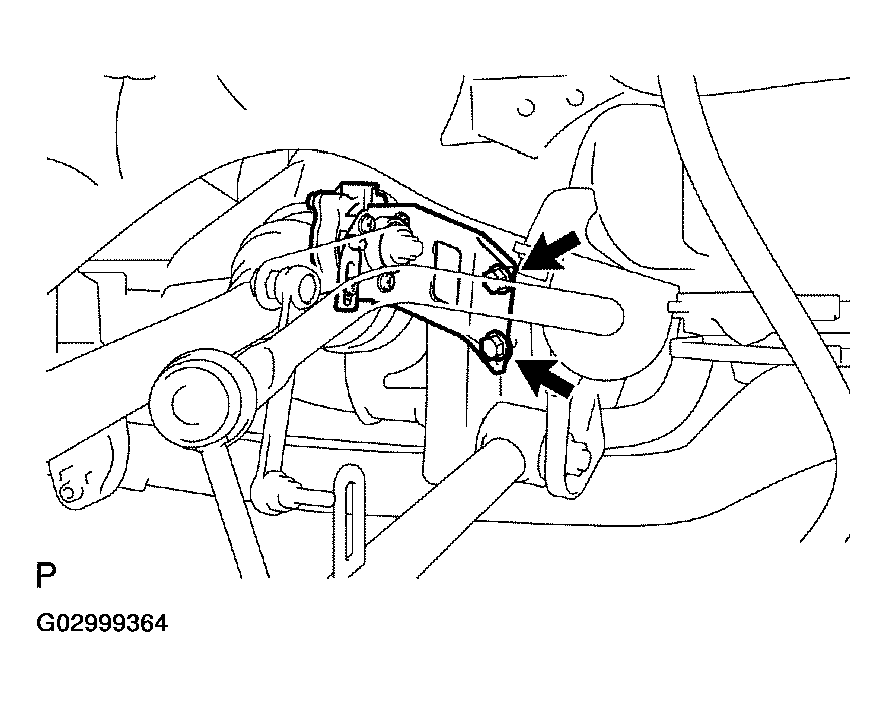

Fig 2: Identifying Height Control Sensor Sub-Assy Rear LH Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEIGHT CONTROL SENSOR SUB-ASSY REAR LH
1. Install the height control sensor sub-assy rear LH with the 2 nuts.

  Fig 3: Identifying Height Control Sensor Sub-Assy Rear LH Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the height control sensor link with the nut.
  1. Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
3. Connect the connector.
INSTALL REAR WHEEL
1. Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
HEADLIGHT AIM ONLY (See ADJUSTMENT )
