Inspection Procedure

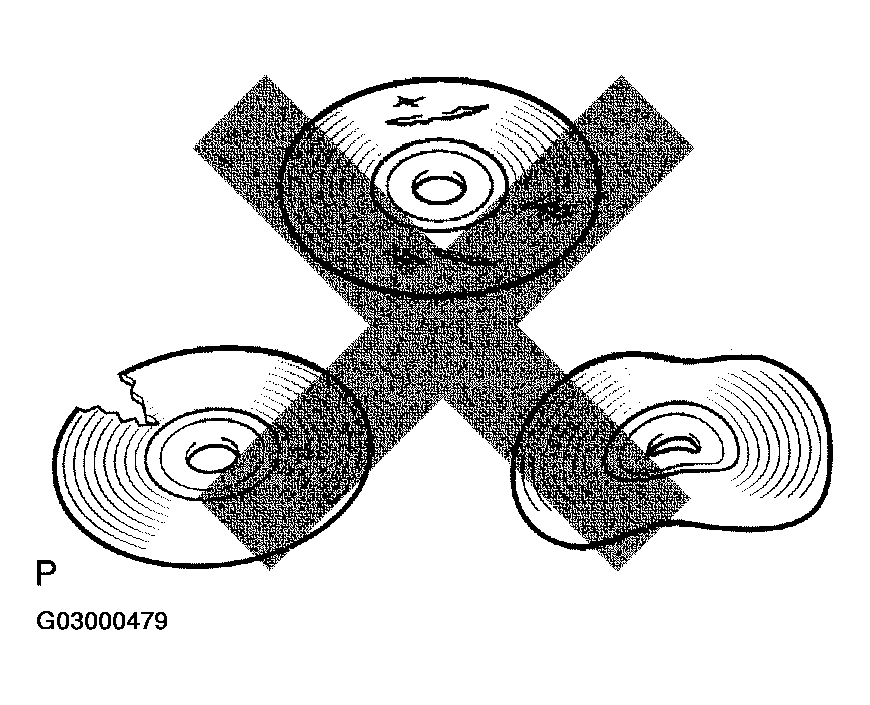

Fig 1: Checking MAP Disc

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the map disc is not deformed or cracked.

   OK: No deformations or cracks appear on the map disc.

NG: REPLACE THE MAP DISC

OK: GO TO NEXT STEP

1. Check that the "PUSH" indicator near the disc slot comes on.

   OK: It does not come on.

NG: PRESS THE EJECT SWITCH TO EJECT THE DISC

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
