Inspection Procedure

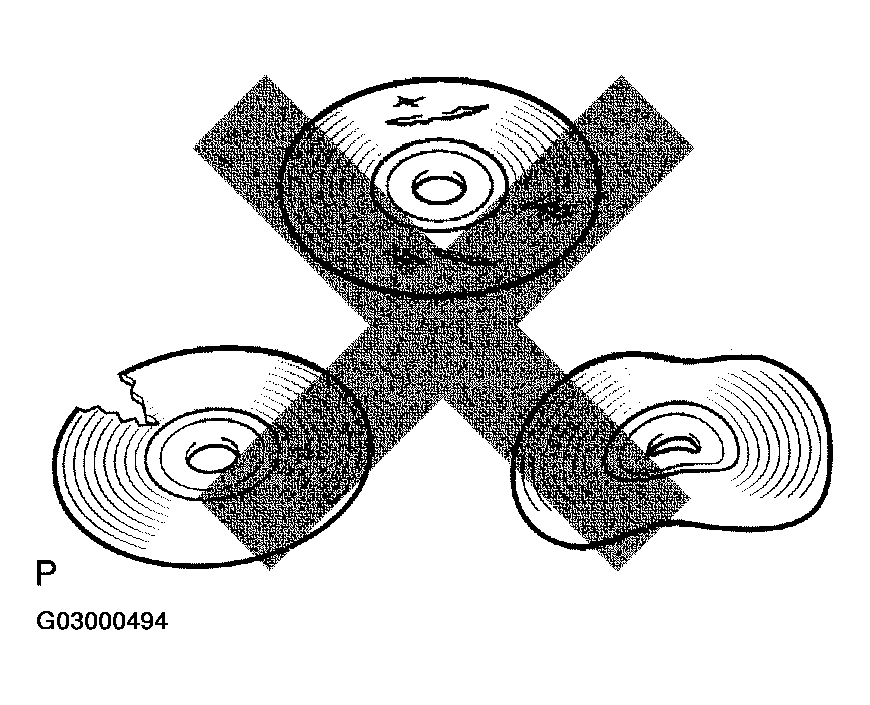

Fig 1: Identifying Map Disc Deformed Cracked

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the map disc is not deformed or cracked.

   OK: No deformations or cracks appear on the map disc.

NG: REPLACE THE MAP DISC

OK: GO TO NEXT STEP

1. Check that displays other than the navigation display are complete.

   OK: No other incomplete displays are found.

OK: REPLACE NAVIGATION ECU (SEE  REPLACEMENT  )

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
