Inspection Procedure

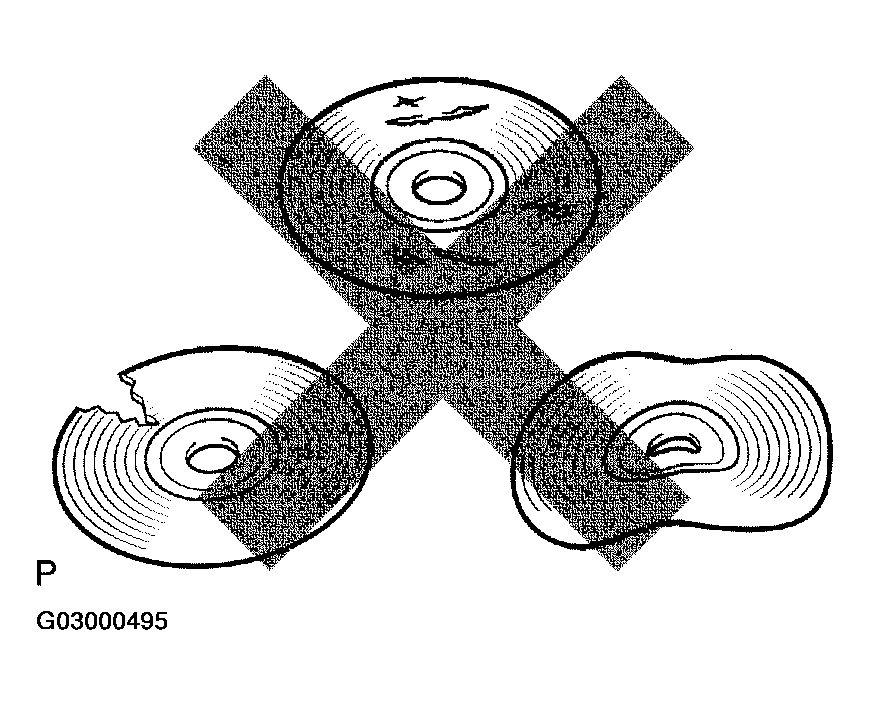

Fig 1: Checking Map Disc

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the map disc is not deformed or cracked.

   OK: No deformations or cracks appear on the map disc.

NG: REPLACE THE MAP DISC

OK: GO TO NEXT STEP

1. Set another destination and check if the system can calculate the route correctly.

   OK: Route can be correctly calculated.

OK: NORMAL OPERATION

NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
