Driver Side Junction Block

NOTE: Driver's side junction block is located at left side of instrument panel, see Fig 1.

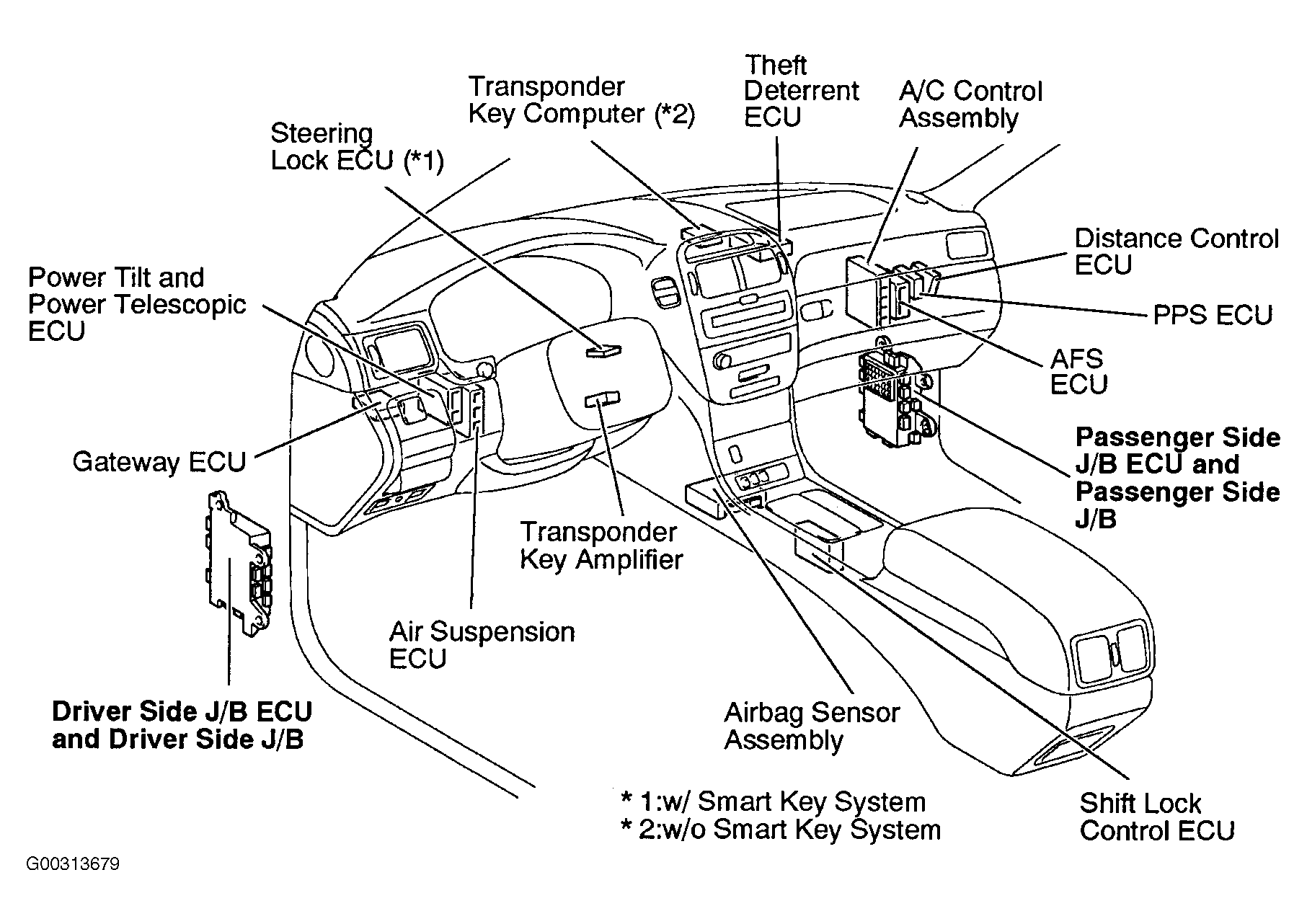

Fig 1: Locating Instrument Panel Junction & Relay Blocks
G00313679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

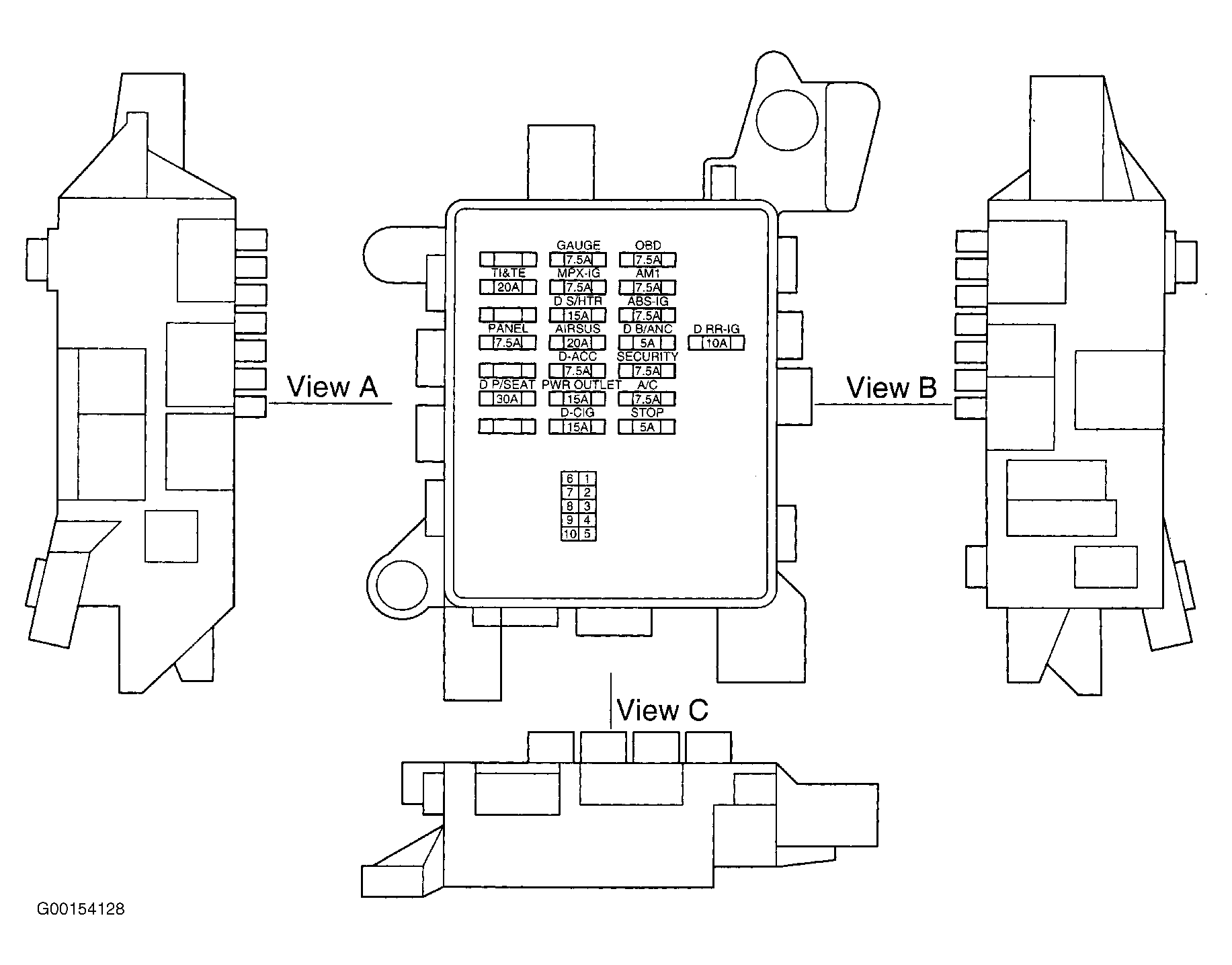

Fig 2: Identifying Driver Side Junction Block Fuses
G00154128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

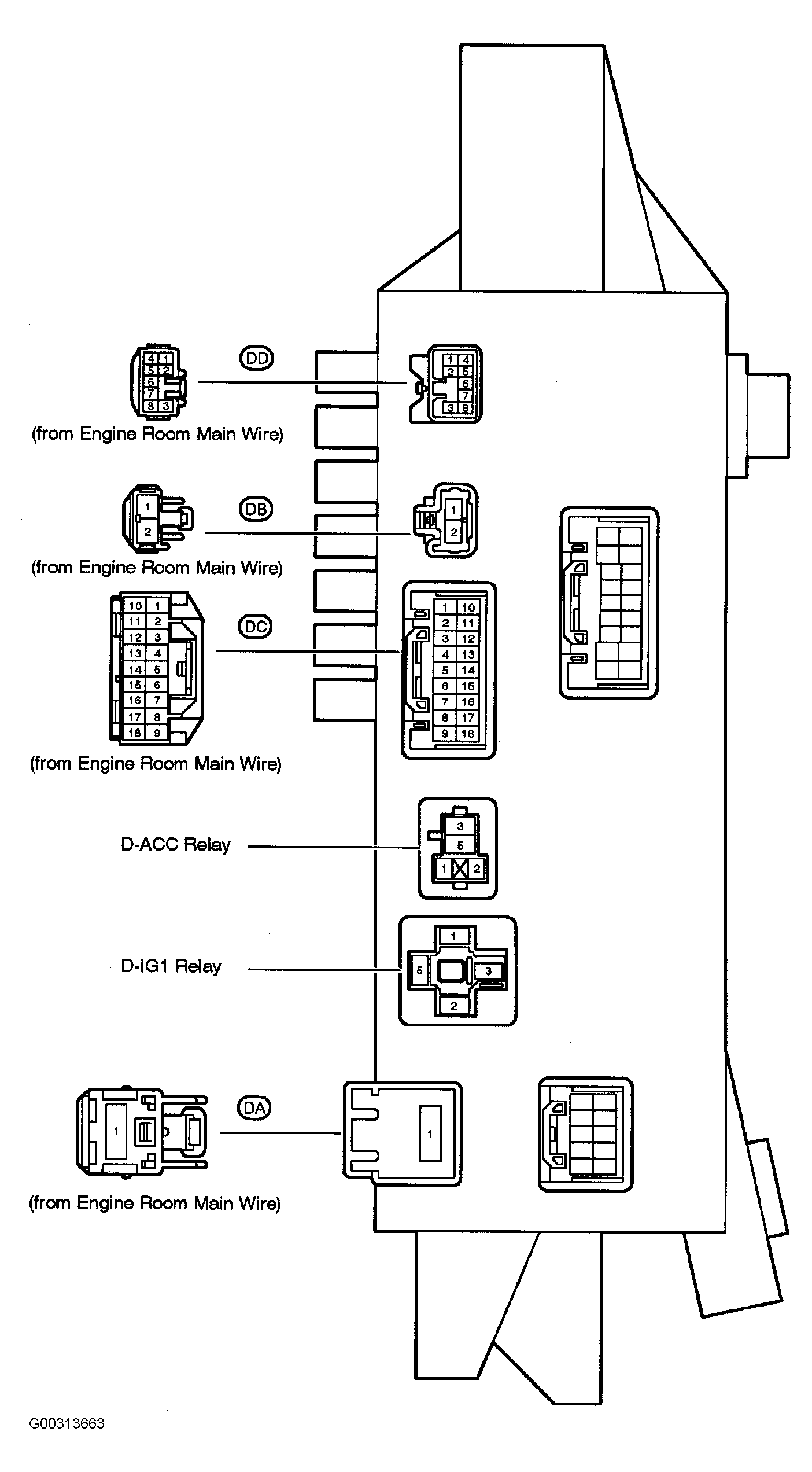

Fig 3: Identifying Driver Side Junction Block Components And Relays
G00313663Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DRIVER SIDE JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
D-ACC Relay
D-IG1 Relay
