Problem Symptoms Table

LIGHTING SYSTEM:

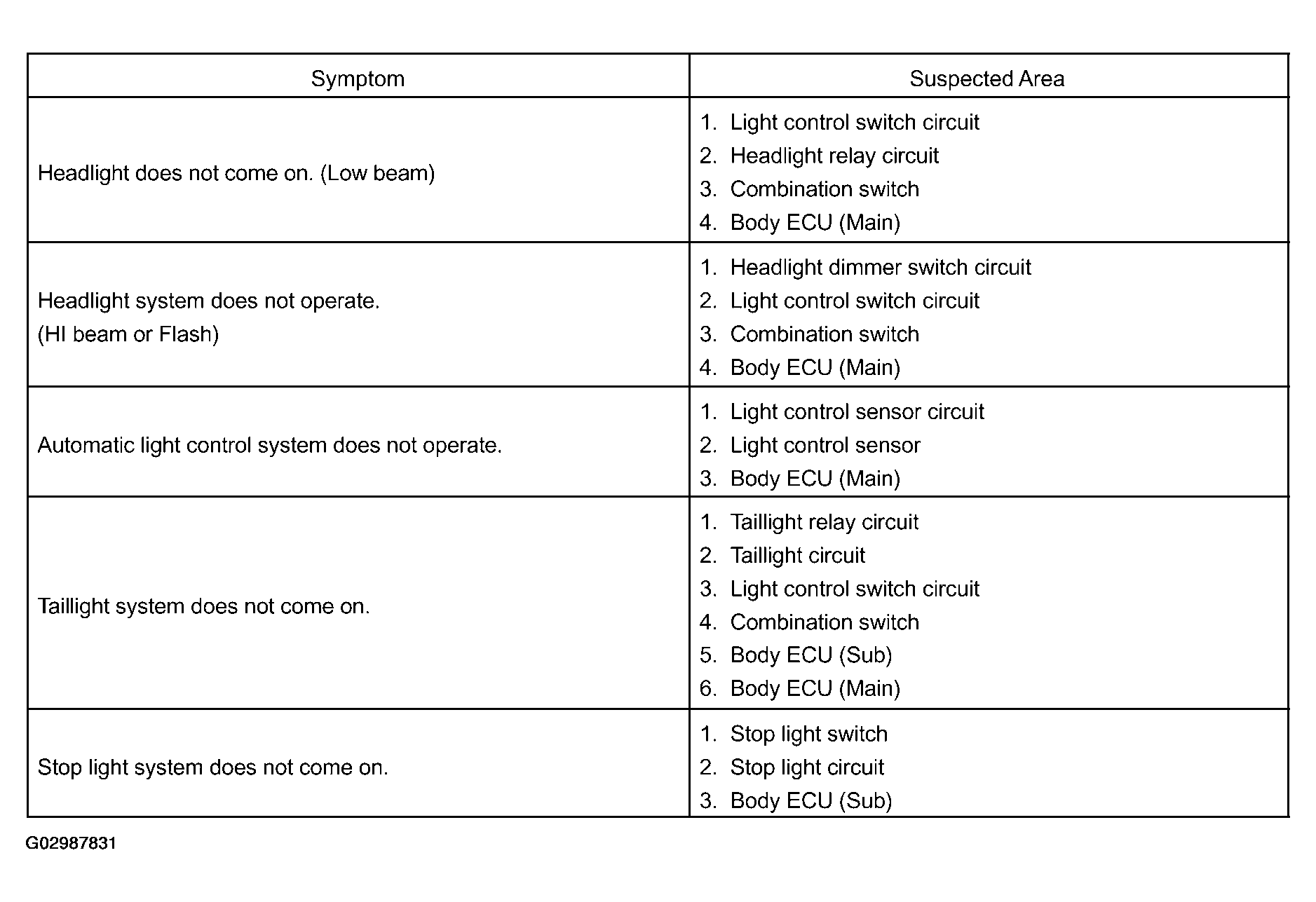

Fig 1: Lighting System - Problem Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HAZARD WARNING SYSTEM:

Fig 2: Hazard Warning System - Problem Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ILLUMINATION LIGHT SYSTEM:

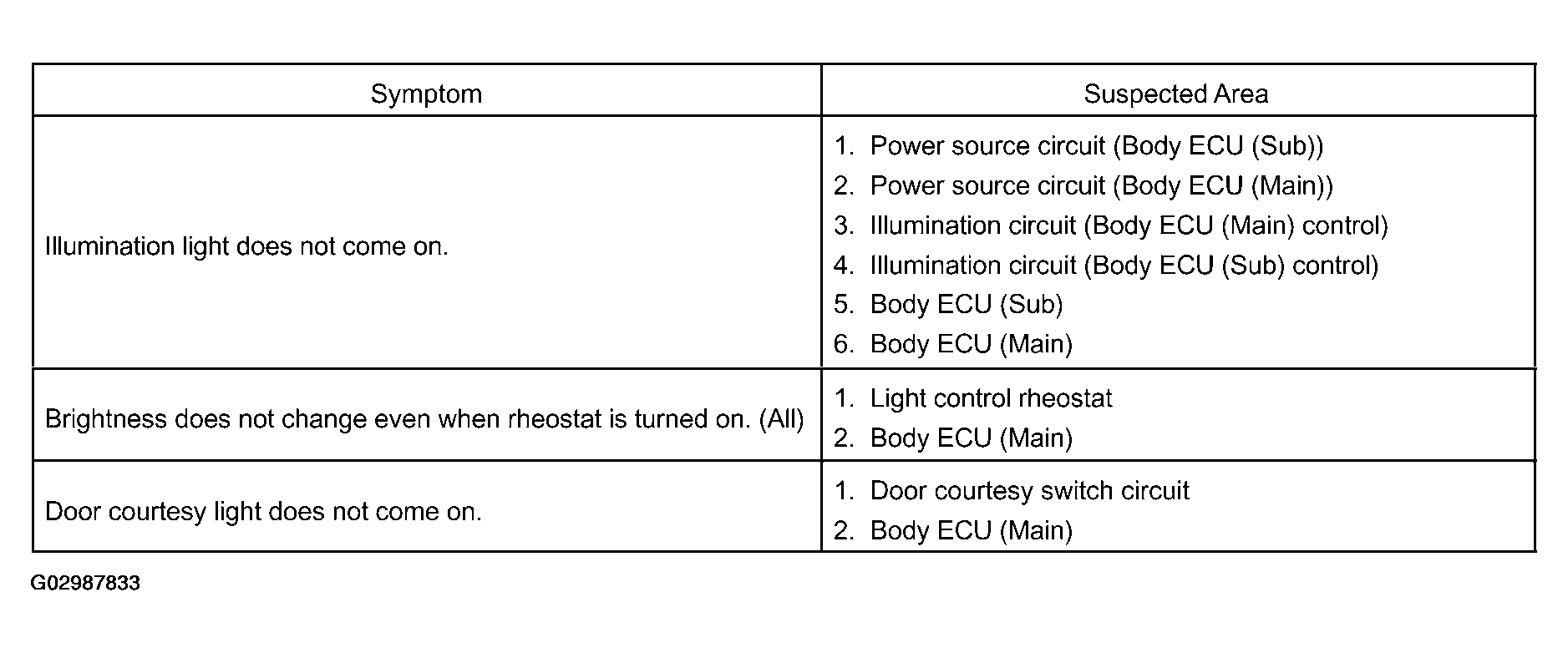

Fig 3: Illumination Light System - Problem Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DRIVER SEAT BELT SYSTEM:

Fig 4: Driver Seat Belt System - Problem Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER DOOR LOCK CONTROL SYSTEM:

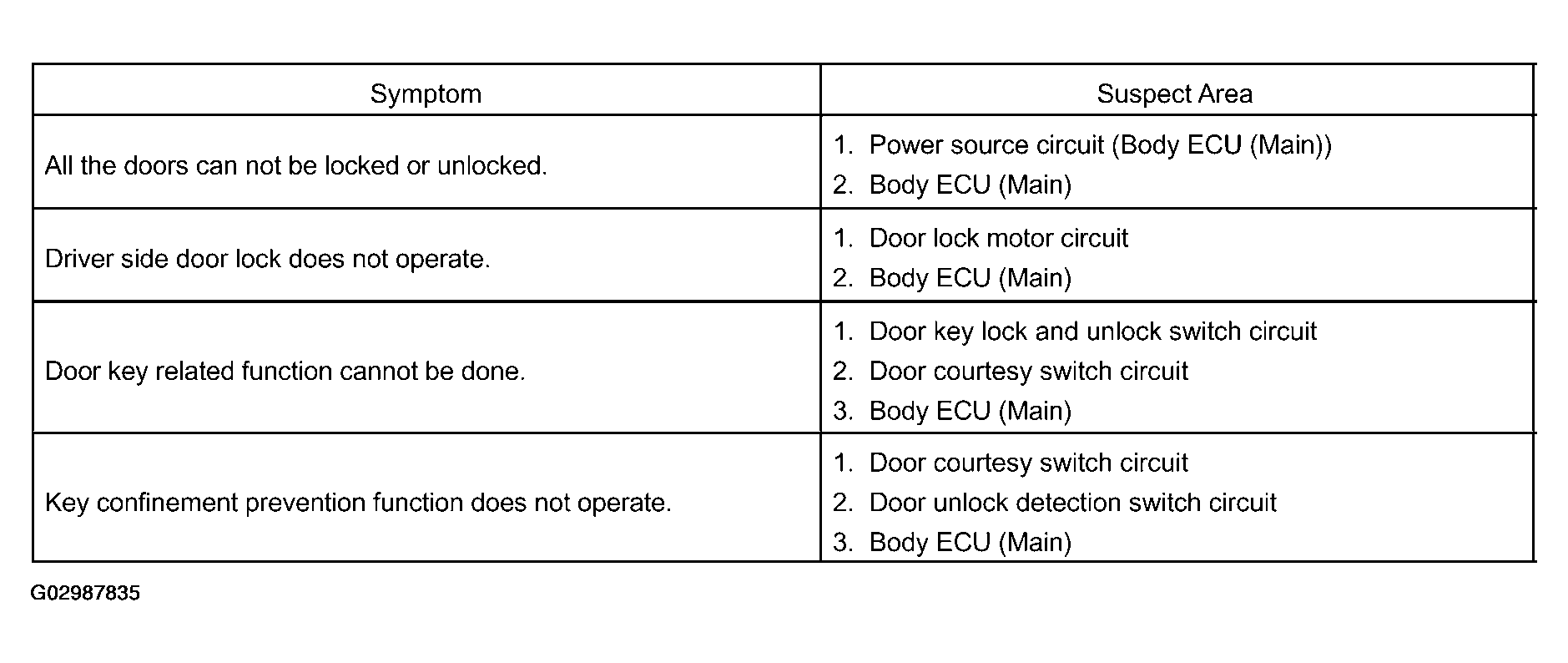

Fig 5: Power Door Lock Control System - Problem Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER SEAT CONTROL SYSTEM:

Fig 6: Power Seat Control System - Problem Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WIRELESS DOOR LOCK CONTROL SYSTEM:

Fig 7: Wireless Door Lock Control System - Problem Symptoms Chart

REAR WIPER SYSTEM:

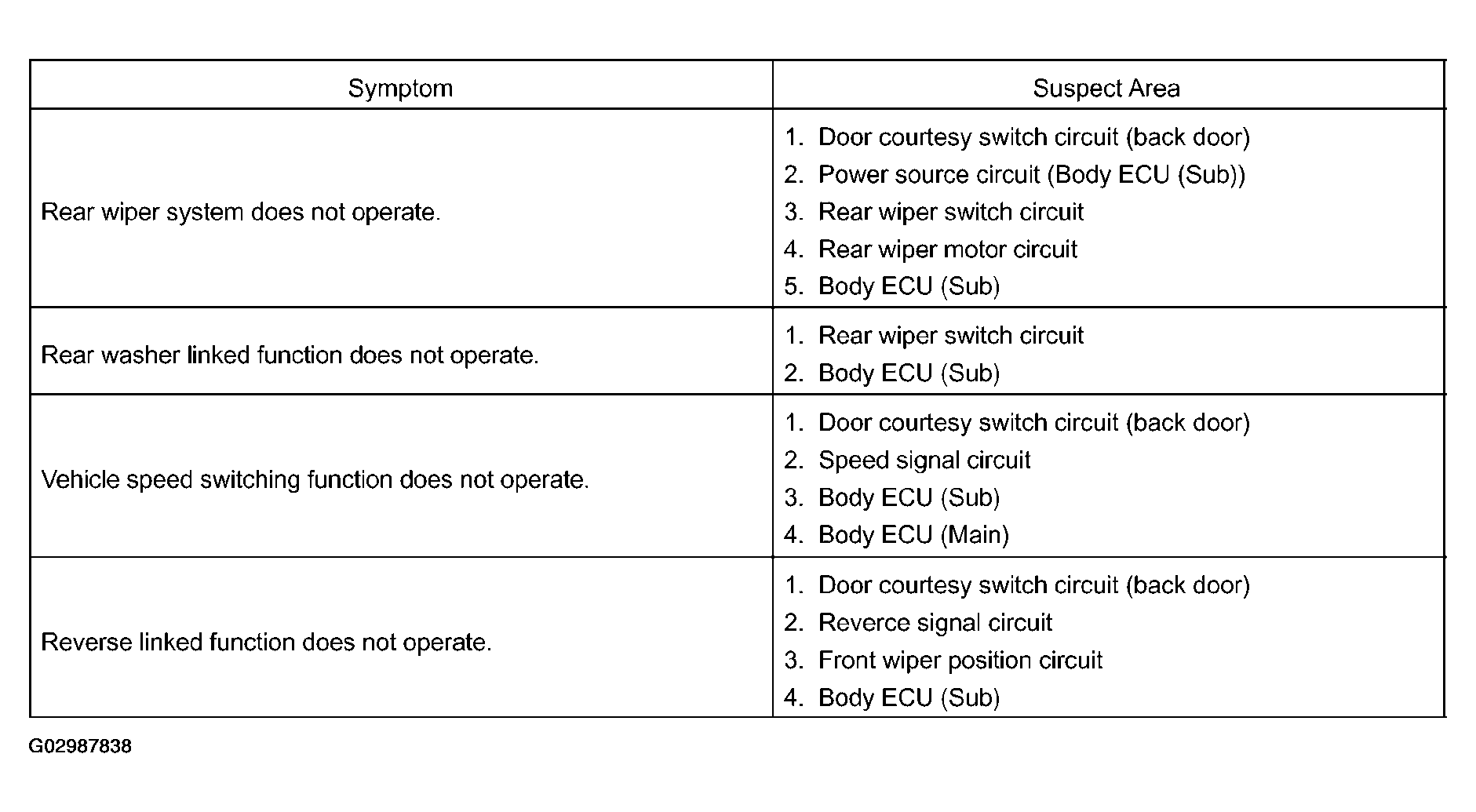

Fig 8: Rear Wiper System - Problem Symptoms Chart

OTHERS:

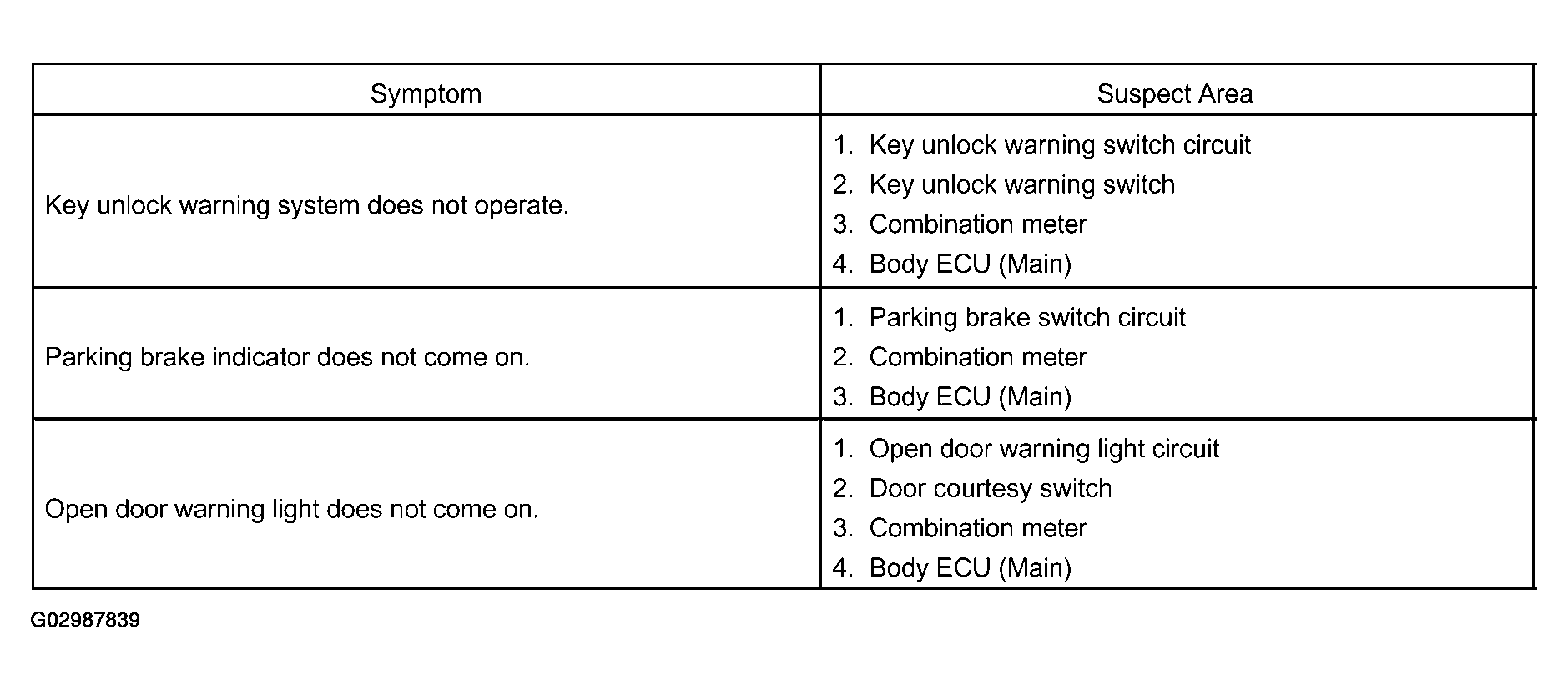

Fig 9: Others - Problem Symptoms Chart
