Problem Symptoms Table

POWER DOOR LOCK CONTROL SYSTEM:

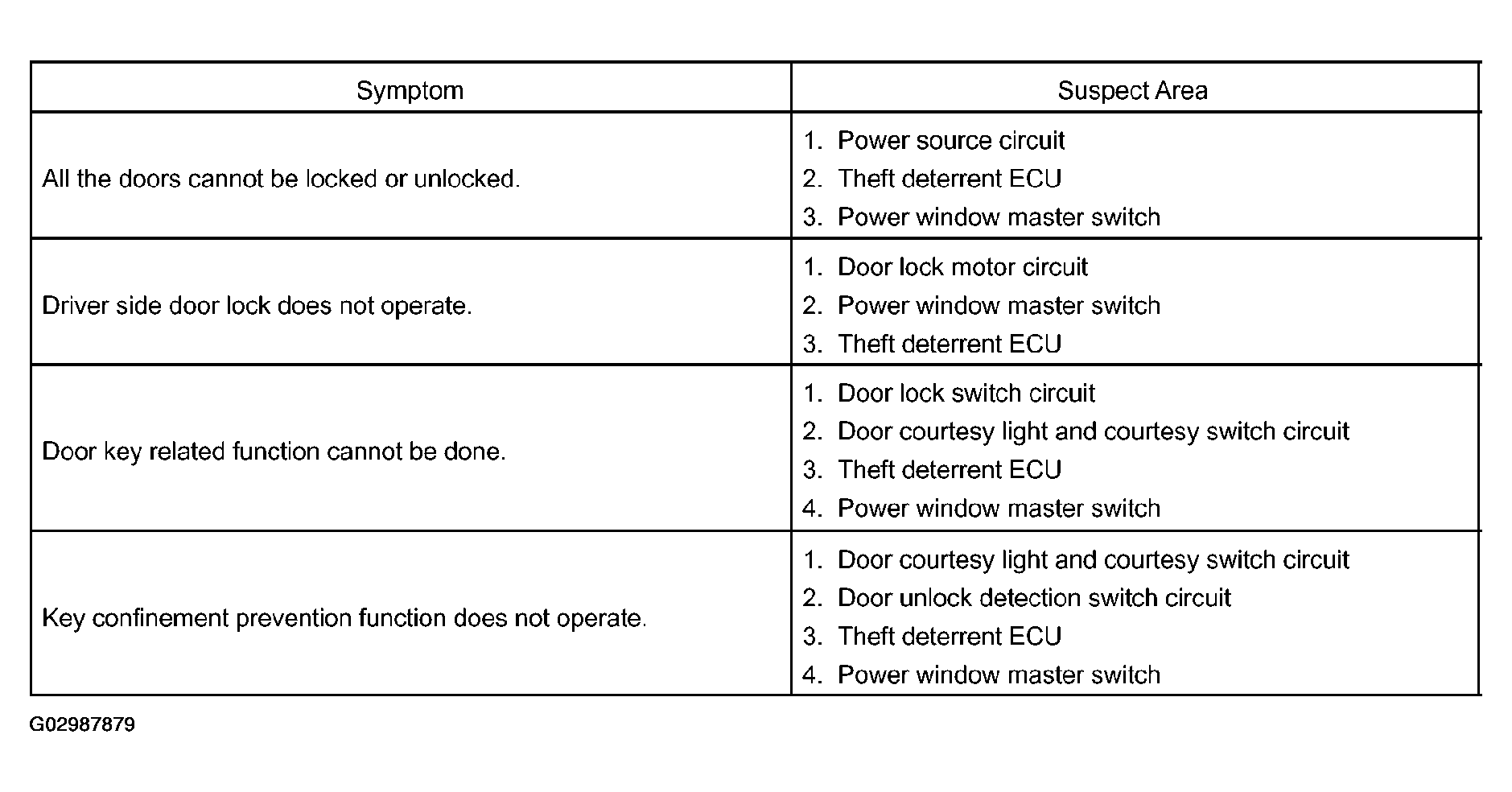

Fig 1: Power Door Lock Control System - Problem Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

POWER WINDOW CONTROL SYSTEM:

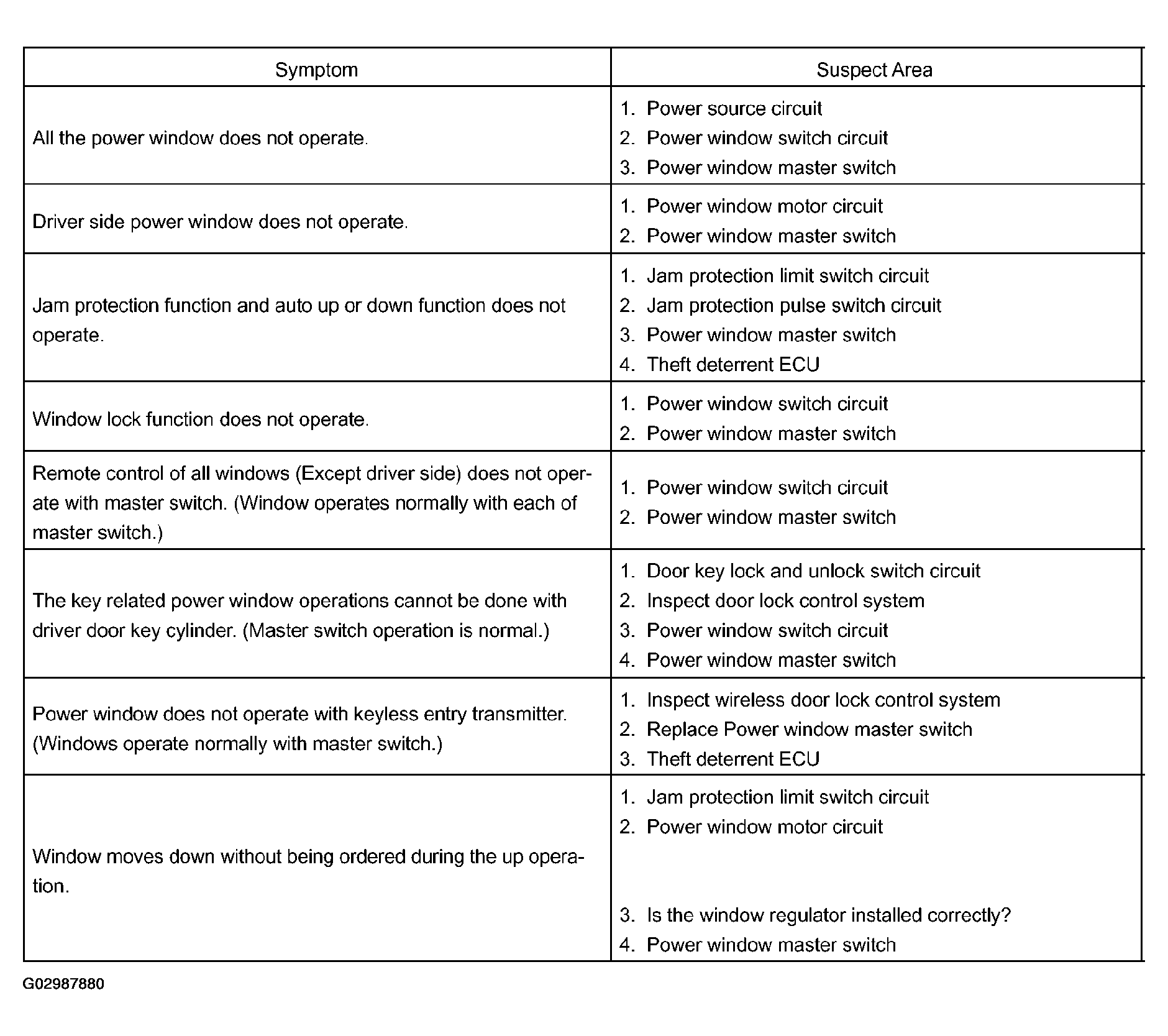

Fig 2: Power Window Control System - Problem Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
