Outside Rear View Mirror: Replacement

  1. IF NECESSARY, DISCONNECT MIRROR
    1. Insert a shop rag between the mirror and the mirror body.
    2. Pull up the lower side of the shop rag to disconnect the mirror joint.
      Fig 1: Disconnecting Mirror Joint
      G02994290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull up the mirror and disconnect it.
      Fig 2: Disconnecting Mirror
      G02994291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the connectors.
    Fig 3: Disconnecting Connector
    G02994292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT MIRROR
    1. Connect the connectors.
    2. Connect the claws (A), and set the mirror to the mirror body.
    3. Push the mirror to connect the claws (B) and set it.

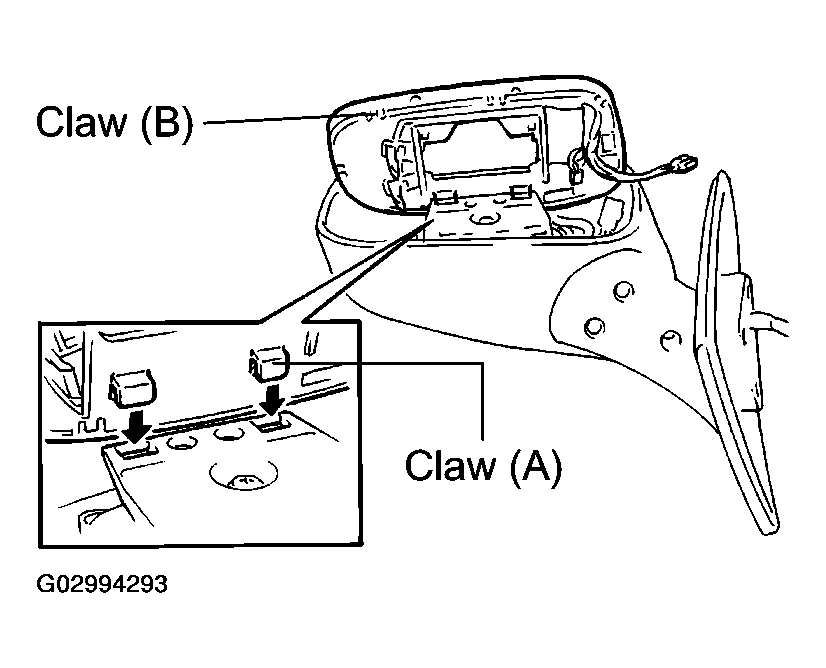

    Fig 4: Connecting Mirror
    G02994293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
