Active Height Control System: Location

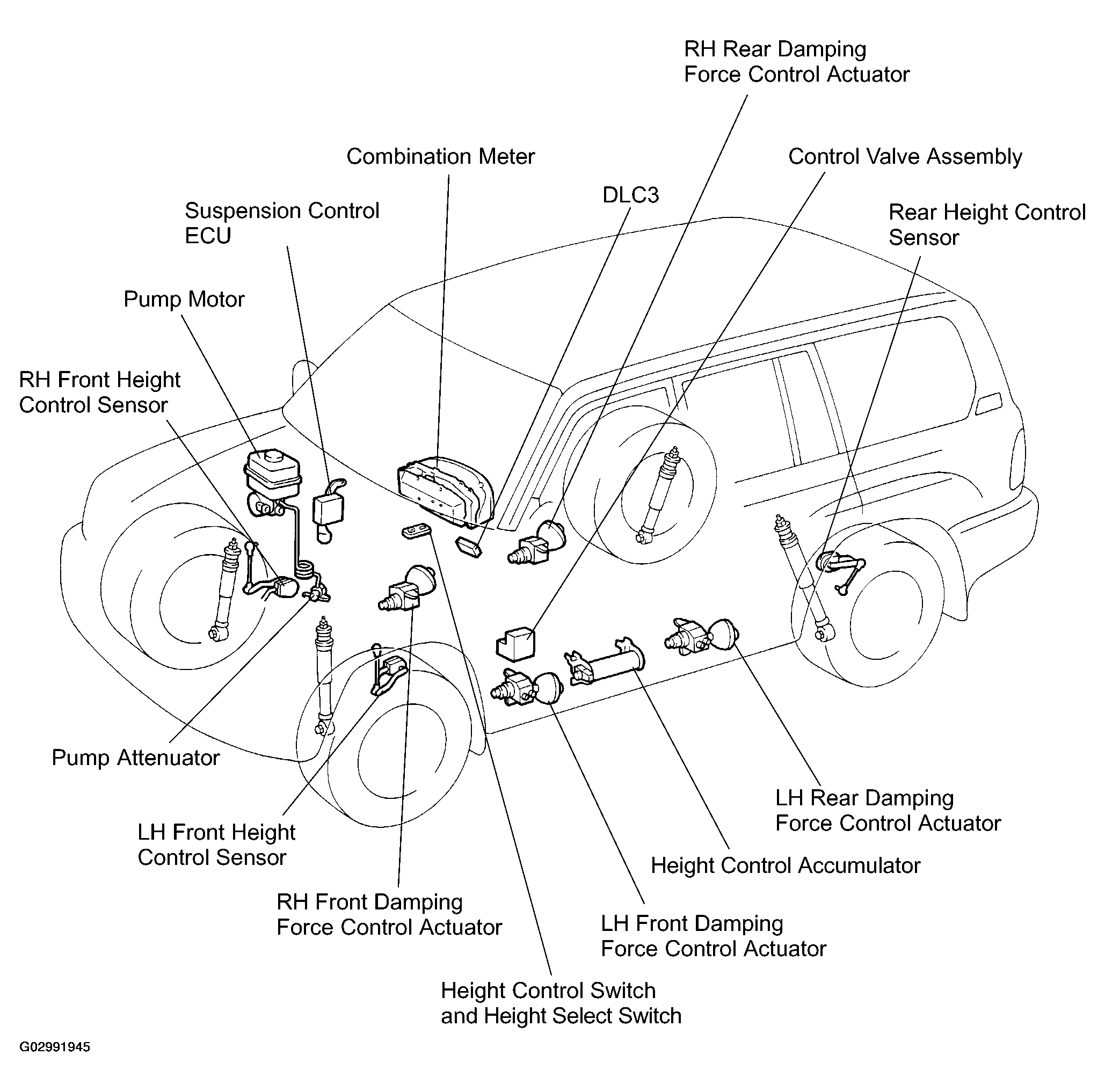

Fig 1: Identifying Components Location
G02991945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
