Front Shock Absorber: Components

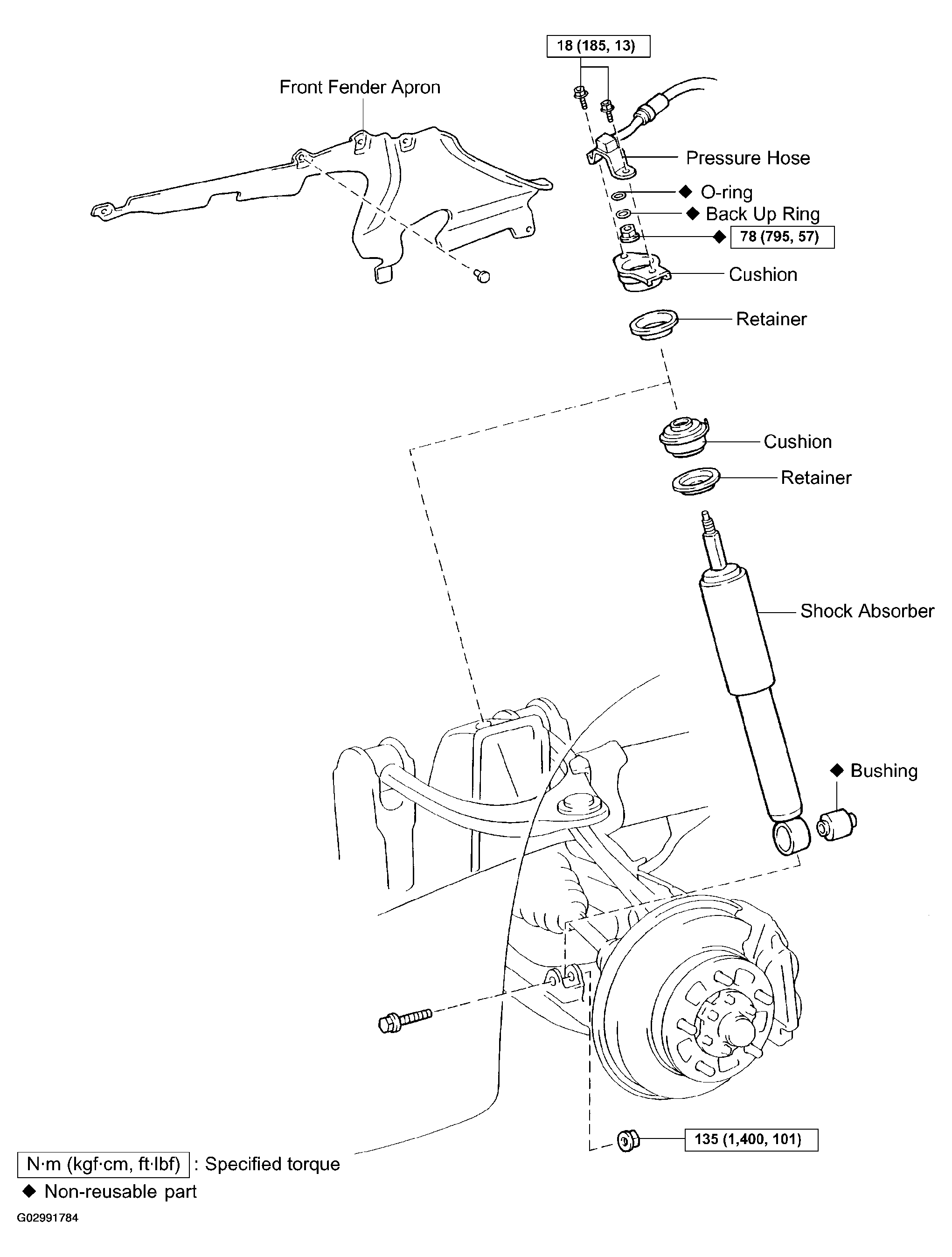

Fig 1: Exploded View Of Front Shock Absorber With Torque Specifications
G02991784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
