Data List

DATA LIST

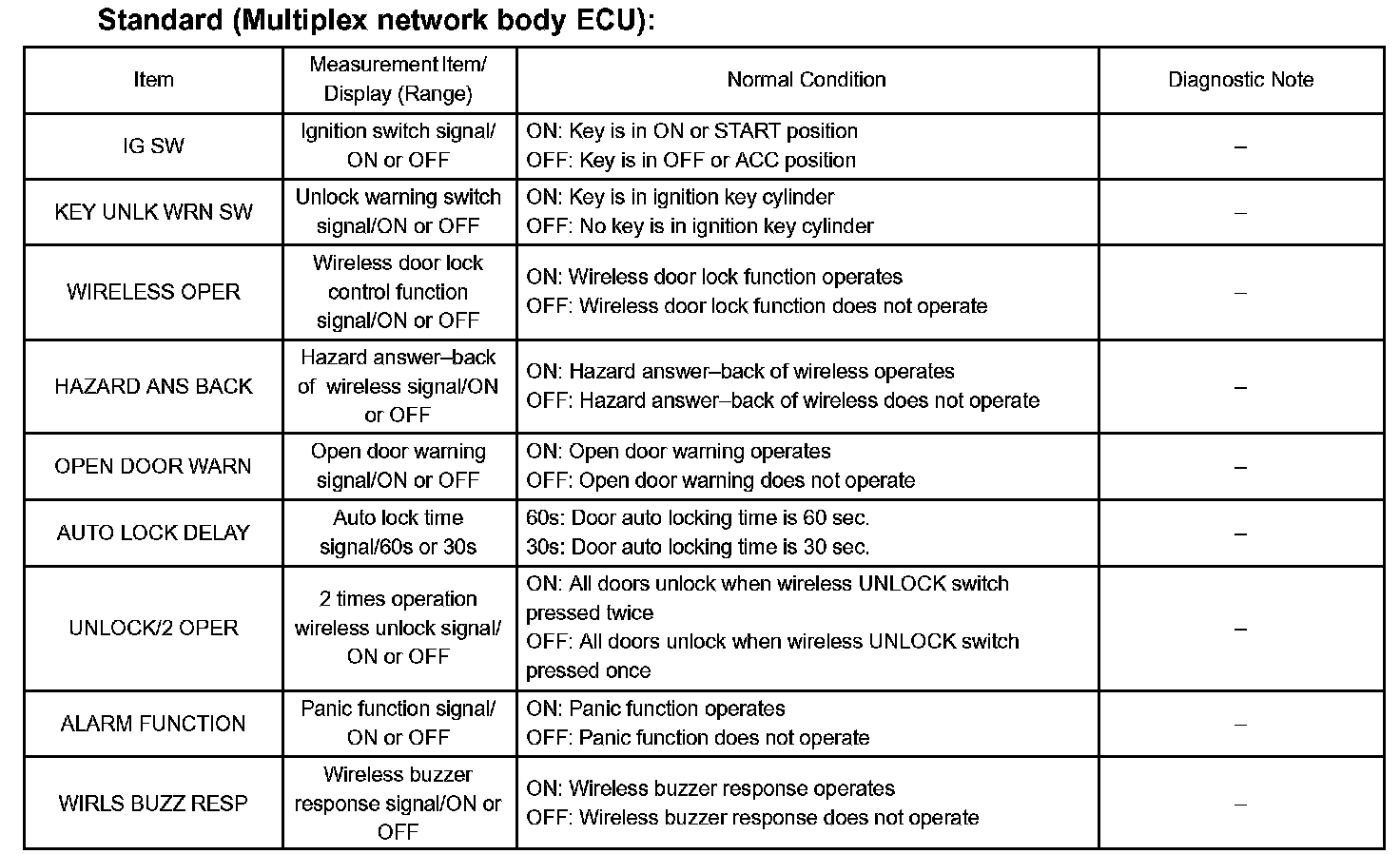

HINT: Using the DATA LIST displayed on the hand-held tester, you can read the value of the switch, sensor, actuator, etc. without parts removal. Reading the DATA LIST as the first step of troubleshooting is one way to shorten the labor time.




a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch ON.
c. Read the DATA LIST according to the display on the tester.
