Wiper Control Module: Testing and Inspection

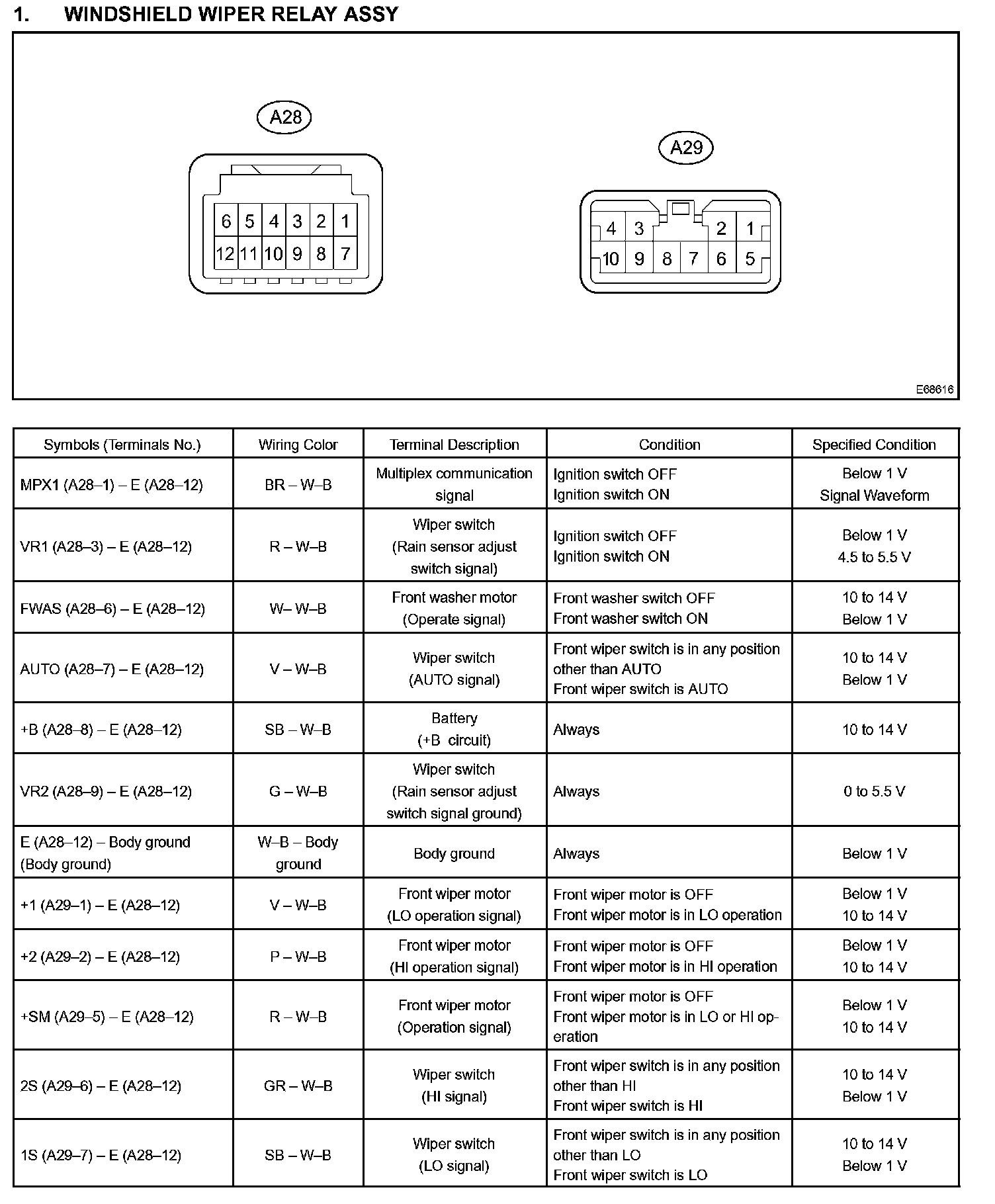

Terminals Of Control Module/Pinouts - Windshield Wiper Relay Assy Part 1:



Terminals Of Control Module/Pinouts - Windshield Wiper Relay Assy Part 2:

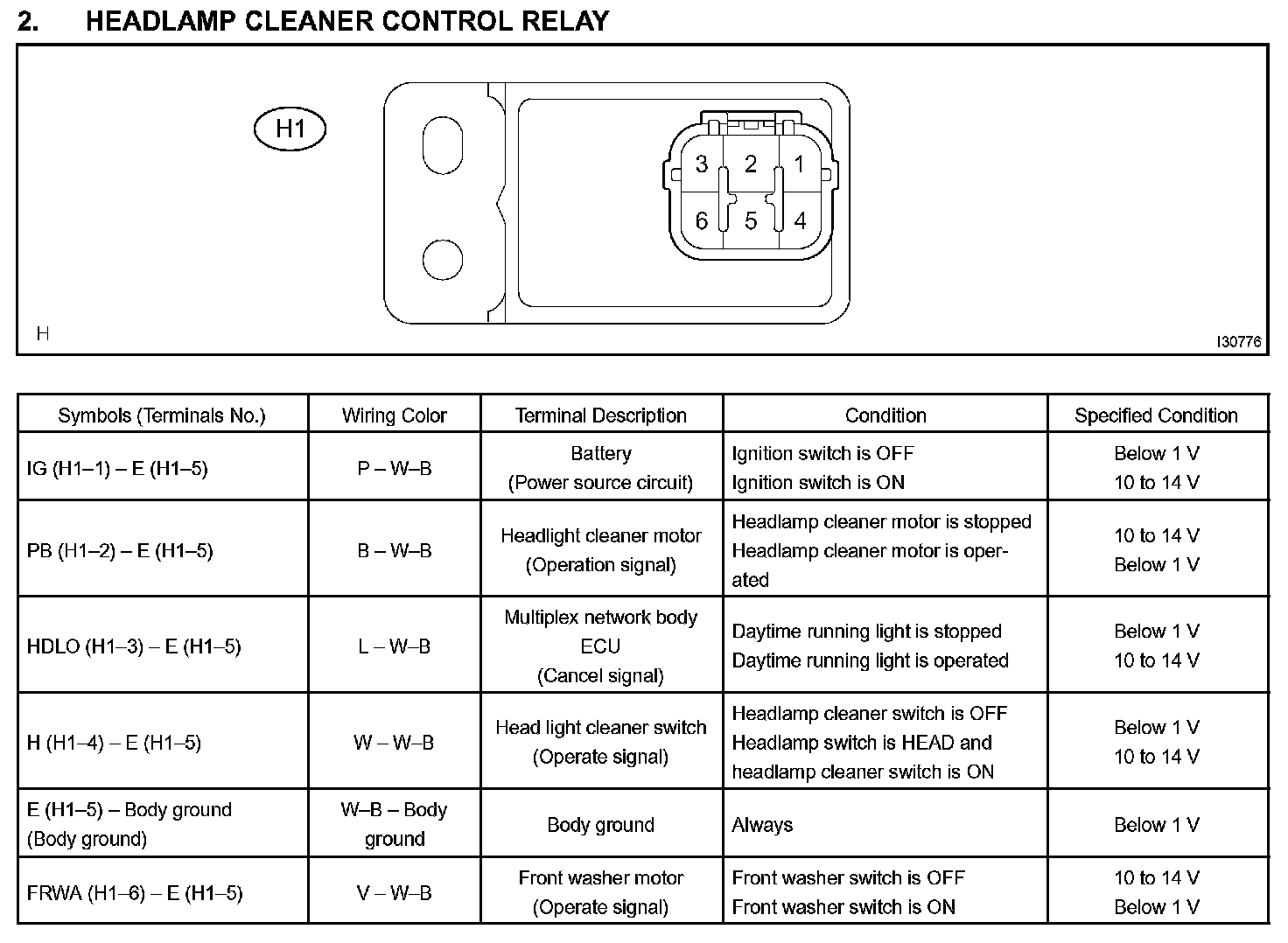

Terminals Of Control Module/Pinouts - Headlamp Cleaner Control Relay:
