Power Mirror Control System (W/ Memory) - Diagnostics
>>
Remote Control Mirror Switch Circuit
>>
Wiring Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Remote Control Mirror Switch Circuit: Wiring Diagram

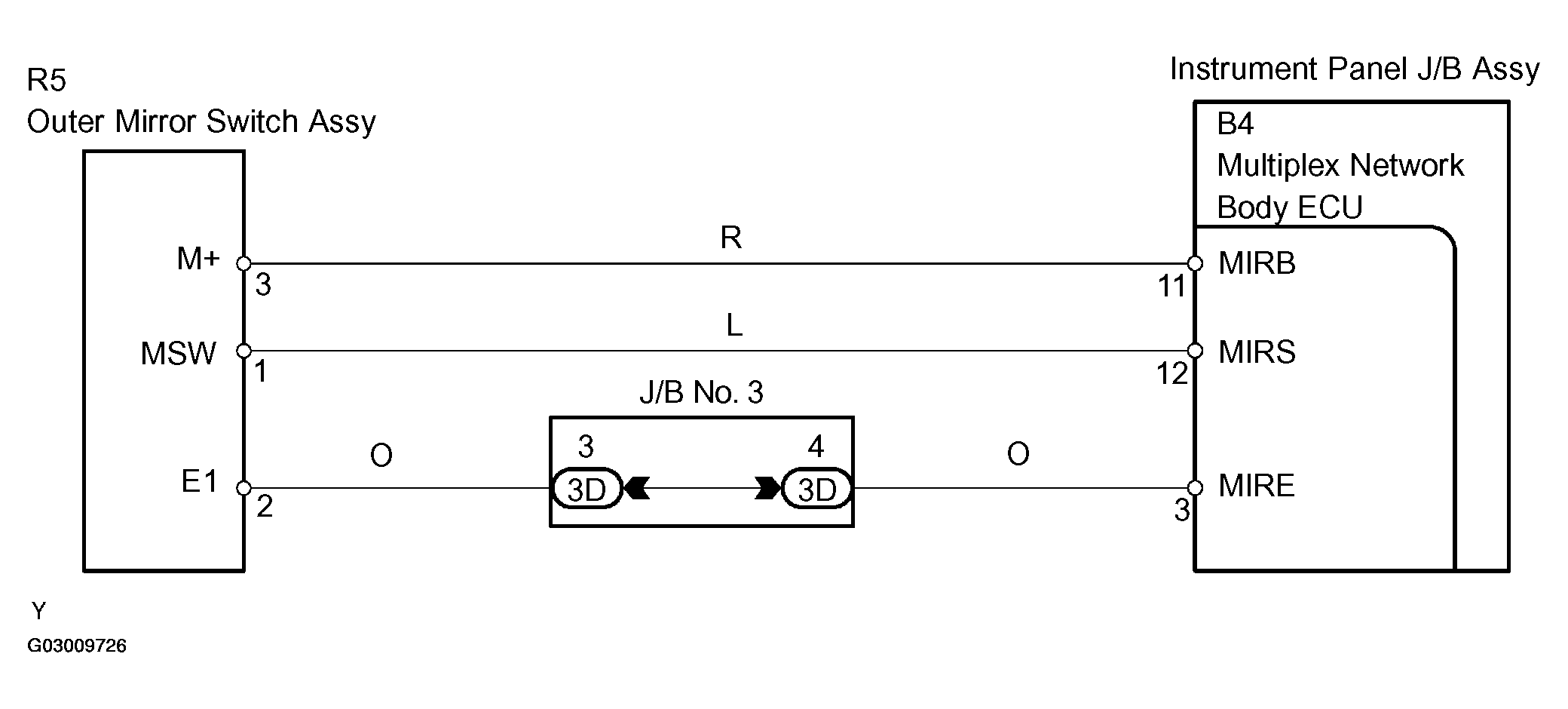

Fig 1: Remote Control Mirror Switch Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
