Front Power Seat Control System: Location

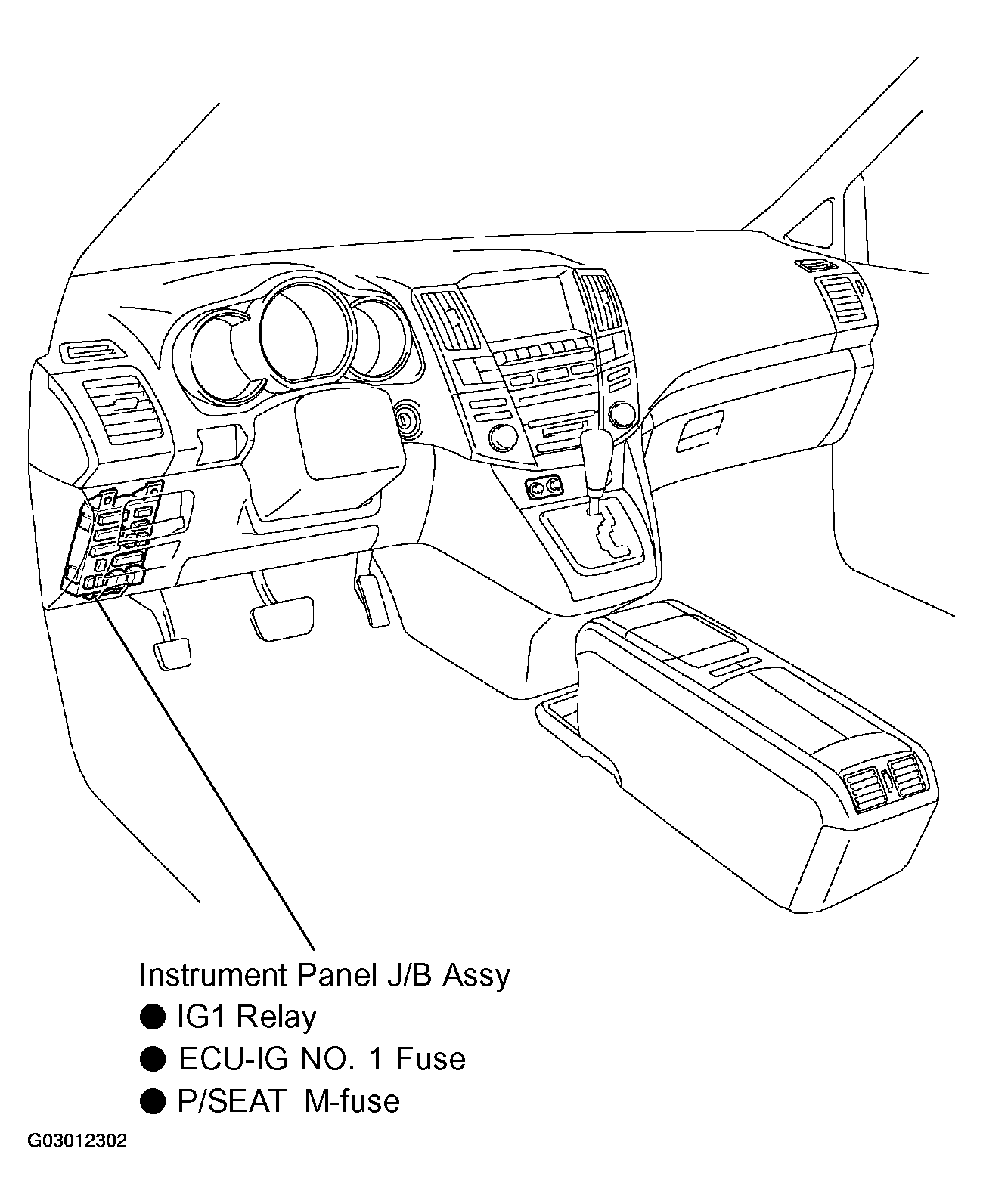

Fig 1: Identifying Seat Front Power Seat Control System Component Location (1 Of 2)
G03012302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

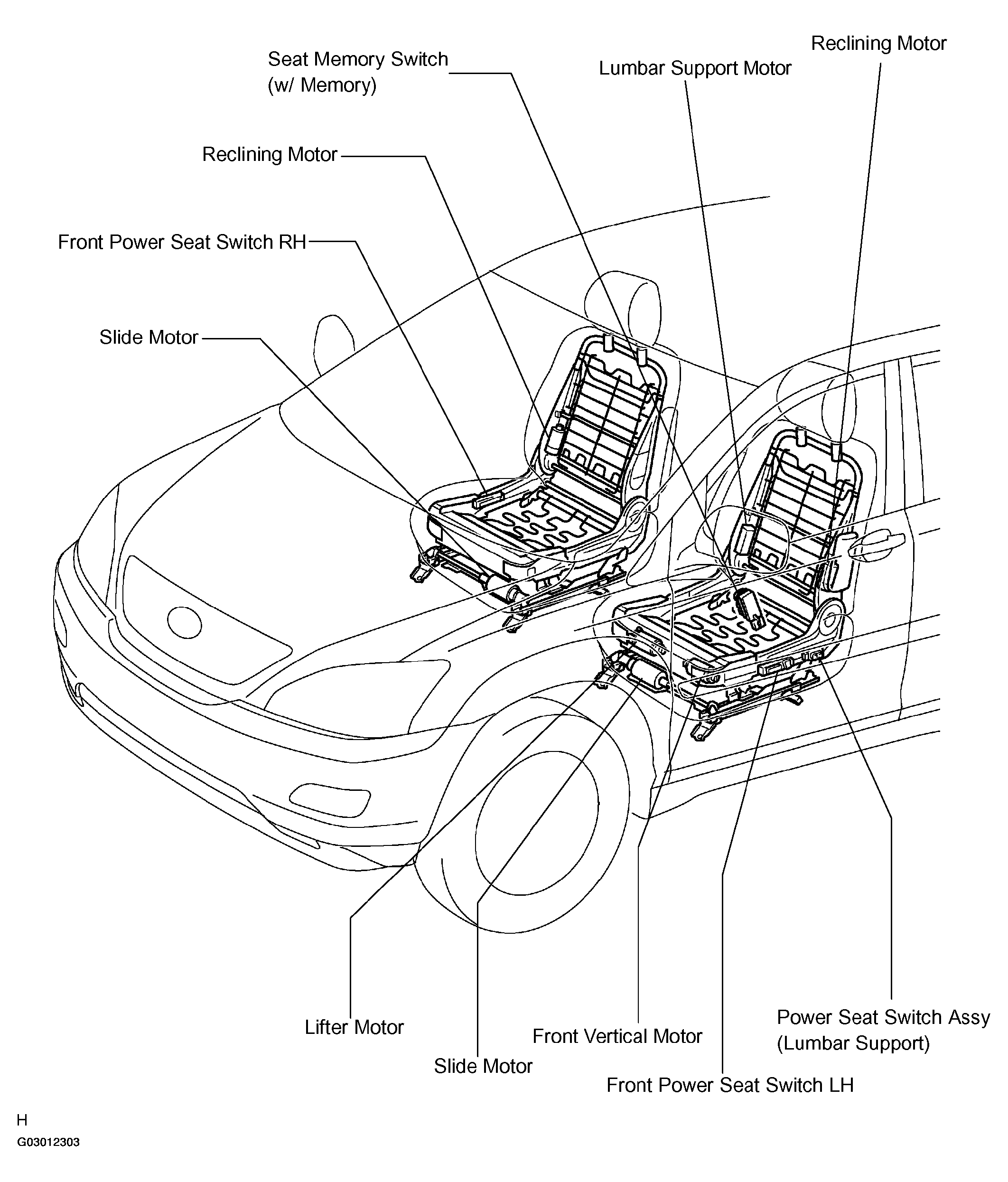

Fig 2: Identifying Seat Front Power Seat Control System Component Location (2 Of 2)
G03012303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
