Transfer (4WD): Components

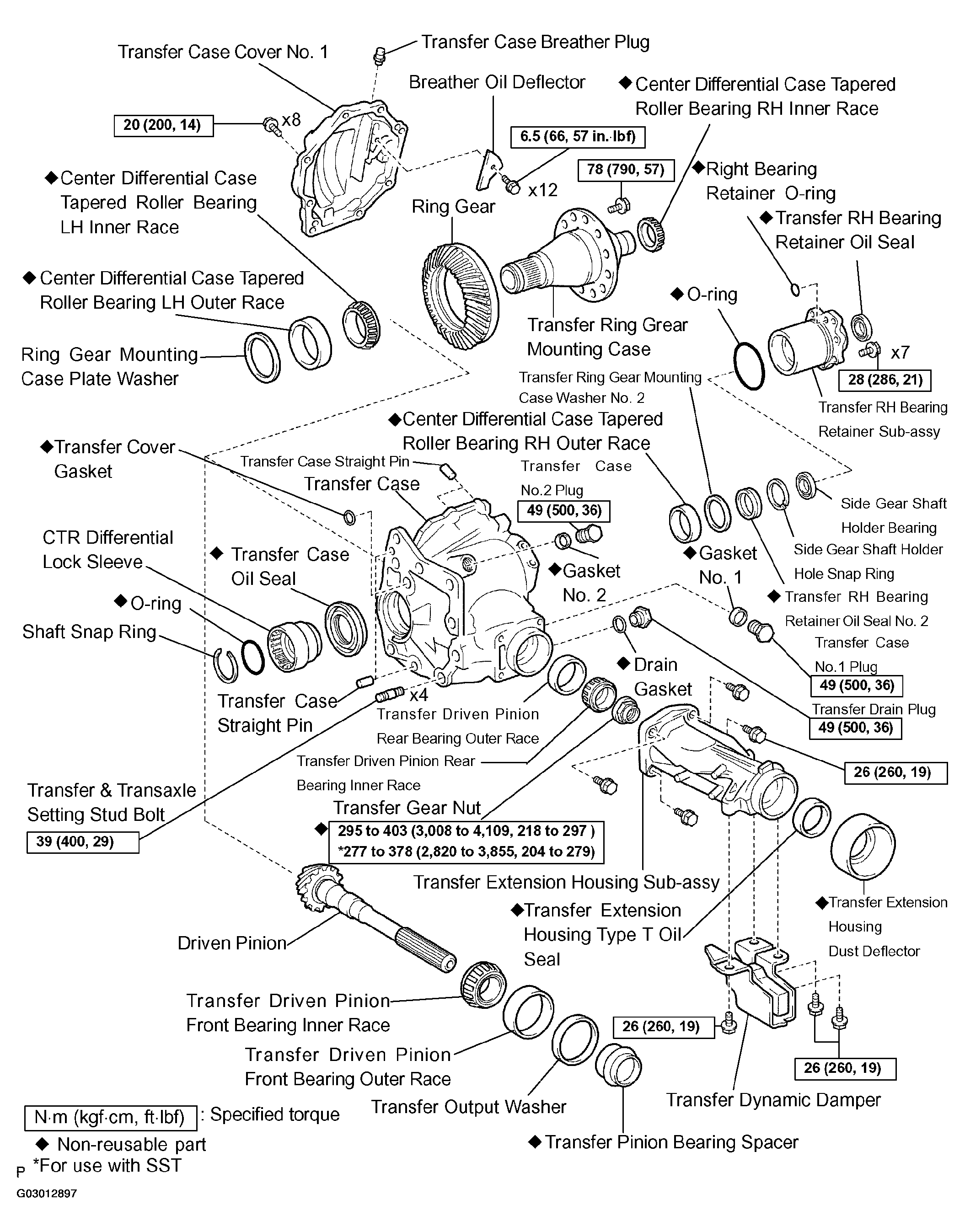

Fig 1: Identifying Transfer (4WD) Components

G03012897

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
