Body Control Systems: Testing and Inspection

CUSTOMIZE PARAMETERS

HINT: The following items can be customized.

NOTE:
- Be sure to record the current settings before customizing.
- When the customer requests a change in a function, first make sure that the function(s) can be customized.
- When troubleshooting a function, first make sure that the function is set to the default setting.




Multiplex tilt & telescopic ECU assembly




A/C amplifier assembly




Power window control system




Combination meter assembly




Theft warning ECU

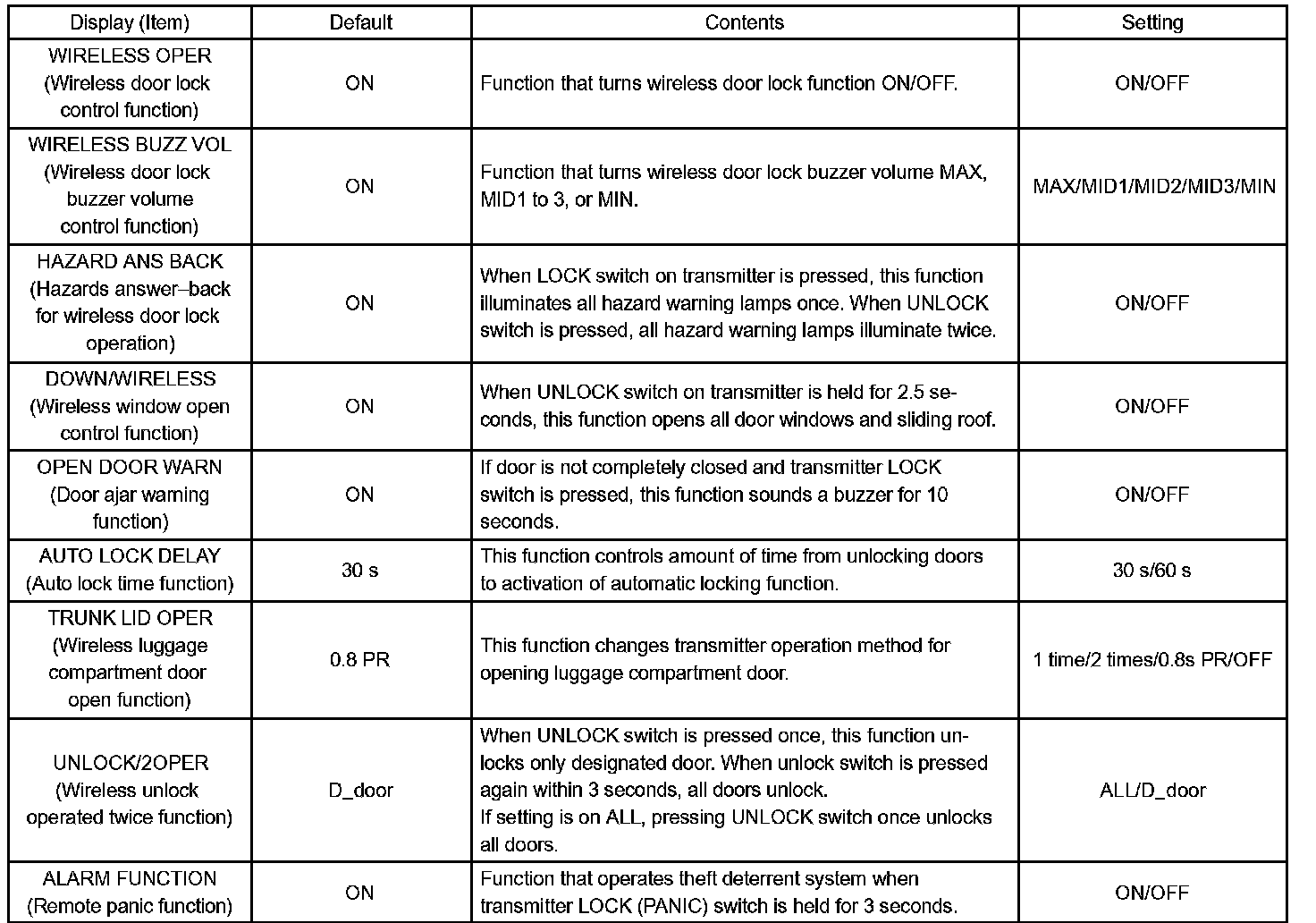

Wireless door lock control system




Meter ECU

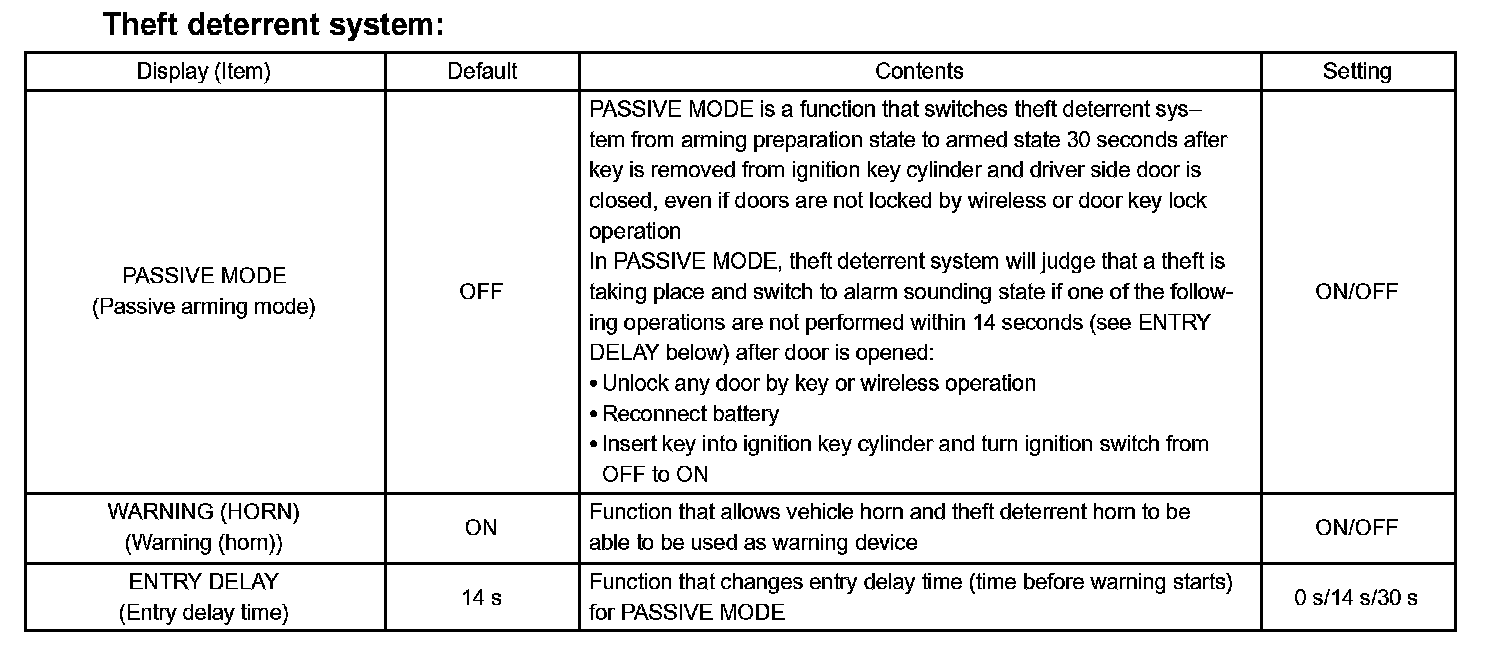

Theft deterrent system
