Power Seat Control Module: Testing and Inspection

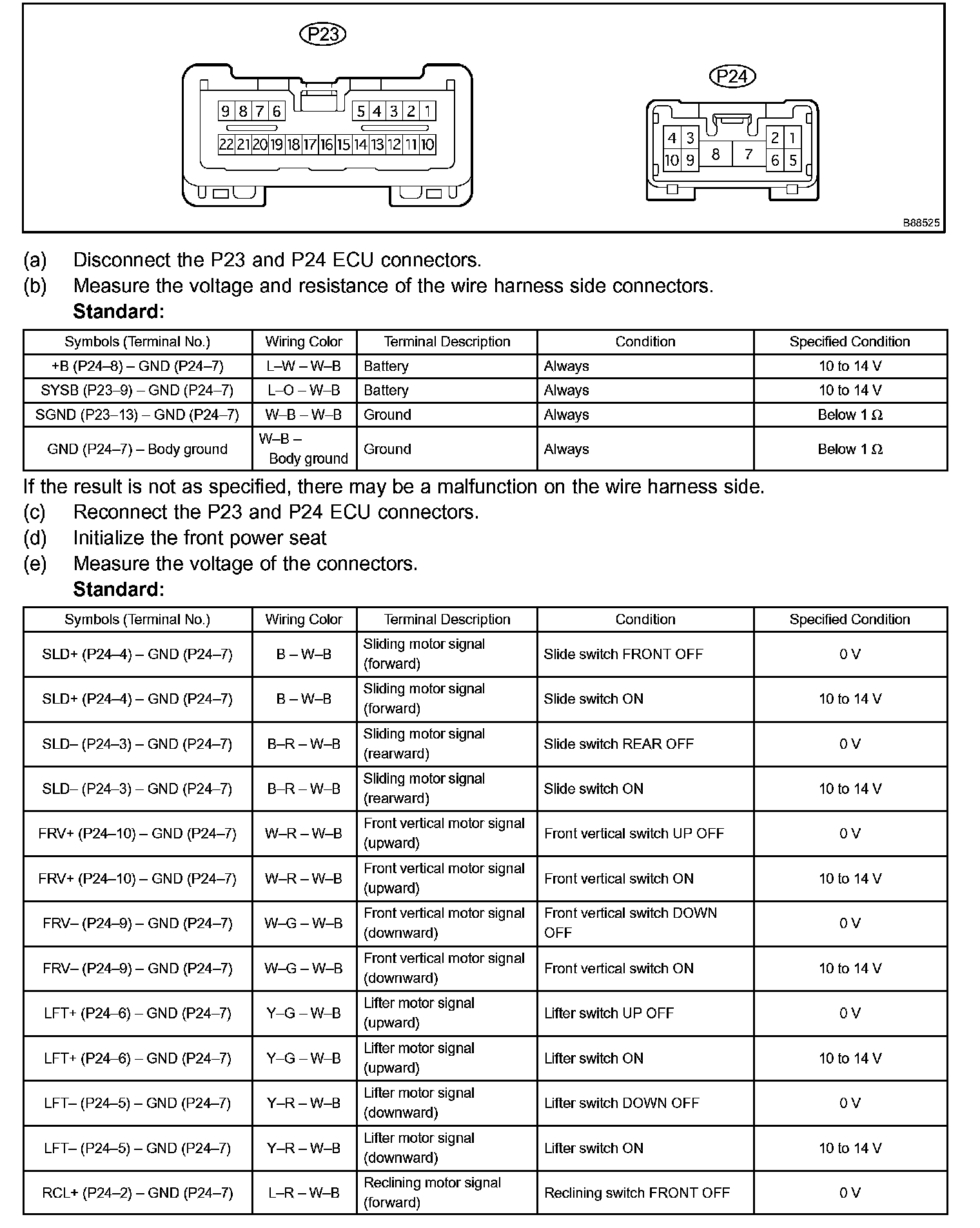

Terminals Of Control Module/Pinouts - Inspect Position Control ECU Assy (Driver Side) Part 1:

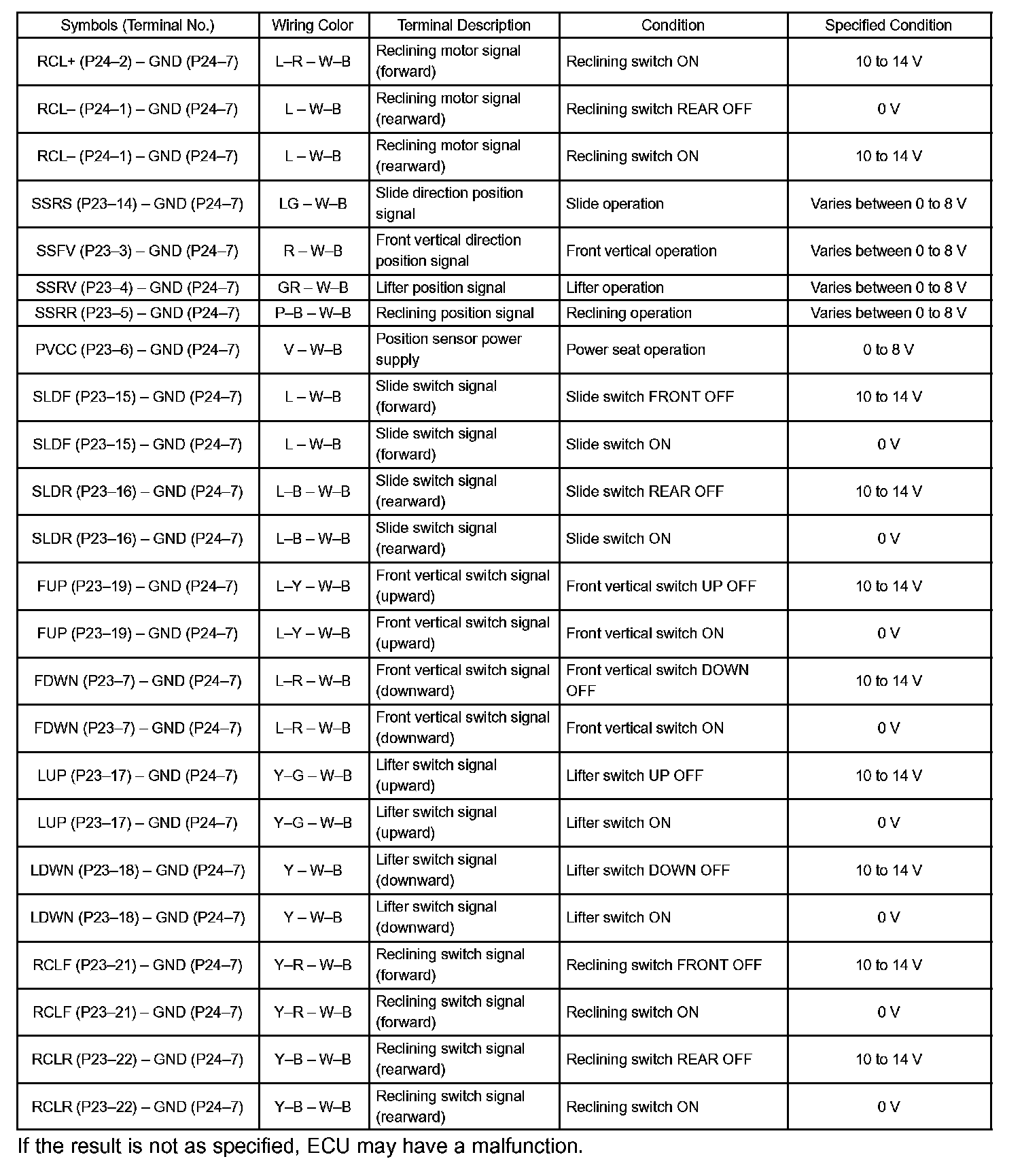

Terminals Of Control Module/Pinouts - Inspect Position Control ECU Assy (Driver Side) Part 2:

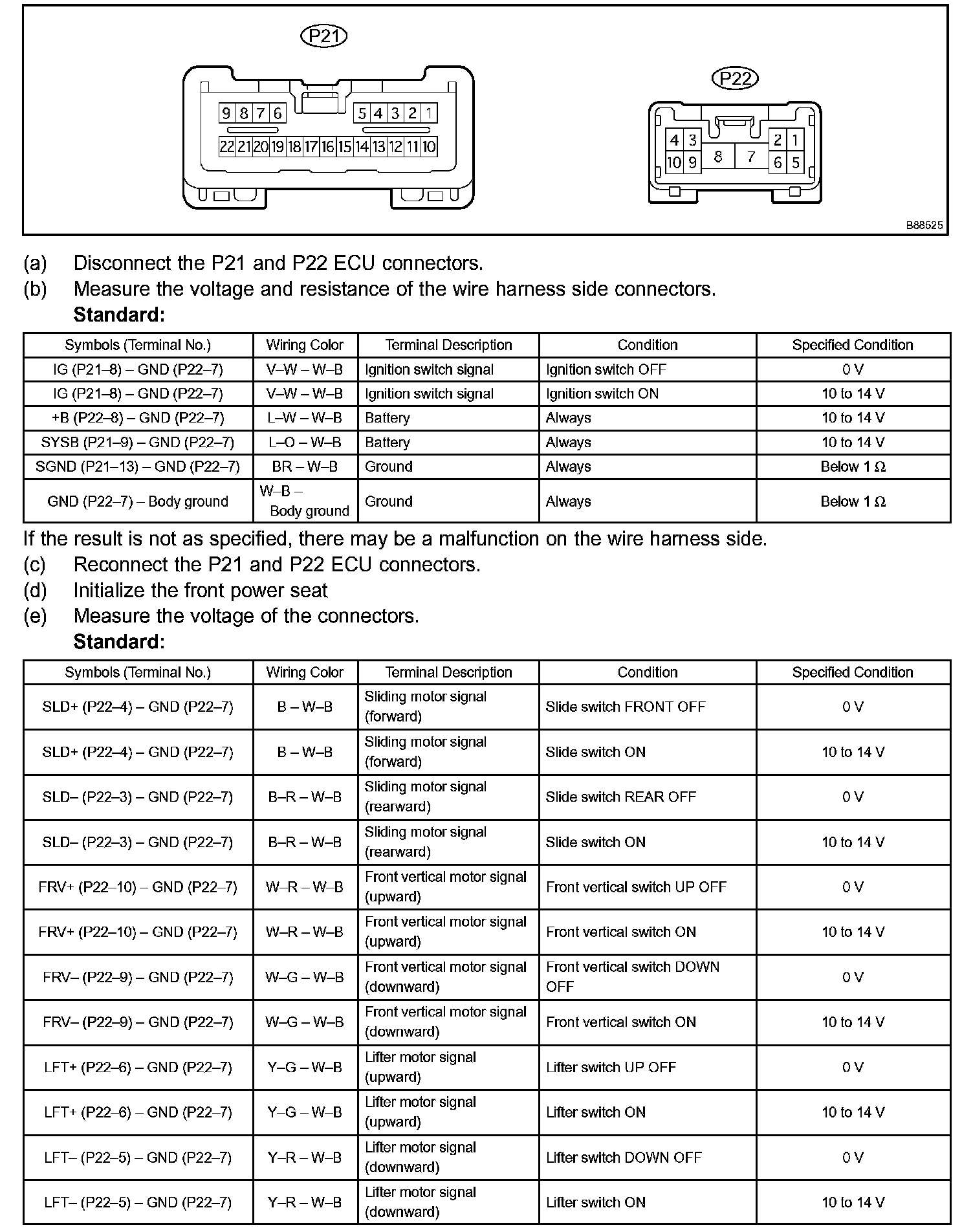

Terminals Of Control Module/Pinouts - Inspect Position Control ECU Assy (Passenger Side) - Part 1:

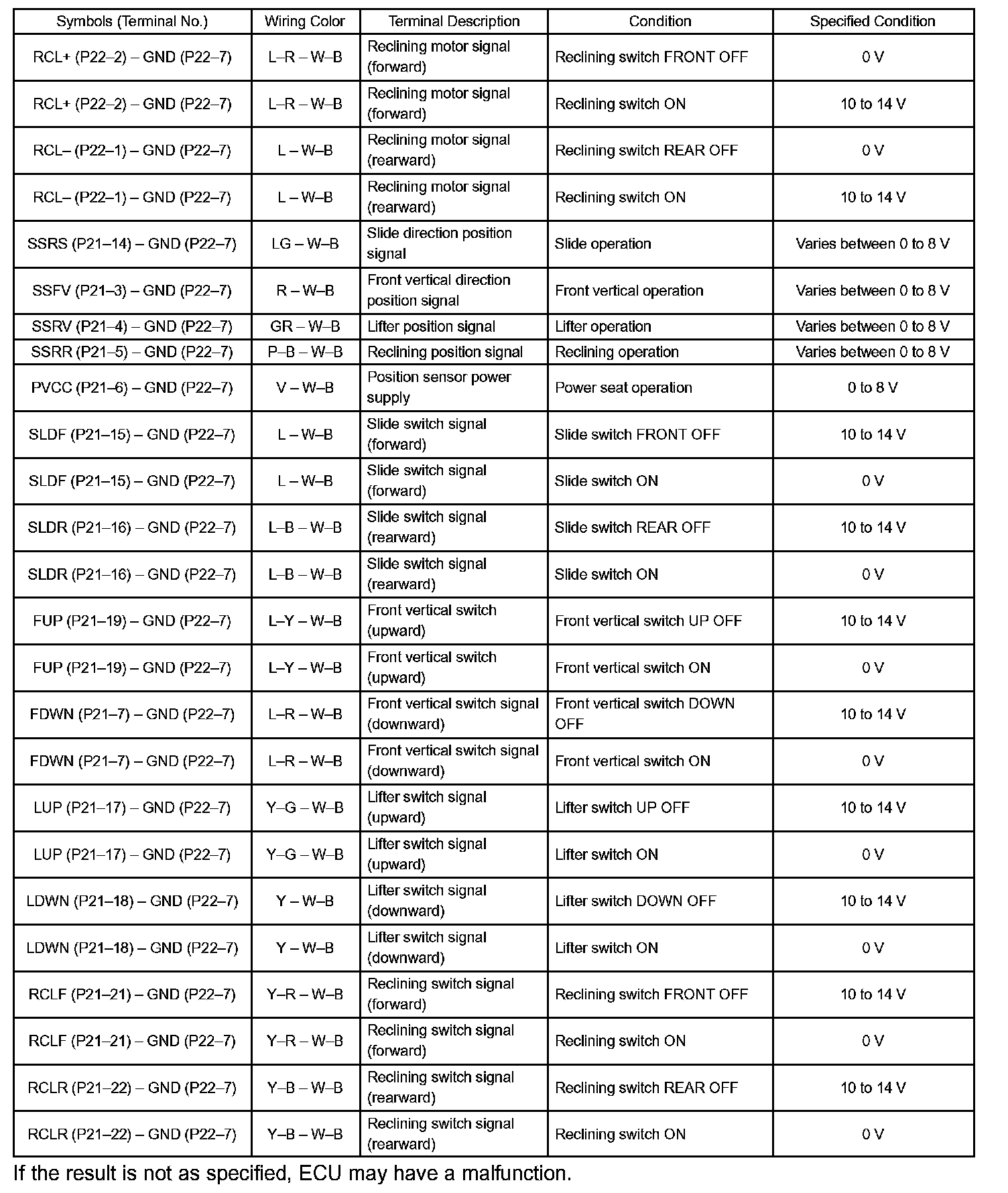

Terminals Of Control Module/Pinouts - Inspect Position Control ECU Assy (Passenger Side) - Part 2:

Terminals Of Control Module/Pinouts Check Multiplex Network Door ECU Front LH (Driver Door ECU):

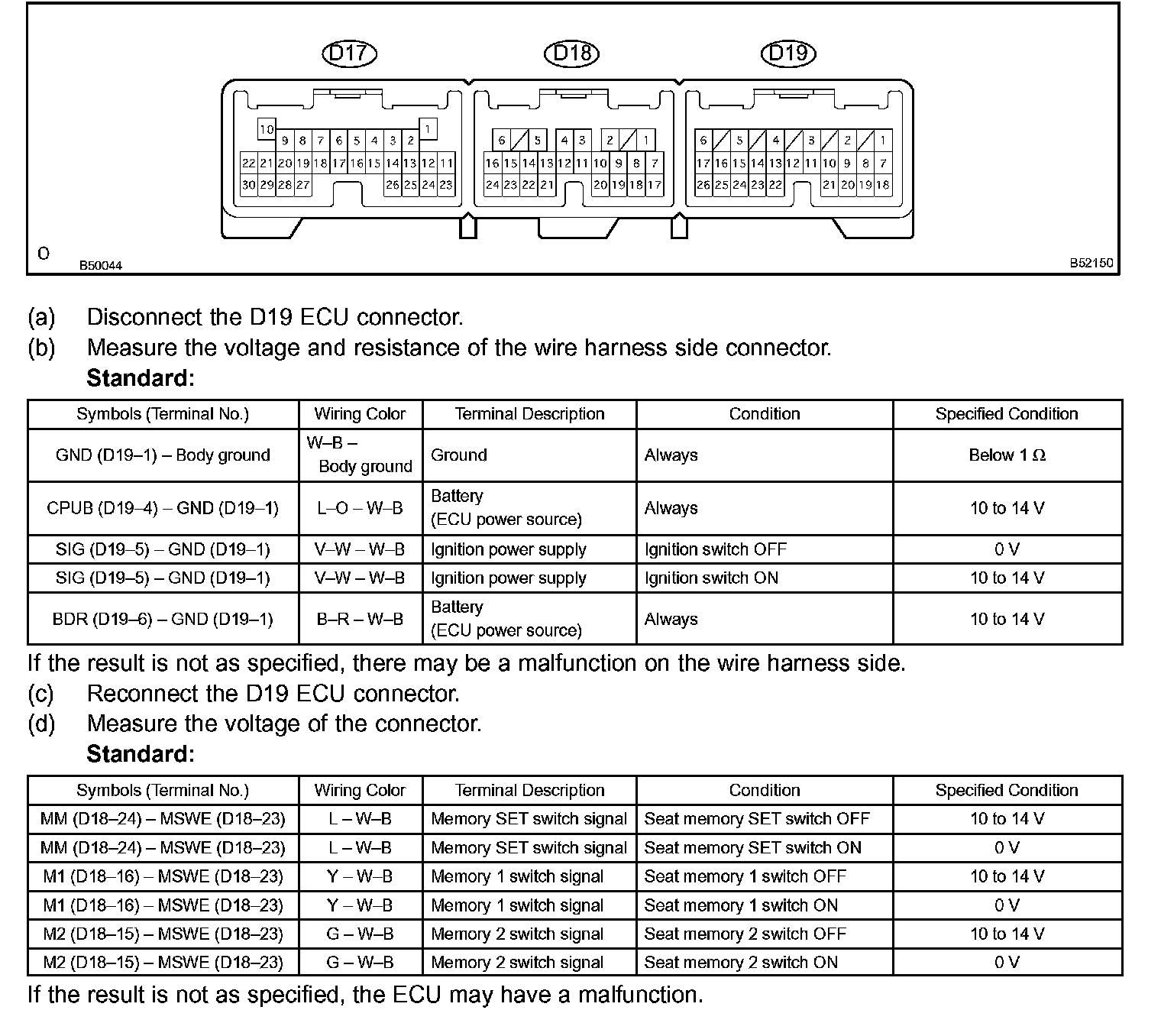

Terminals Of Control Module/Pinouts - Check Multiplex Network Door ECU Front RH (Passenger Door ECU):
