System Diagram

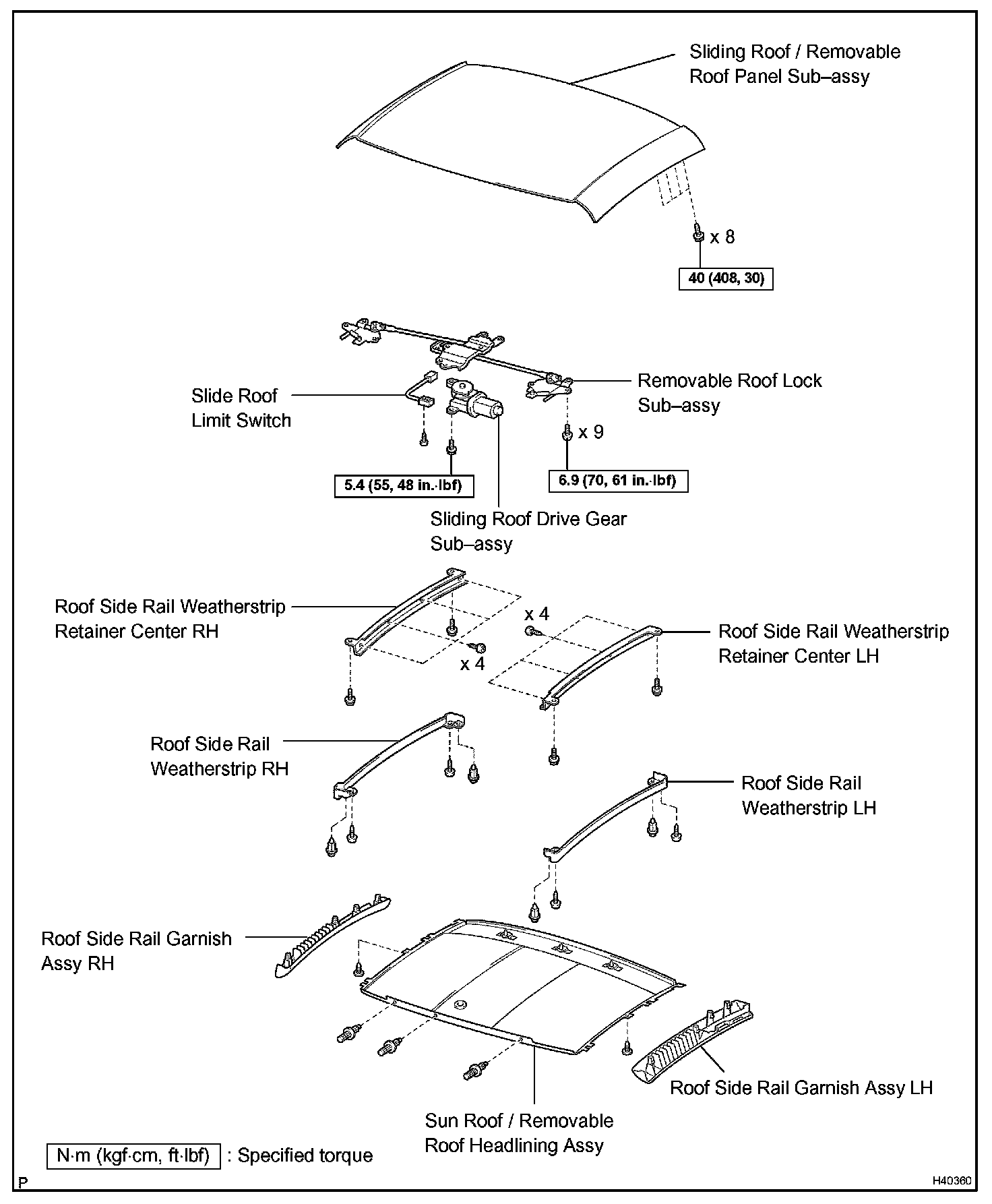

Sliding Roof Or Removable Roof Panel Sub-Assy:

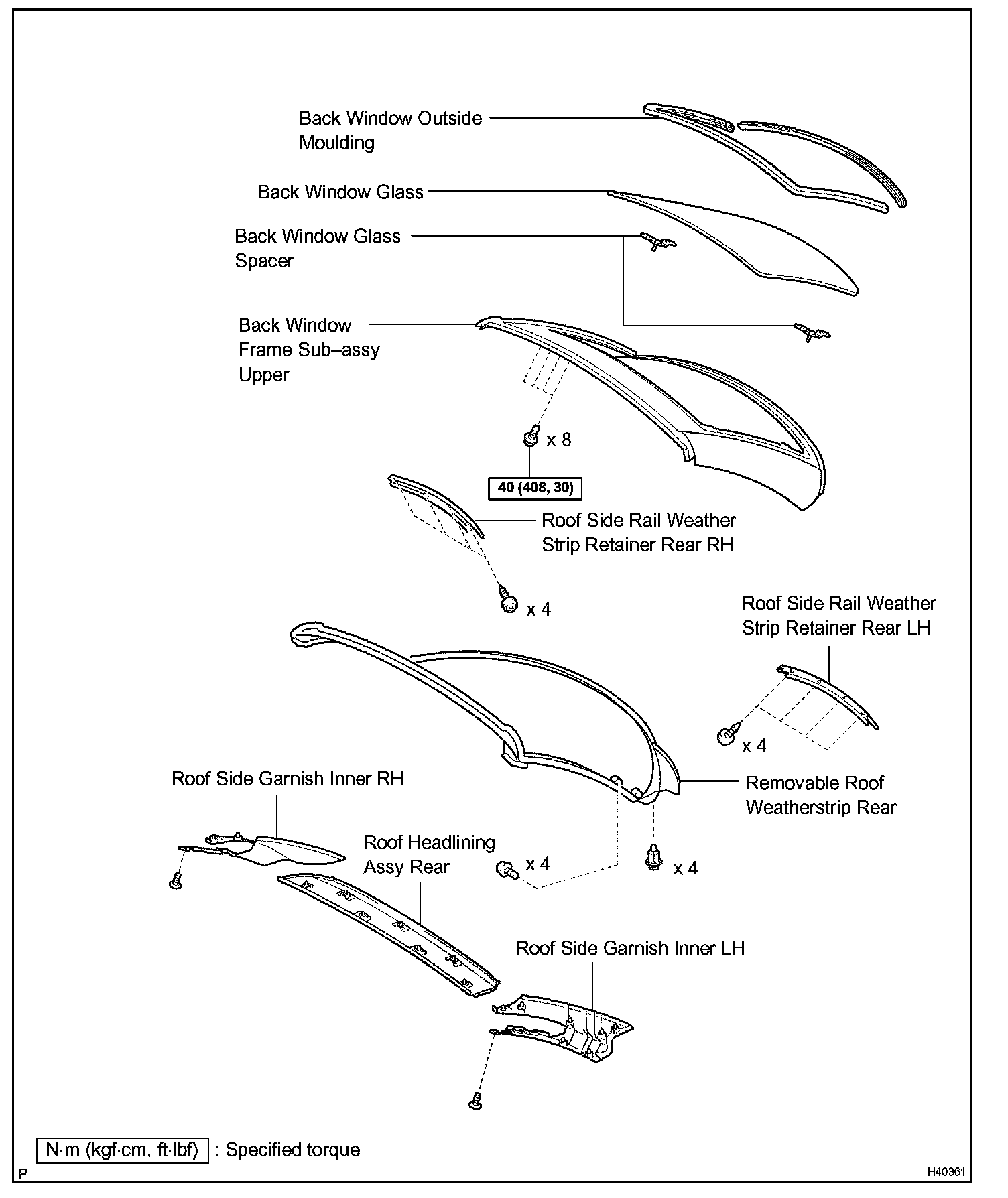

Back Window Frame Sub-Assy Upper:

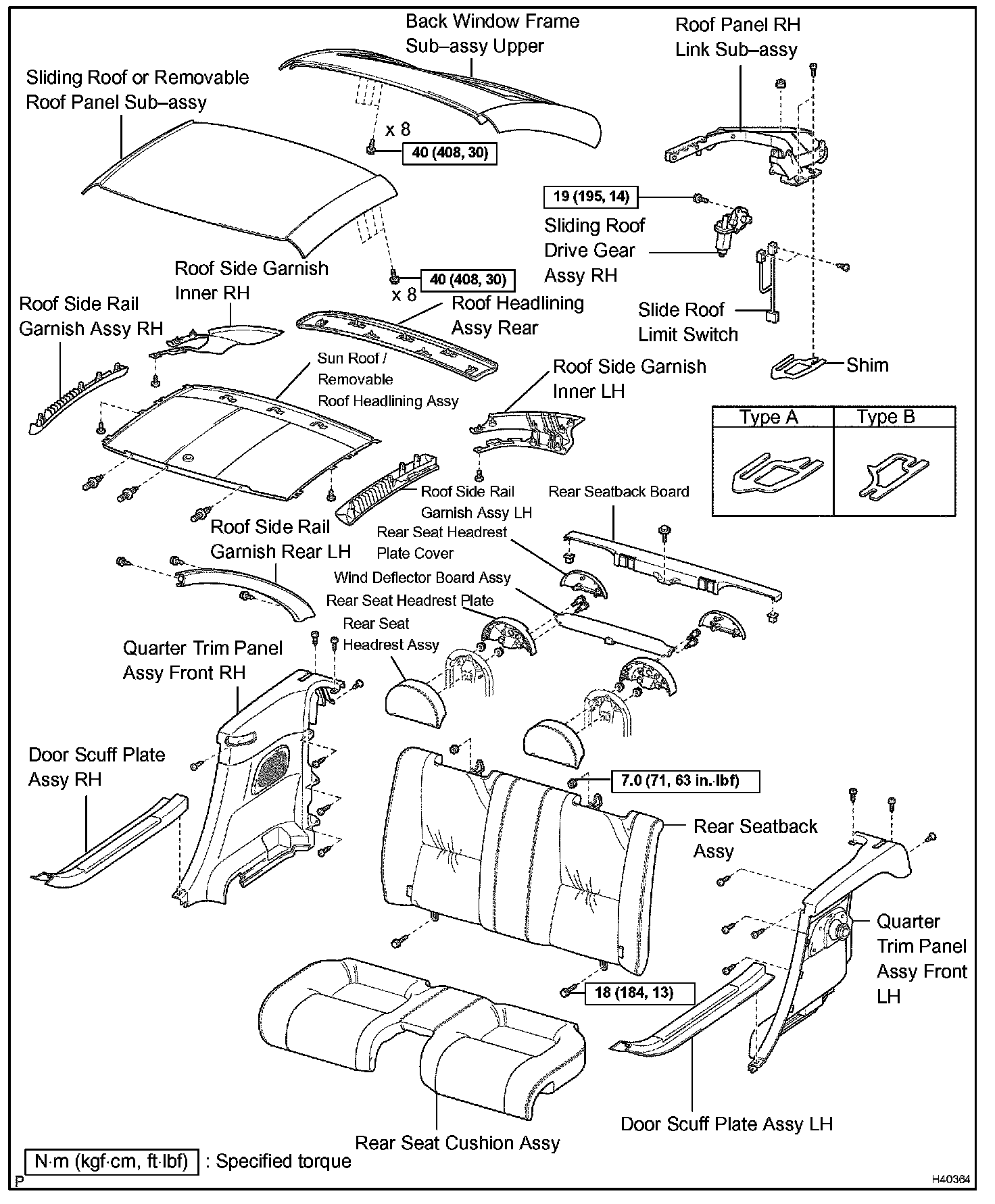

Roof Panel Link Sub-Assy Part 1:



Roof Panel Link Sub-Assy Part 2:

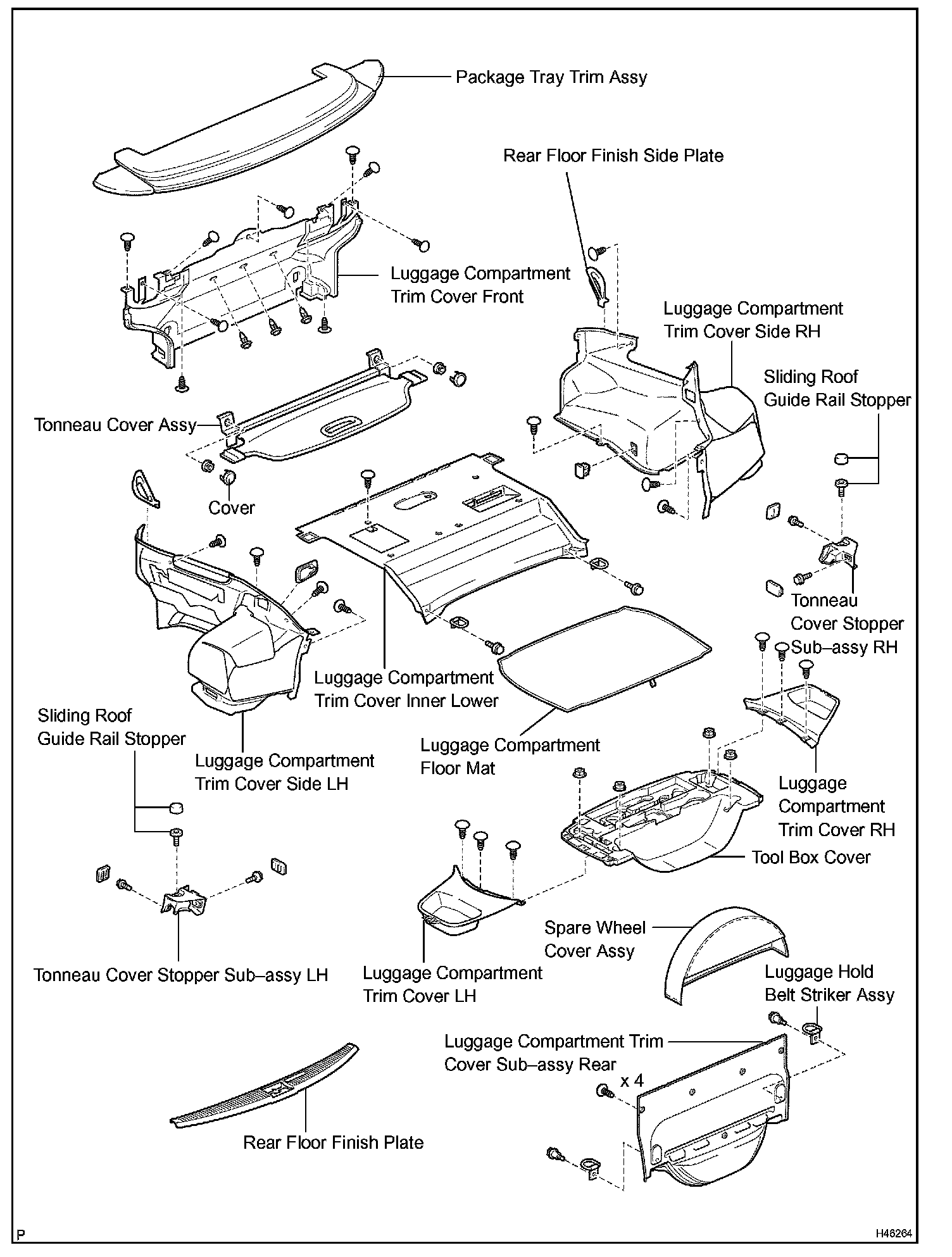

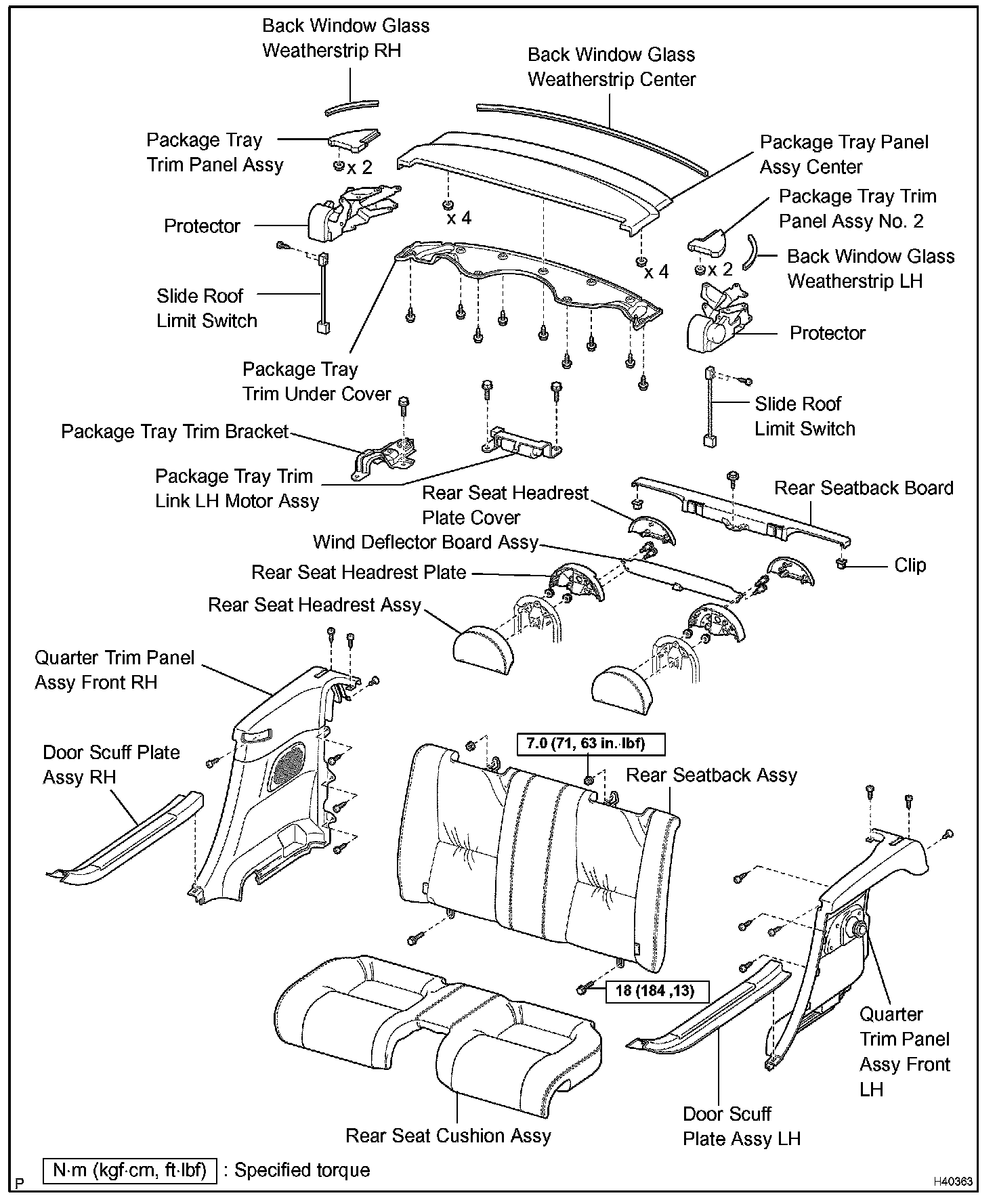

Package Tray Trim Assy:
