Trunk / Liftgate Hinge

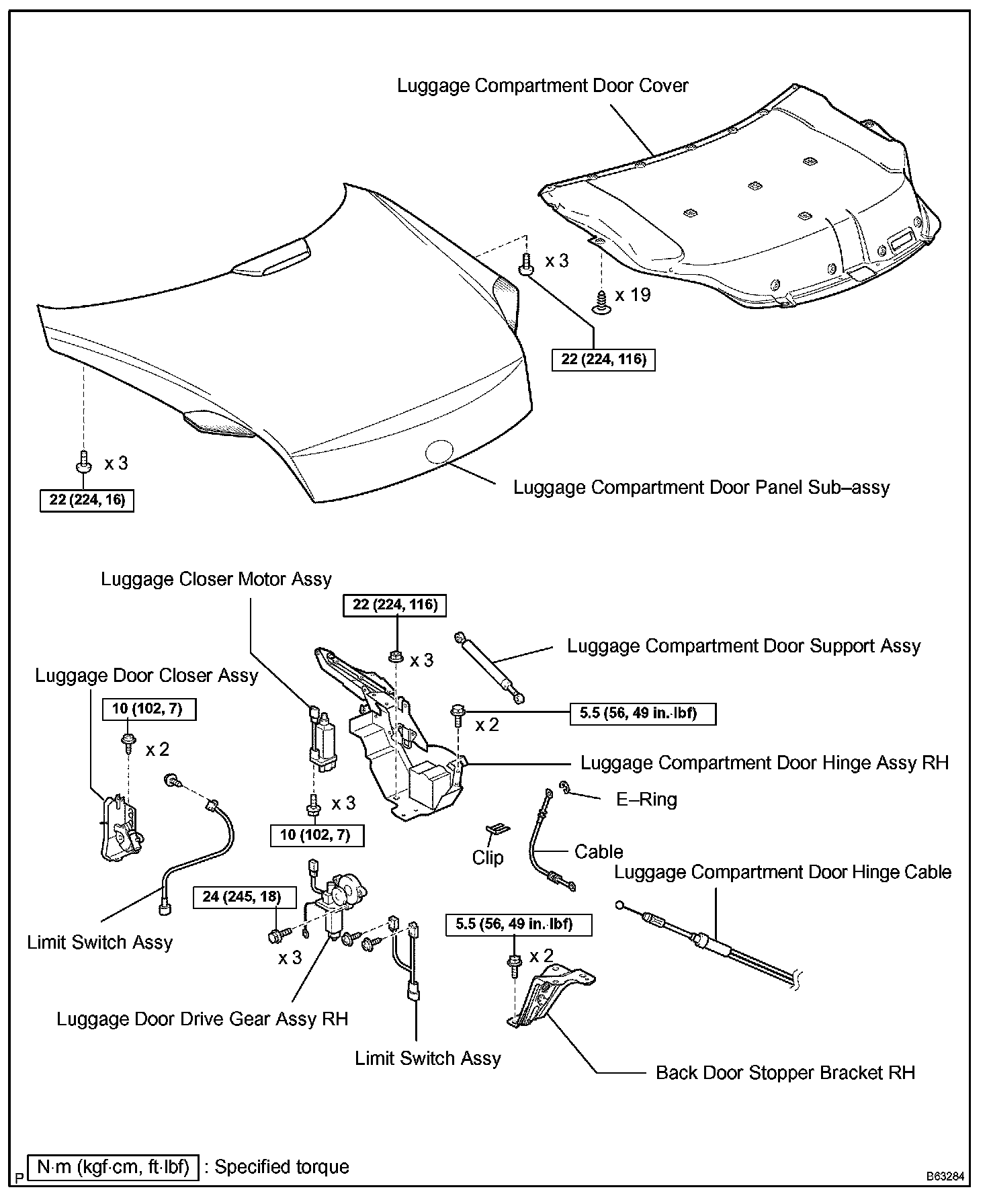

Luggage Compartment Door Hinge Part 1:



Luggage Compartment Door Hinge Part 2:
