Fuse Block: Locations

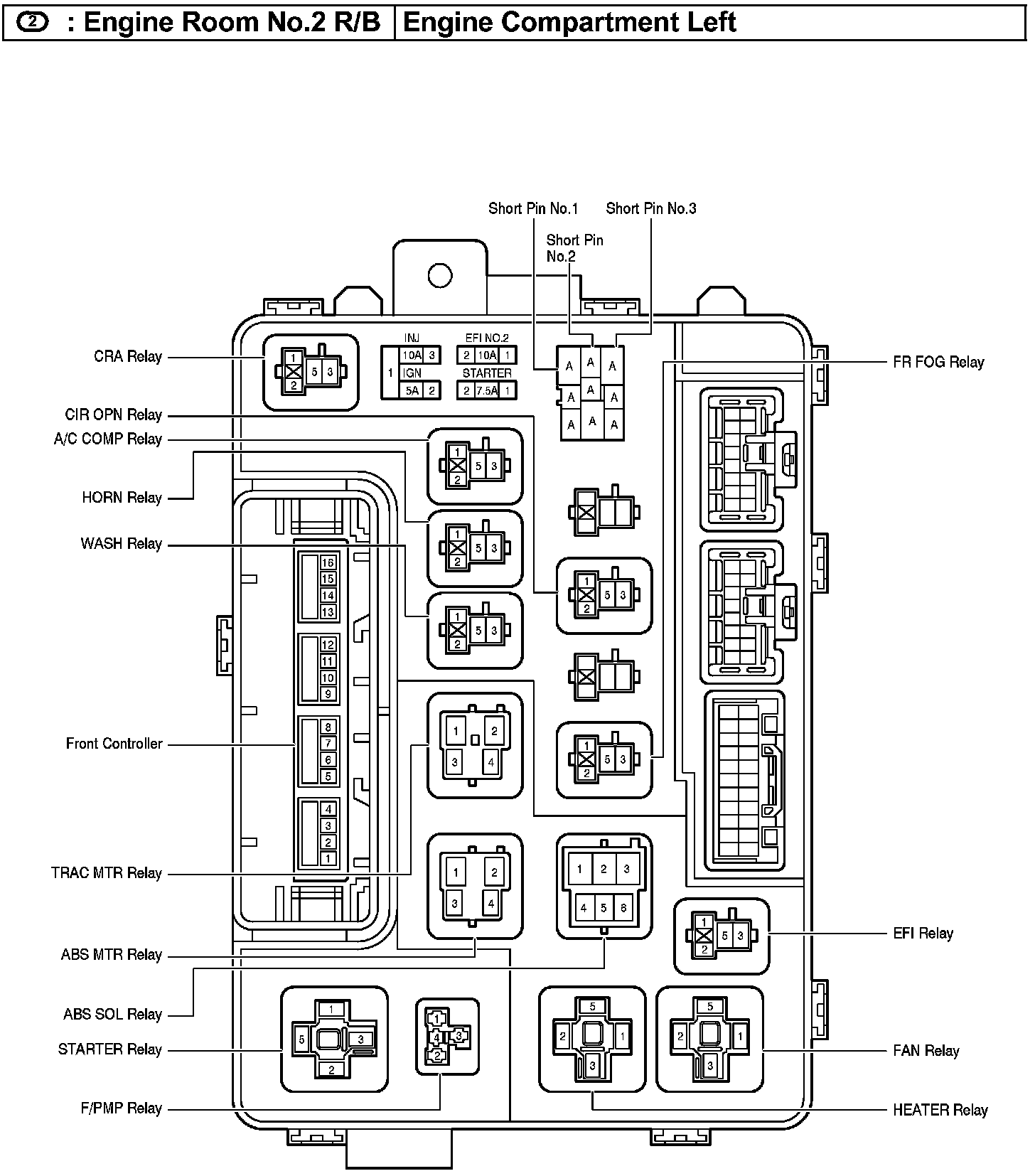

Relay Box Locations

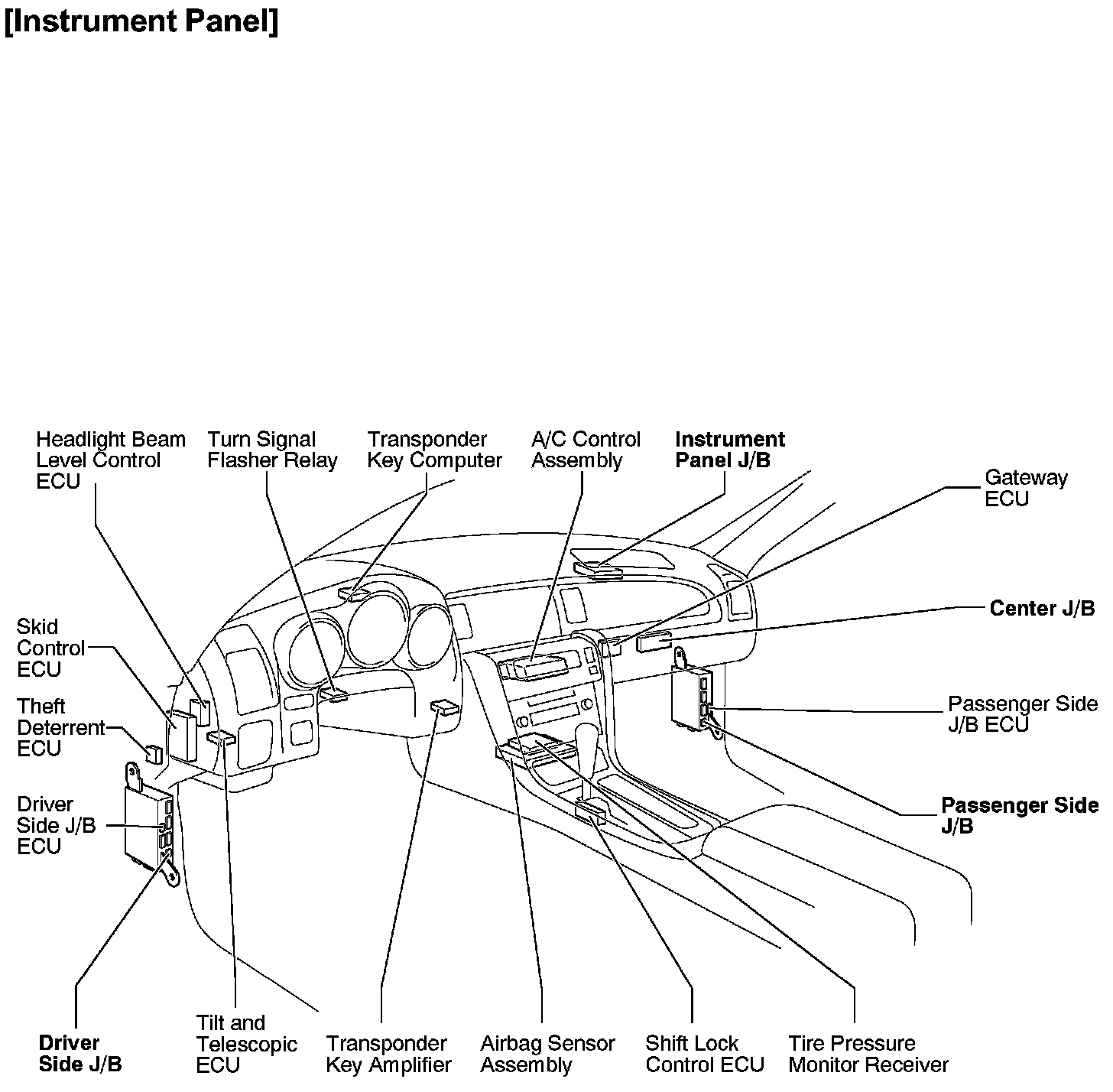

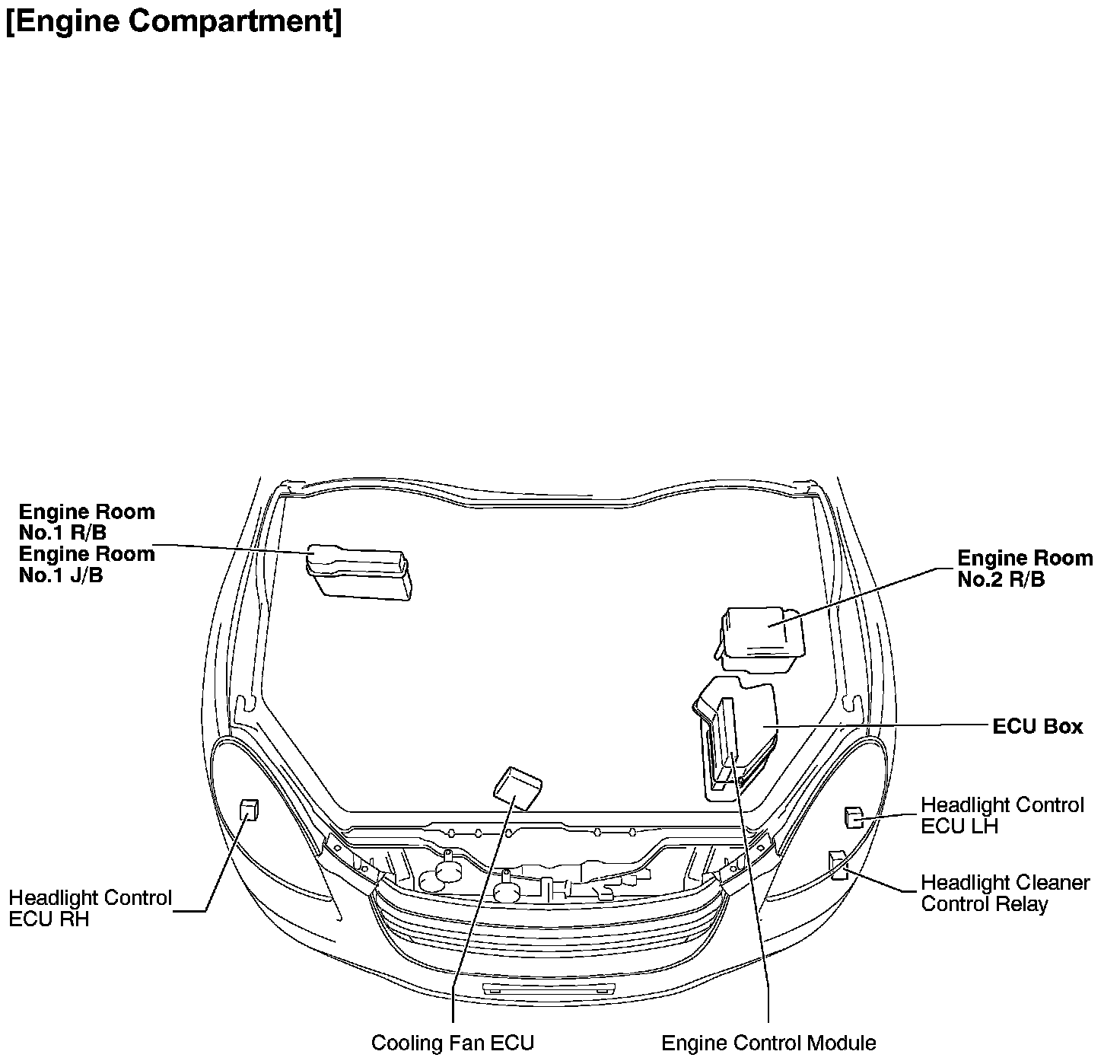

Relay & Fuse Locations

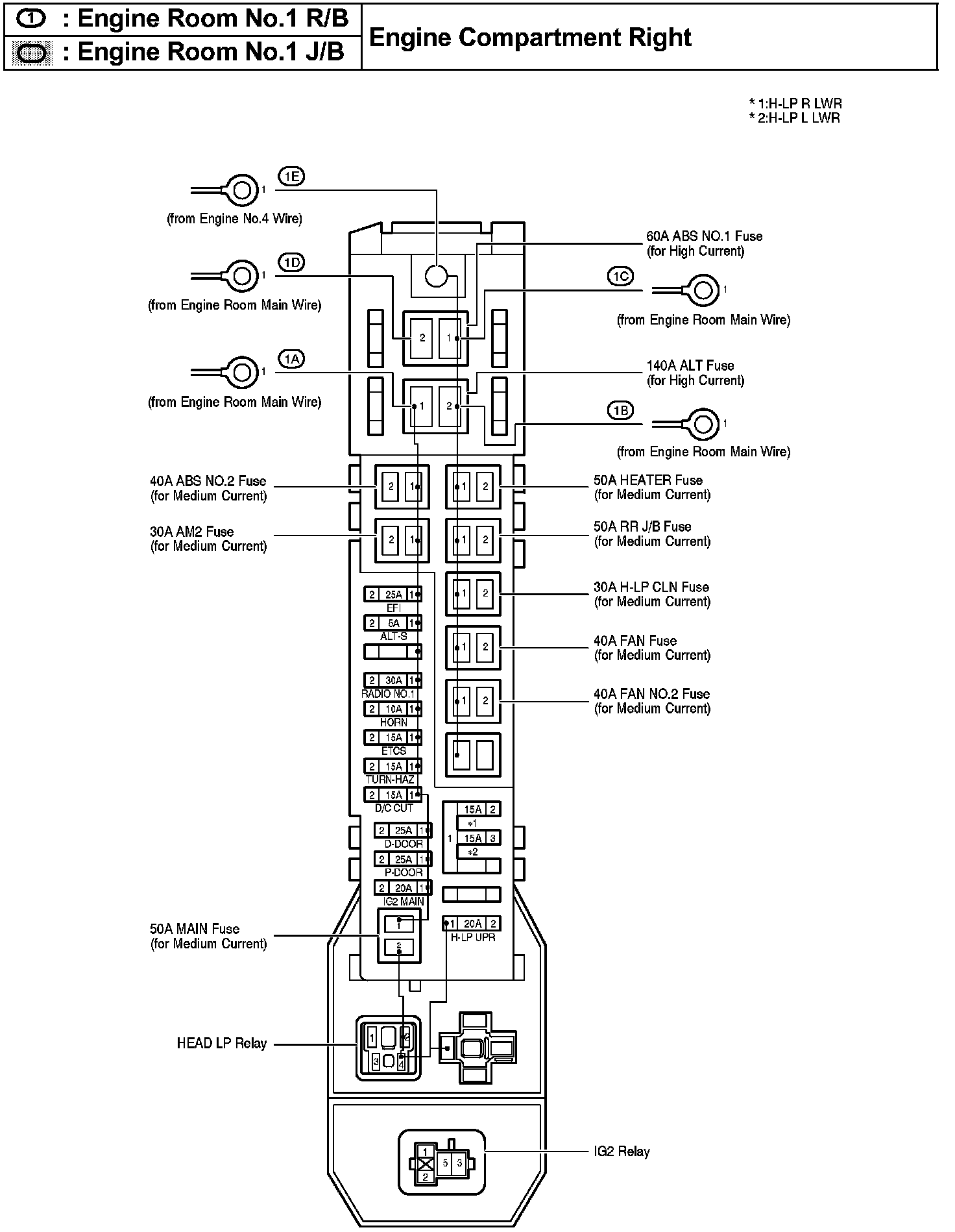

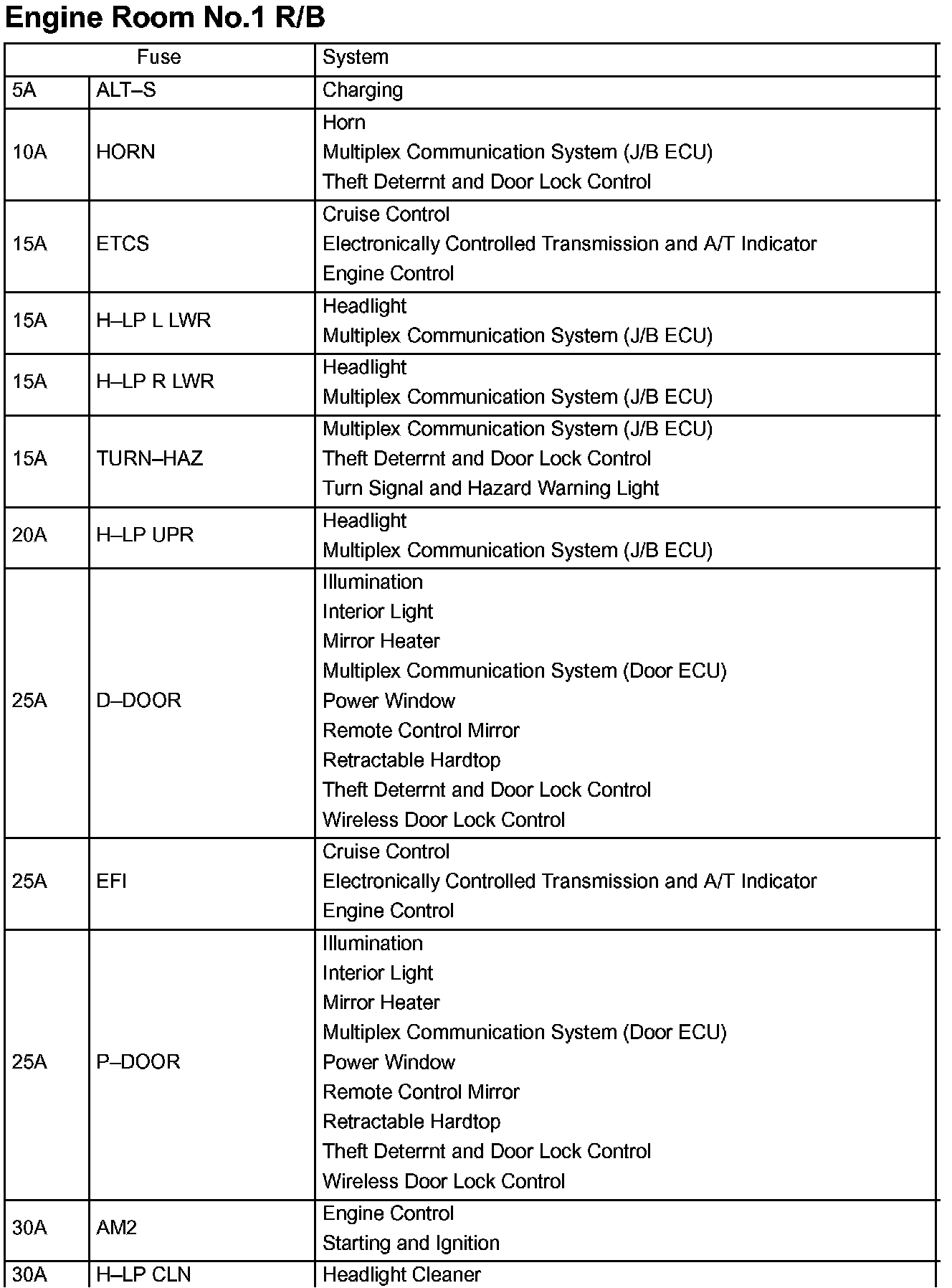

Engine Room Fuse ID

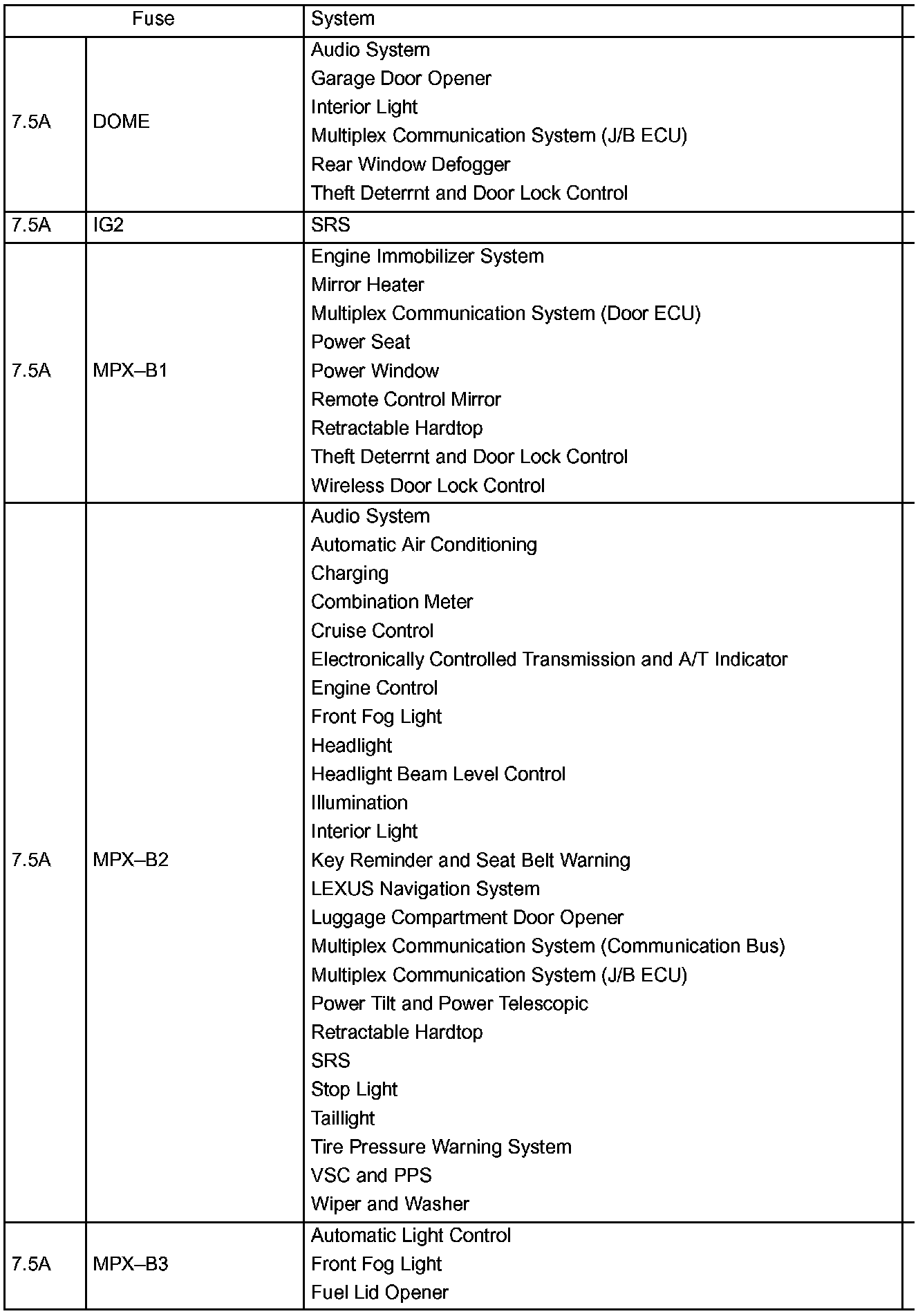

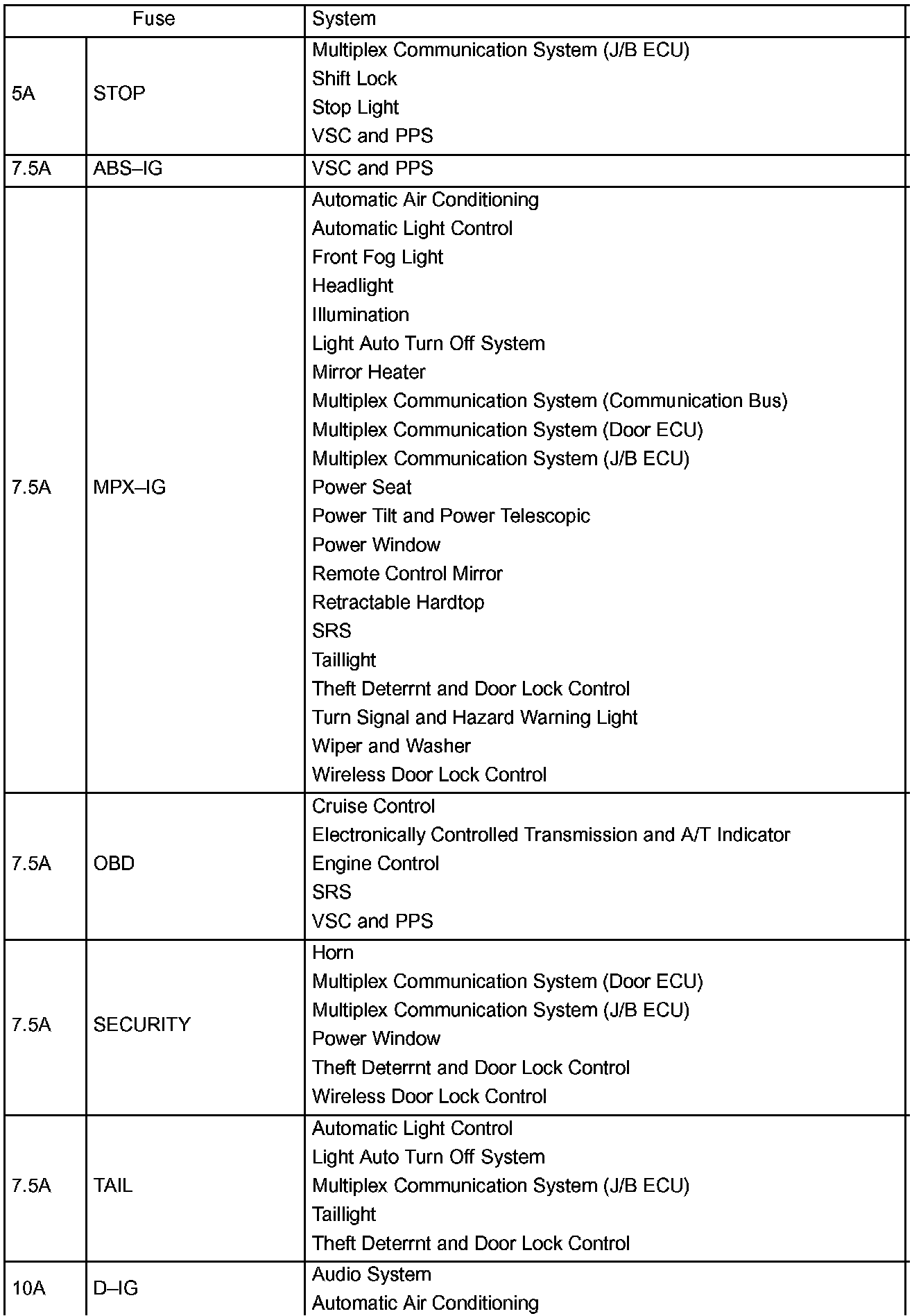

Driver Side J/B Fuse ID

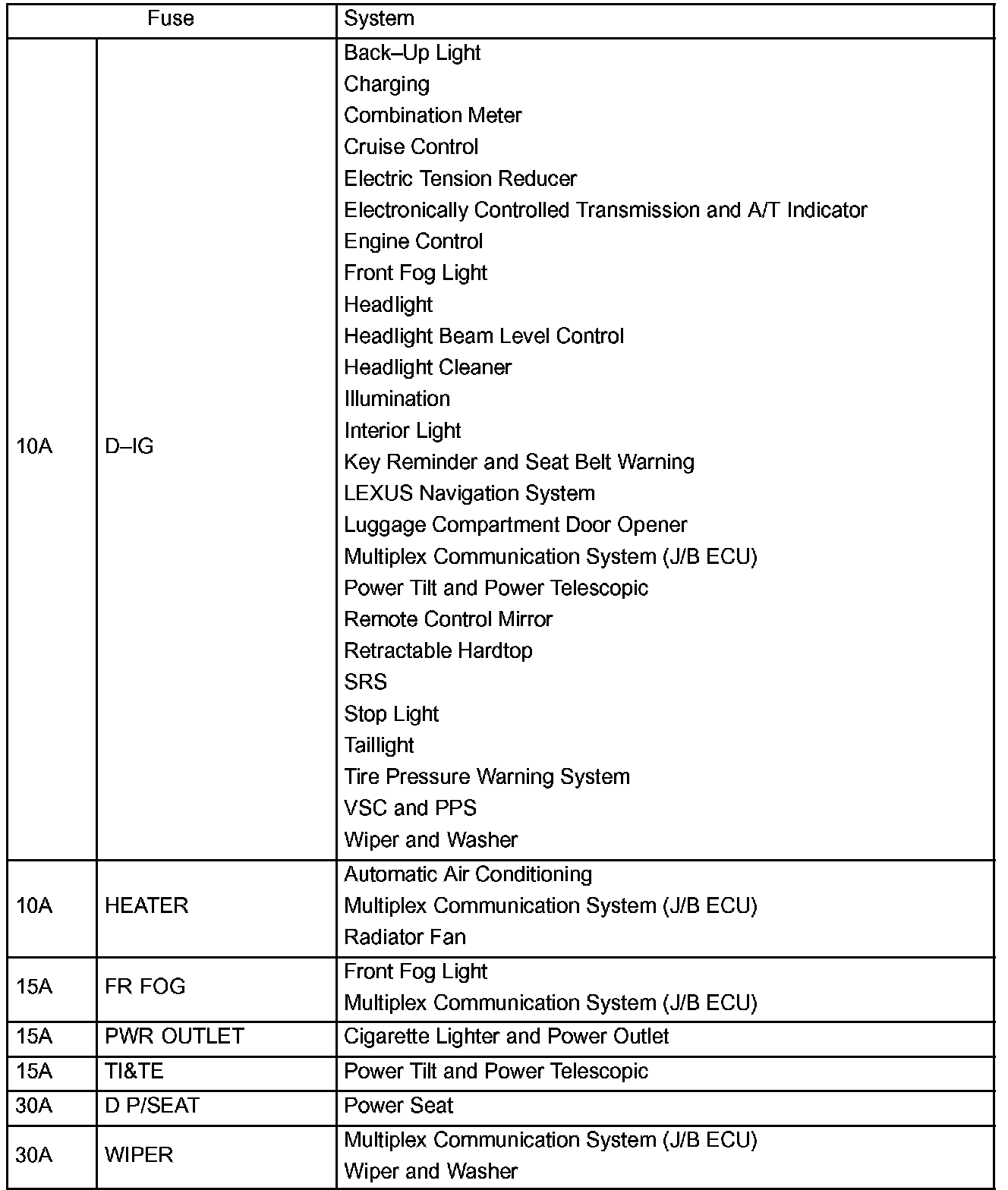

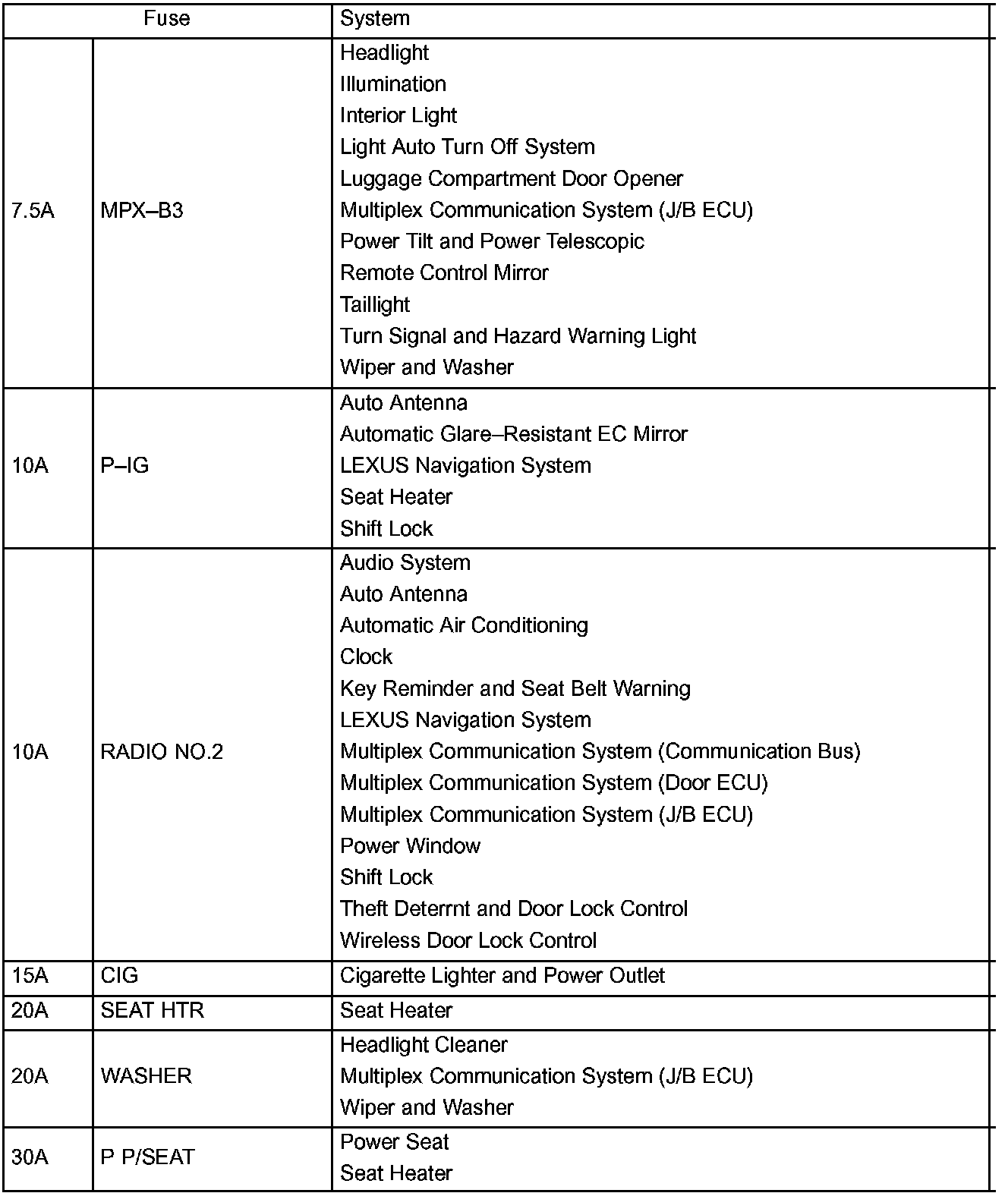

Passenger Side J/B Fuse ID

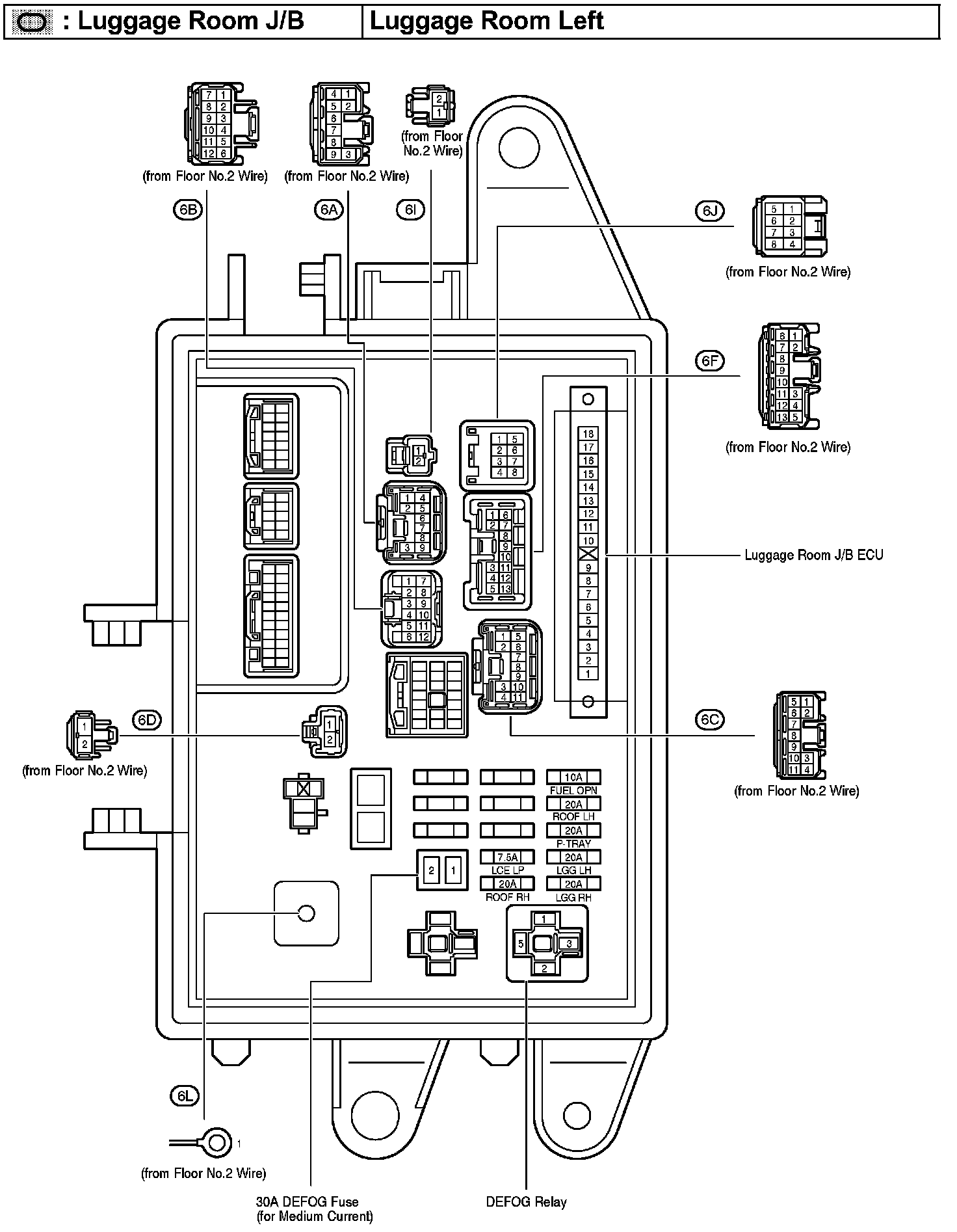

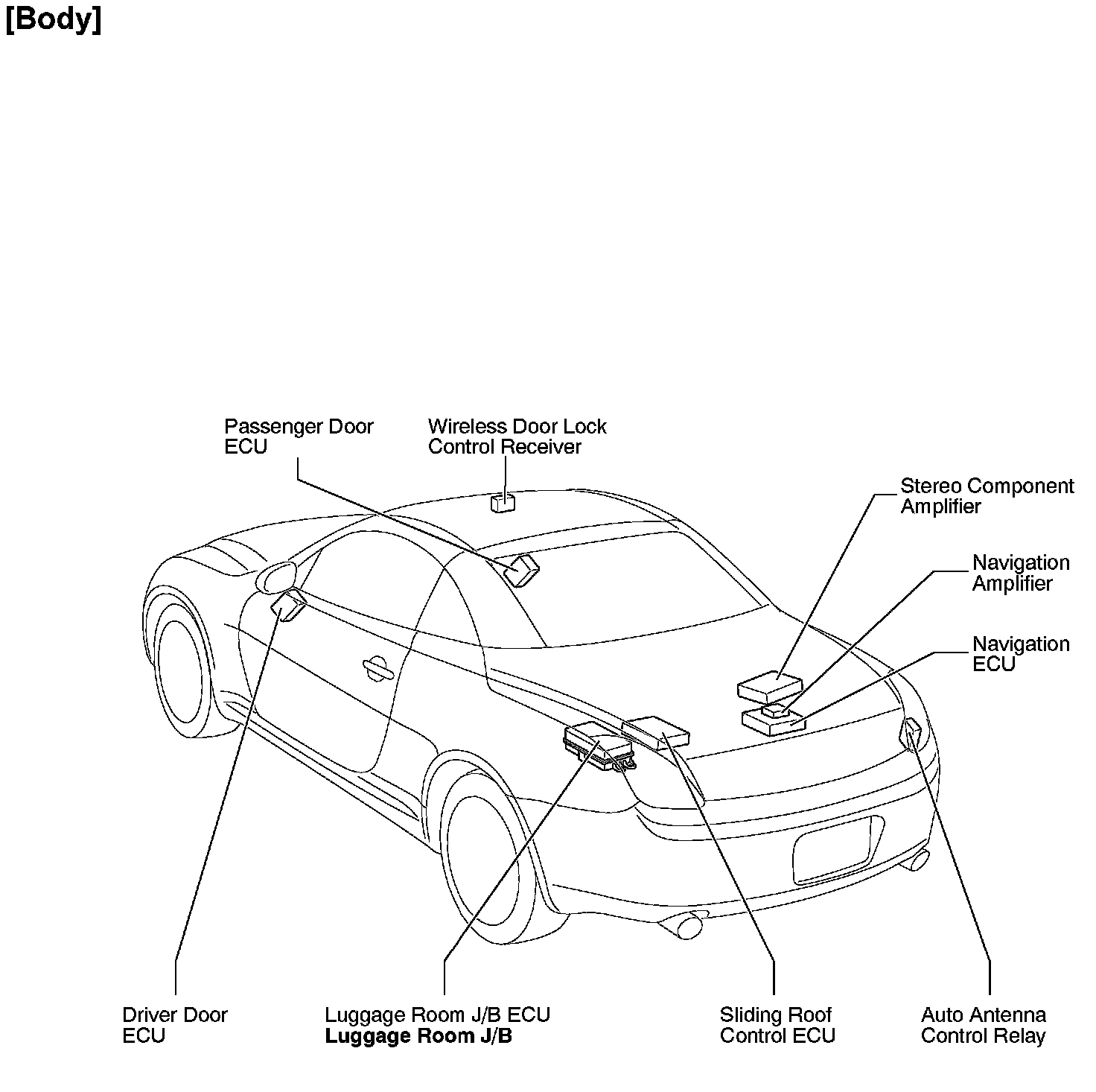

Luggage Room J/B Fuse ID
