Computers and Control Systems: Description and Operation

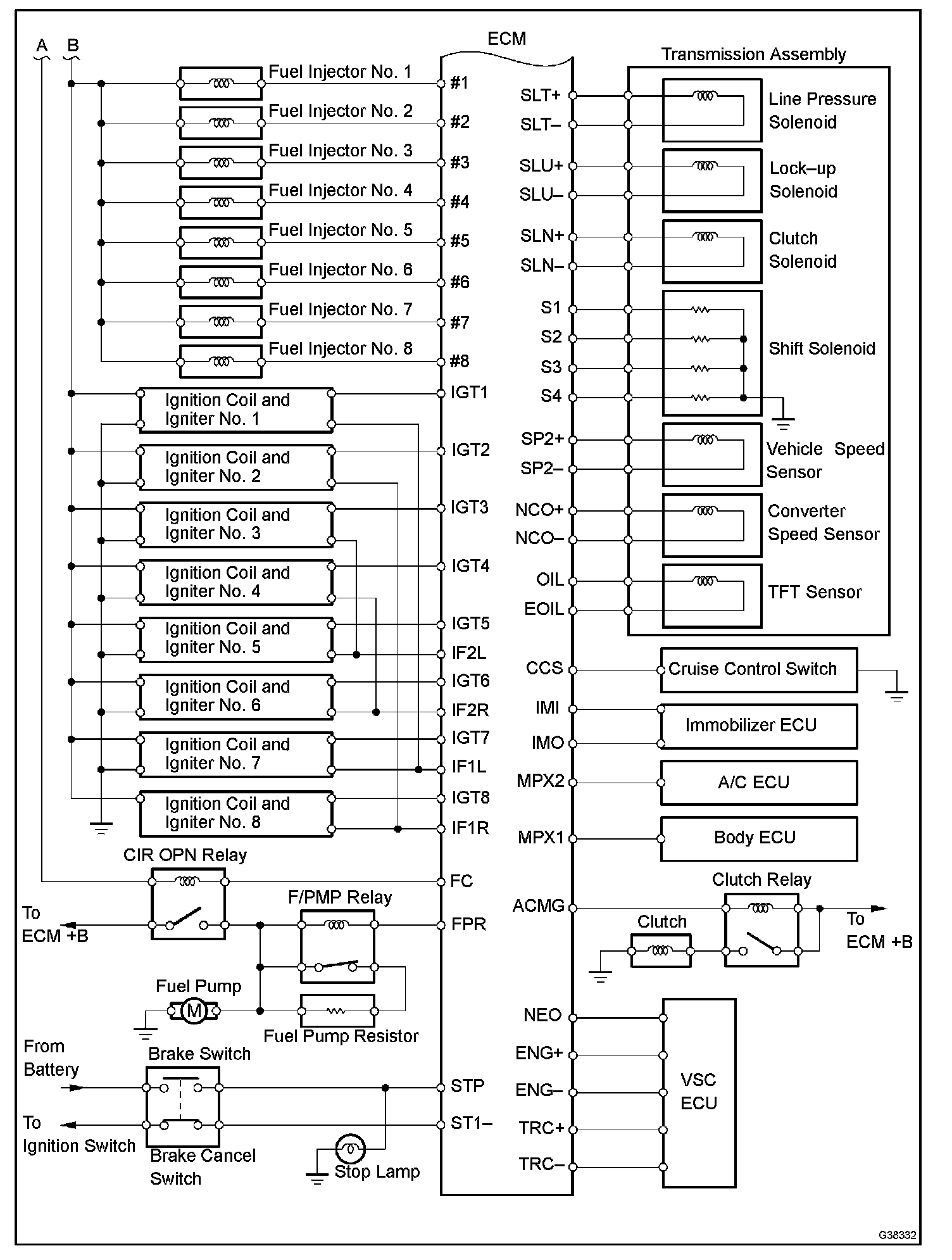

System Diagram Part 1:

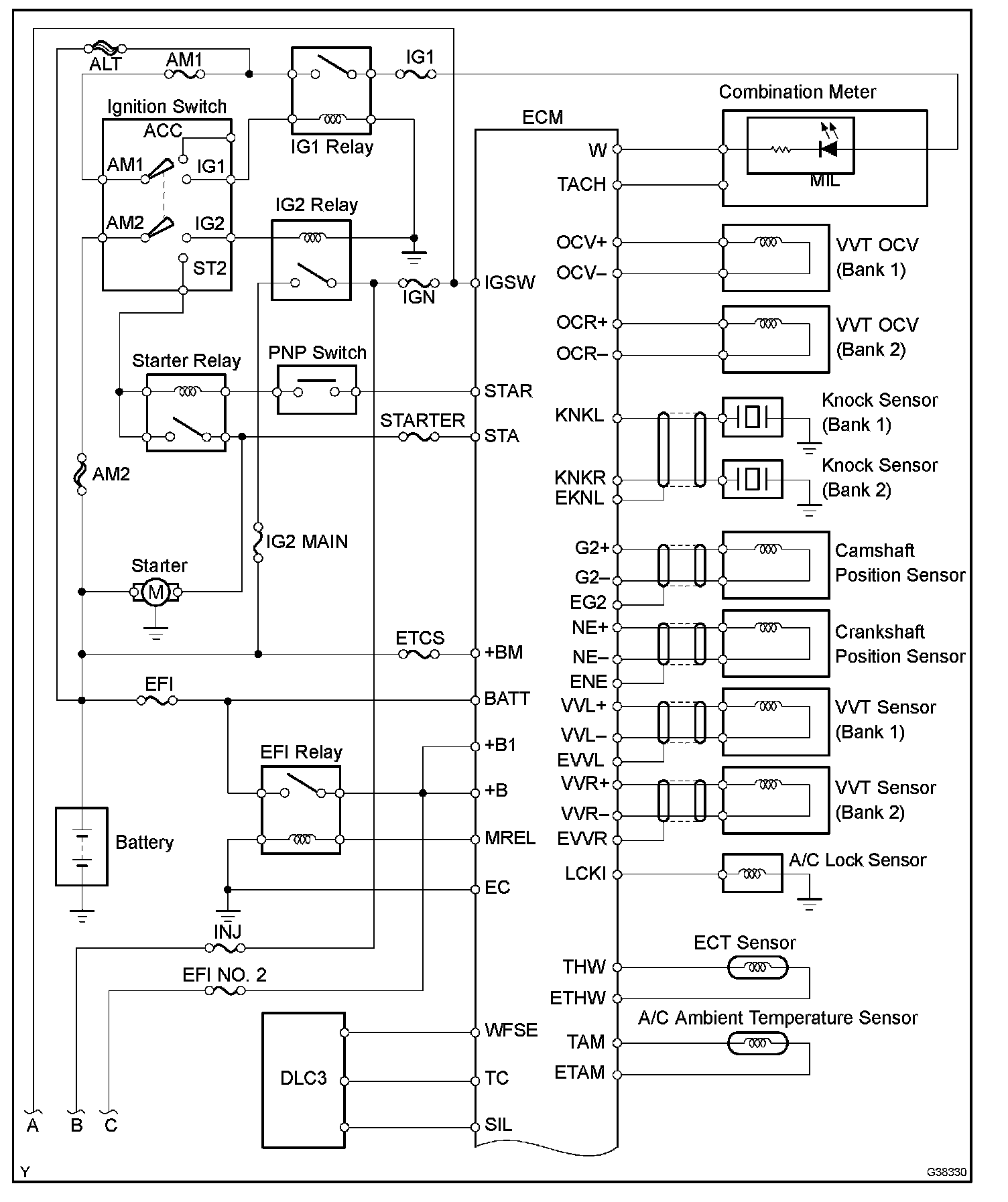

System Diagram Part 2:

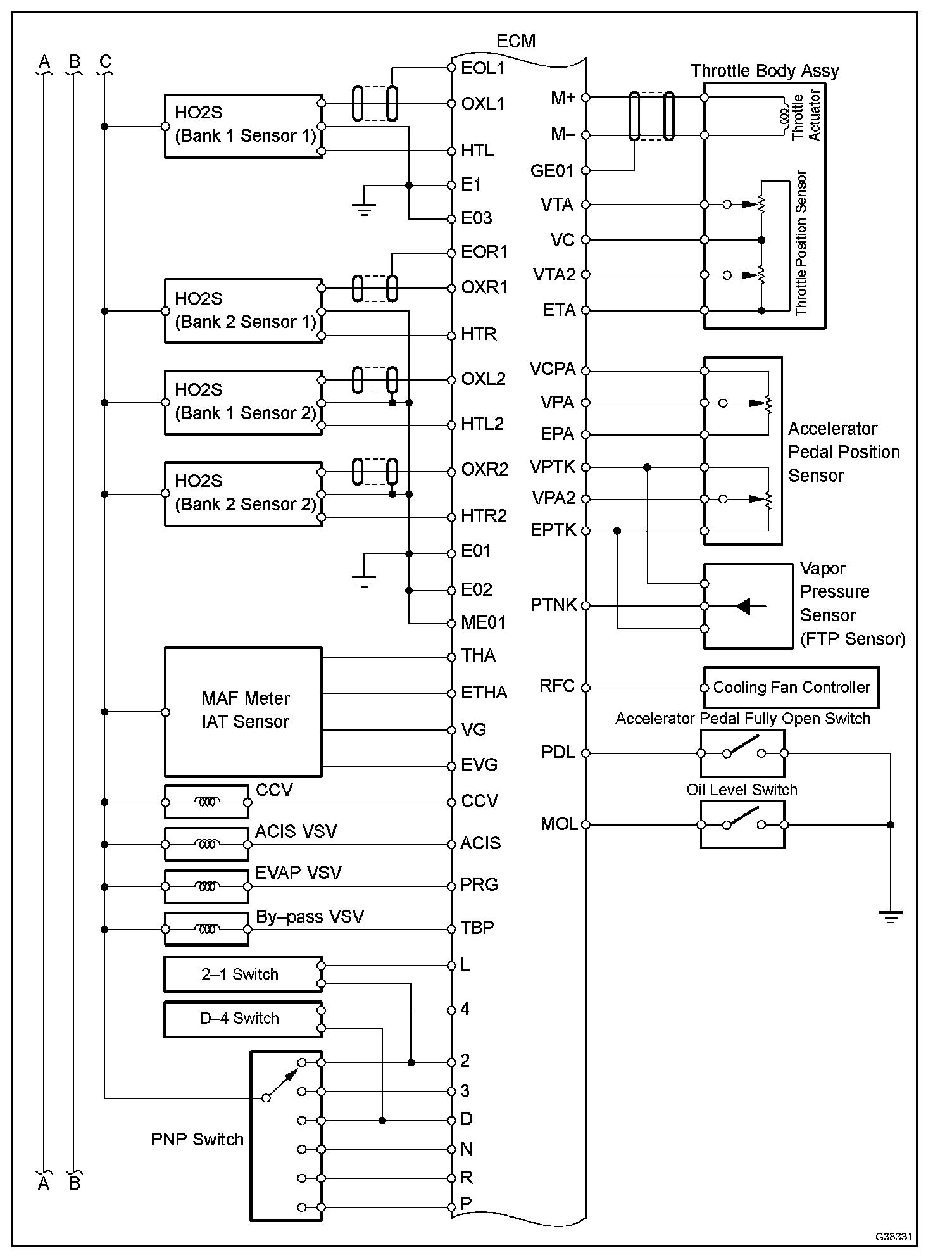

System Diagram Part 3:



System Diagram:
