Main Relay (Computer/Fuel System): Locations

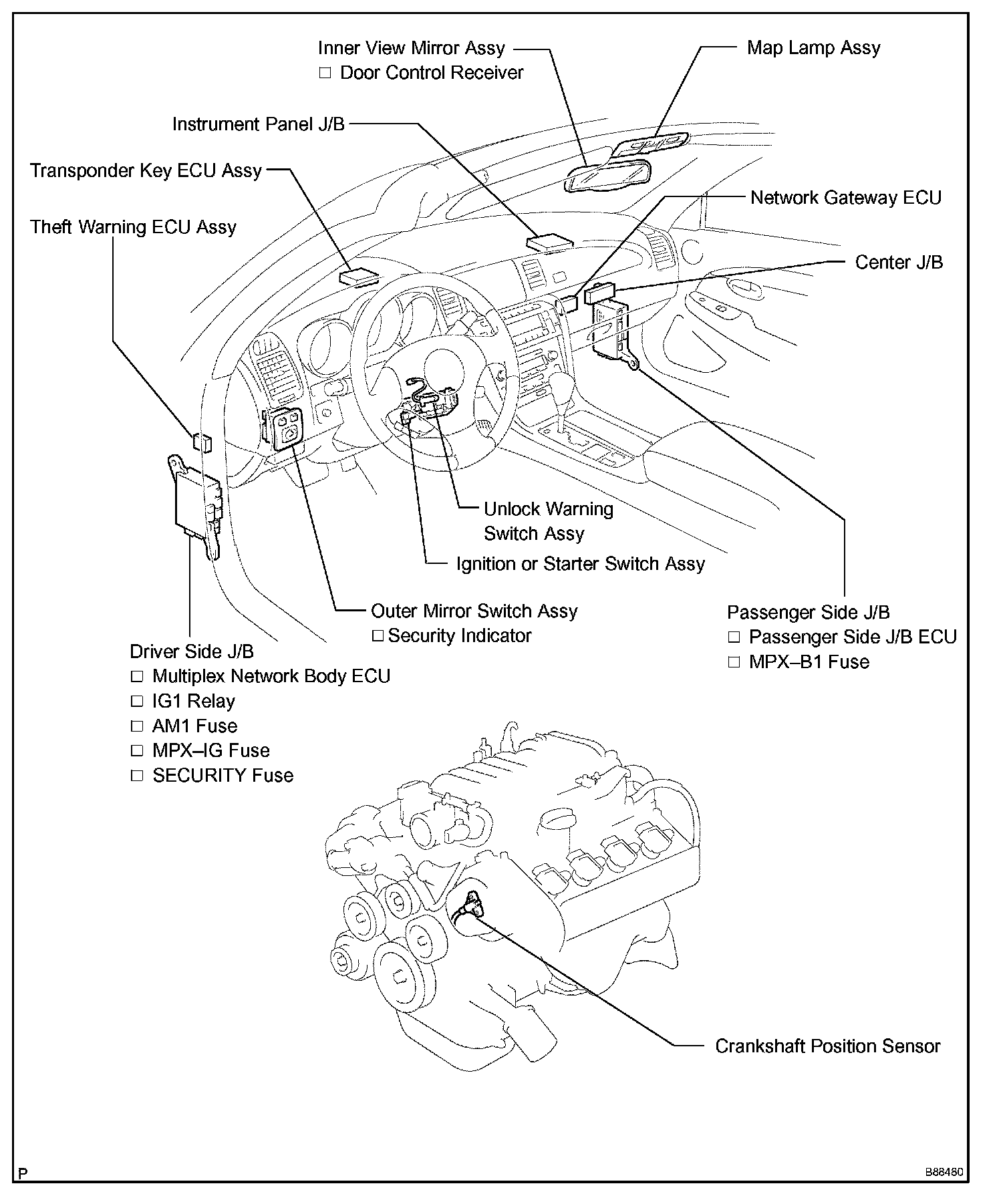

Theft Deterrent System:

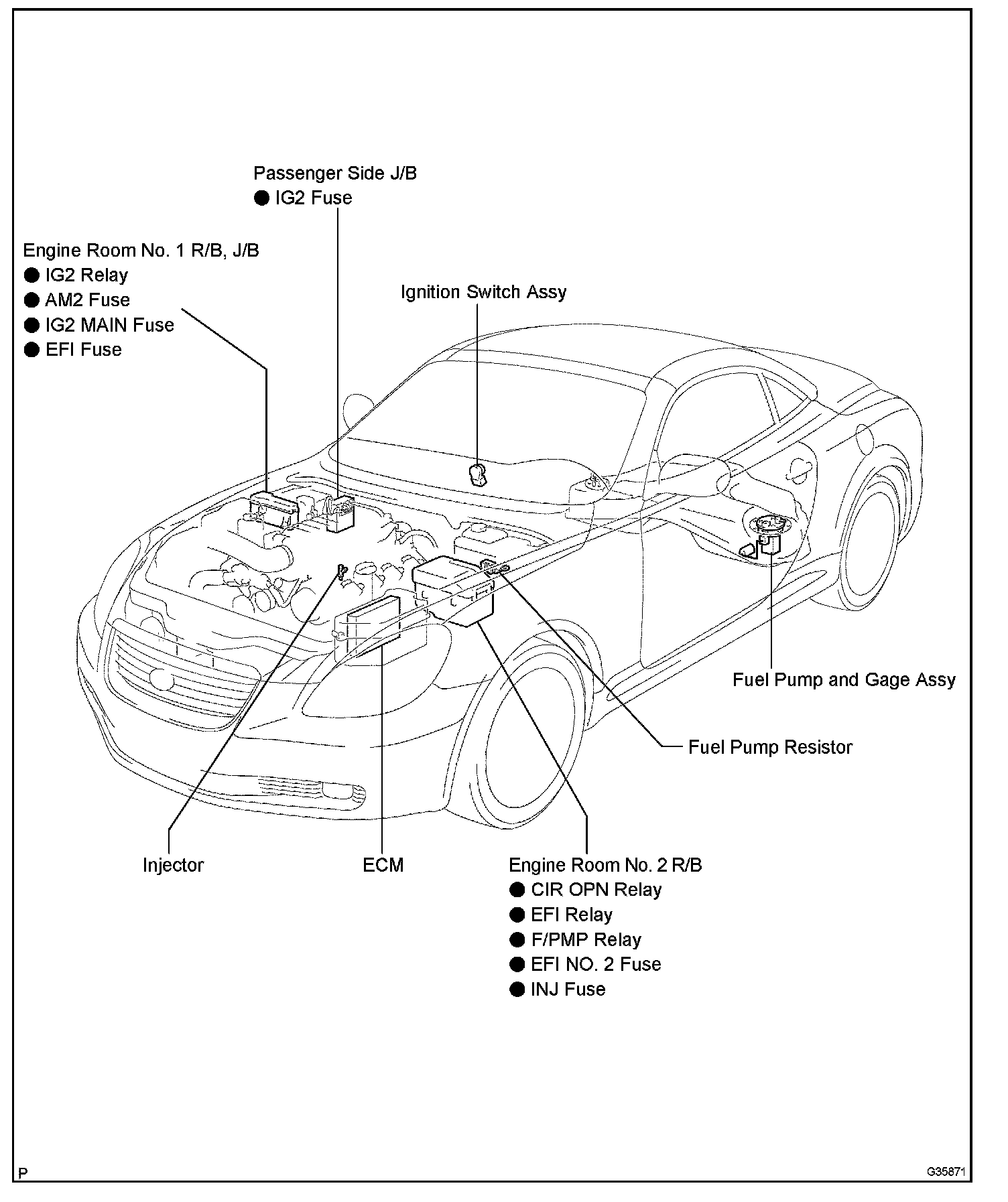

Fuel System:



Emission Control System:

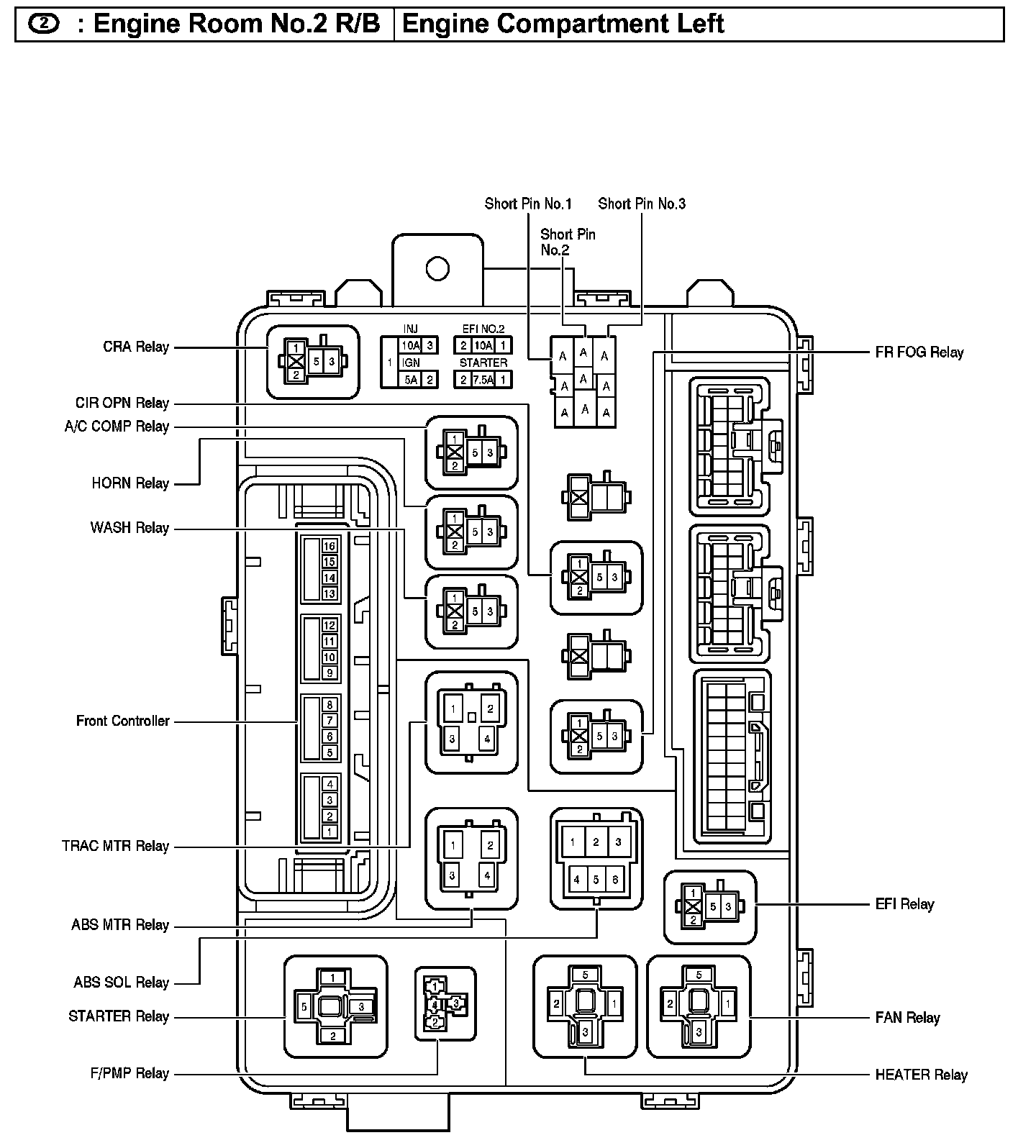

Engine Room No.2 R/B - Engine Compartment Left:
