Control Module HVAC: Testing and Inspection

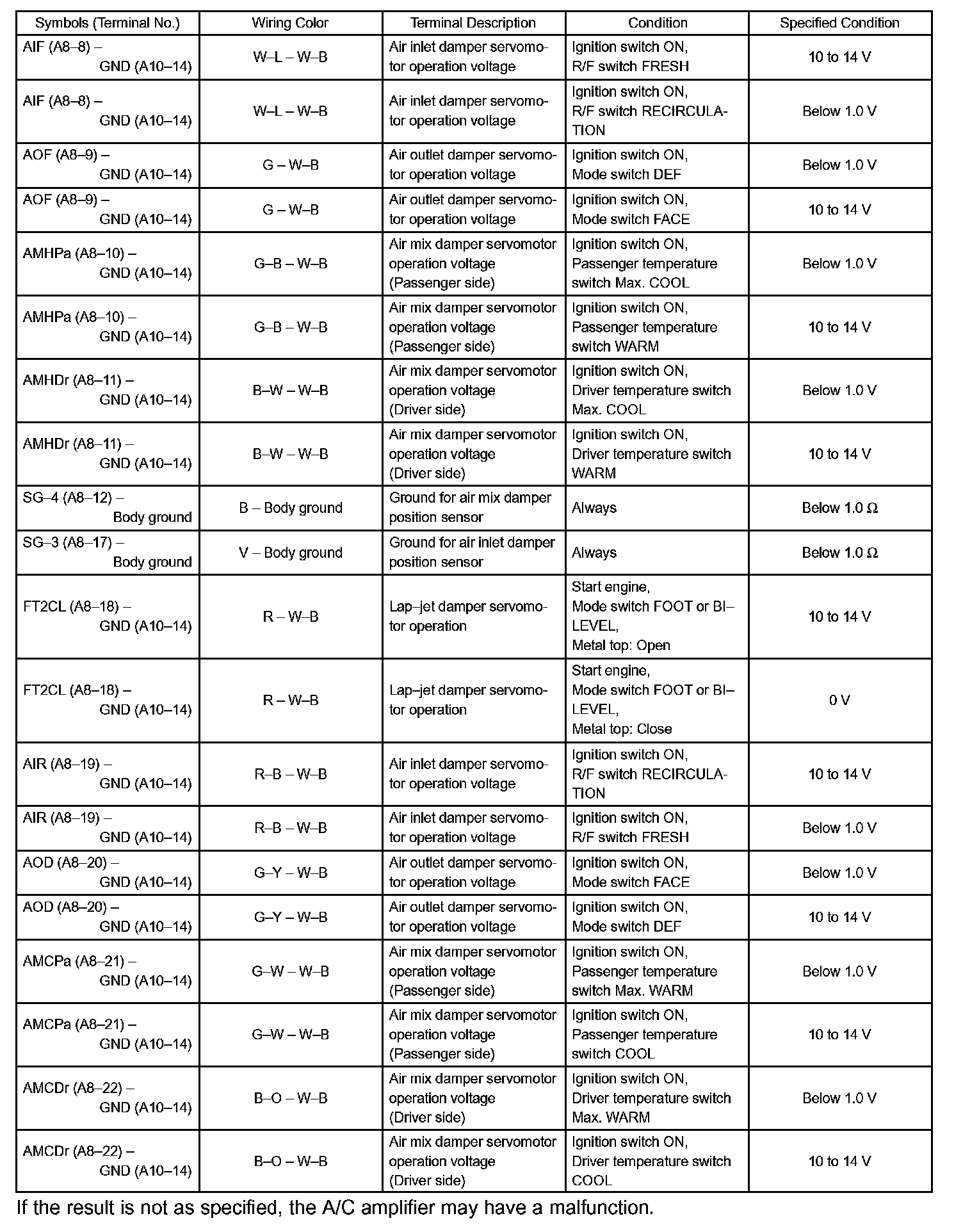

Terminals Of Control Module/Pinouts - Check Air Conditioning Amplifier Assy (A/C Control Assy) Part 1:

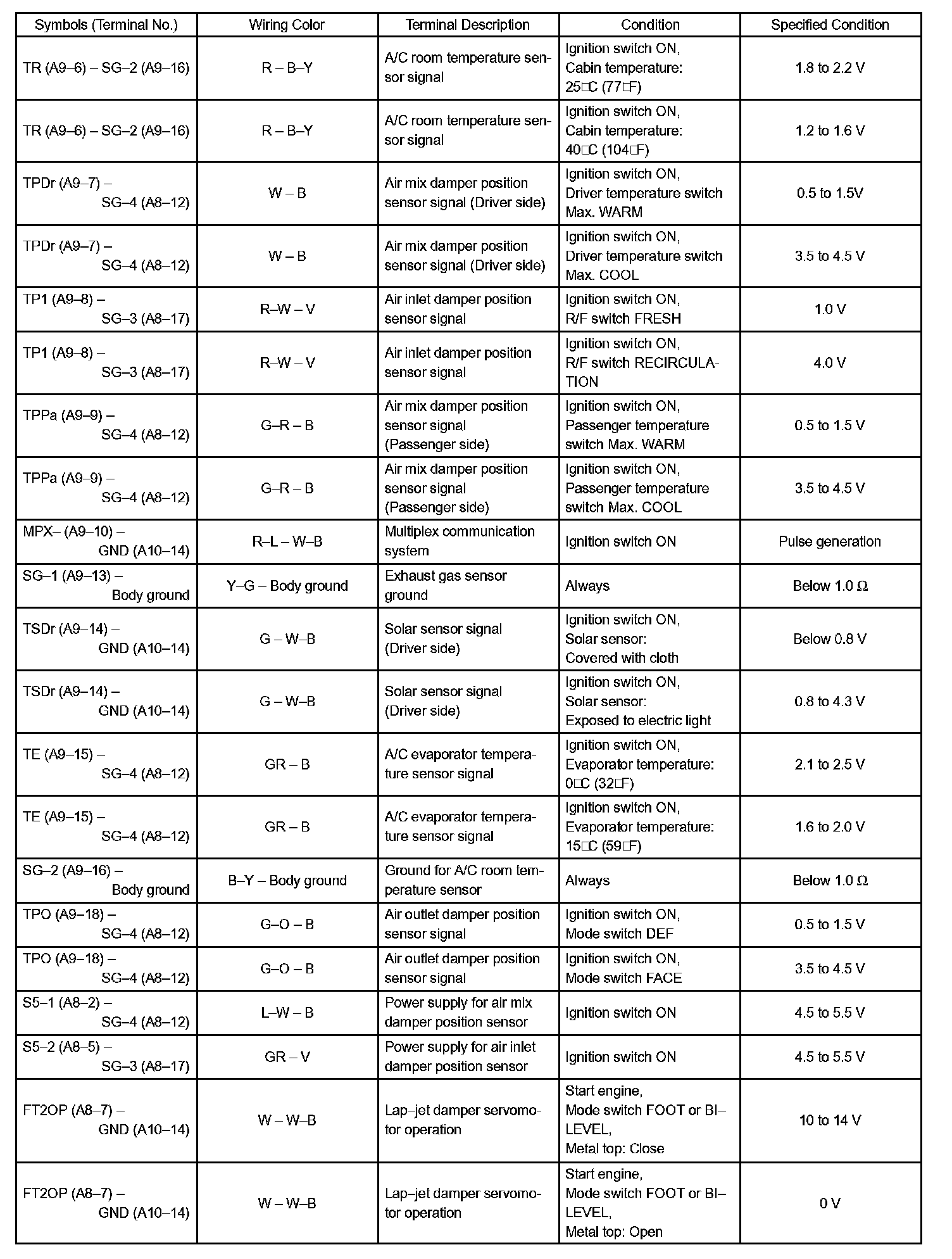

Terminals Of Control Module/Pinouts - Check Air Conditioning Amplifier Assy (A/C Control Assy) Part 2:

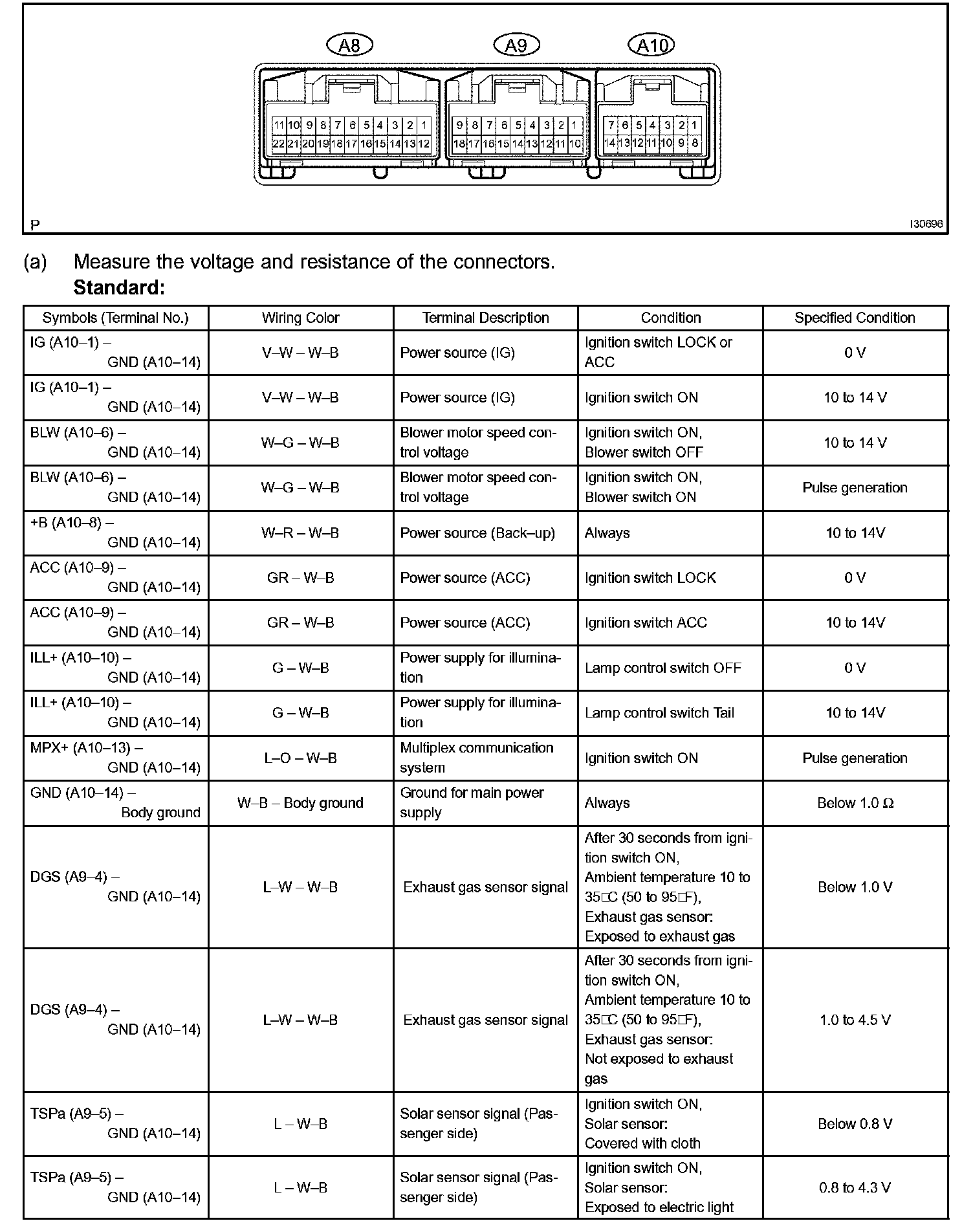

Terminals Of Control Module/Pinouts - Check Air Conditioning Amplifier Assy (A/C Control Assy) Part 3:
