Home >> Lexus >> 2005 >> SC 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Ignition Switch >> Locations

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

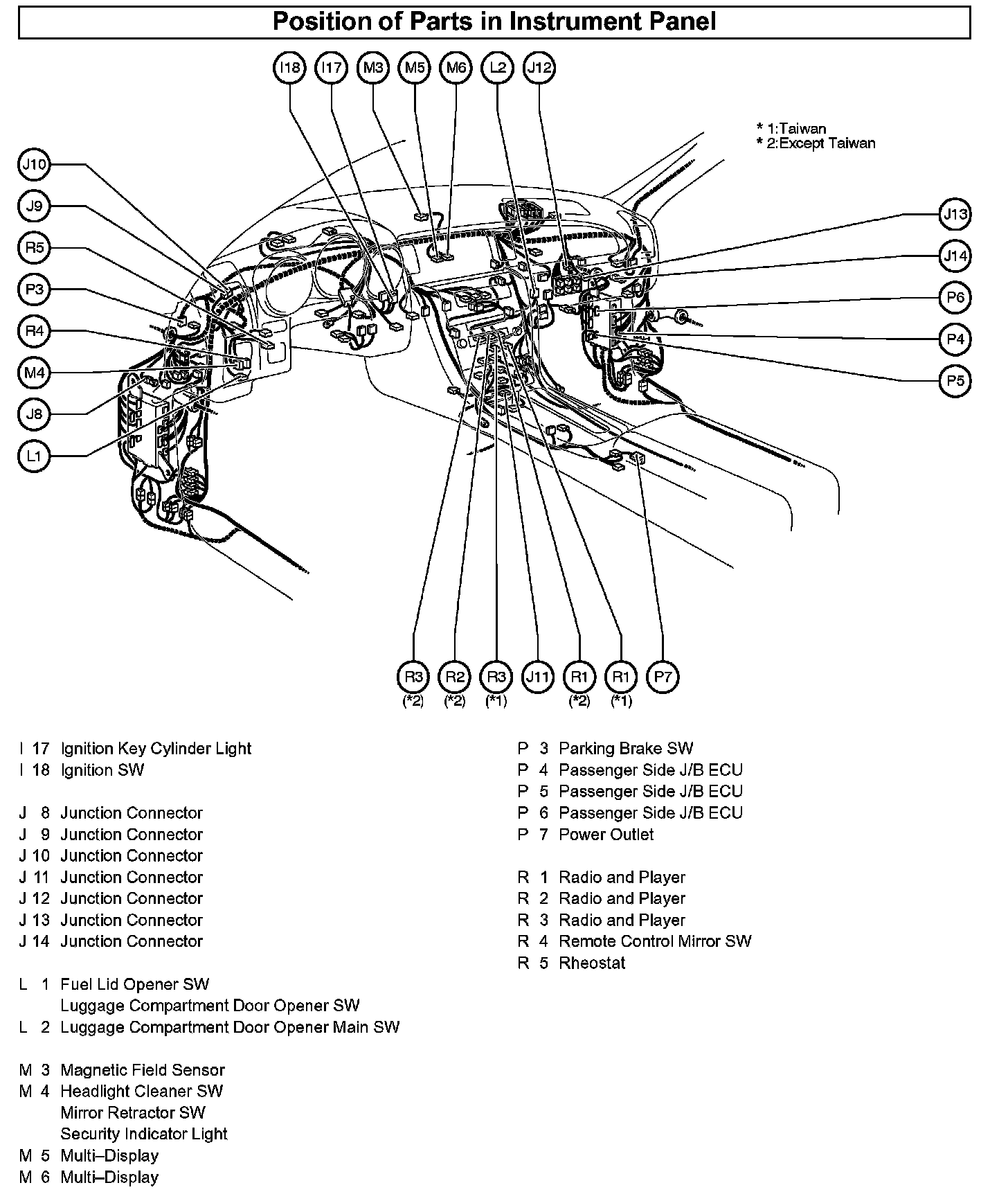

Ignition Switch: Locations

Ig - Rh:
