Data List/Active Test

DATA LIST
HINT:

Using the hand-held tester's DATA LIST allows switch, sensor, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.
1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch ON.
3. Read the DATA LIST according to the display on the tester.
  Steering pad switch modulator:

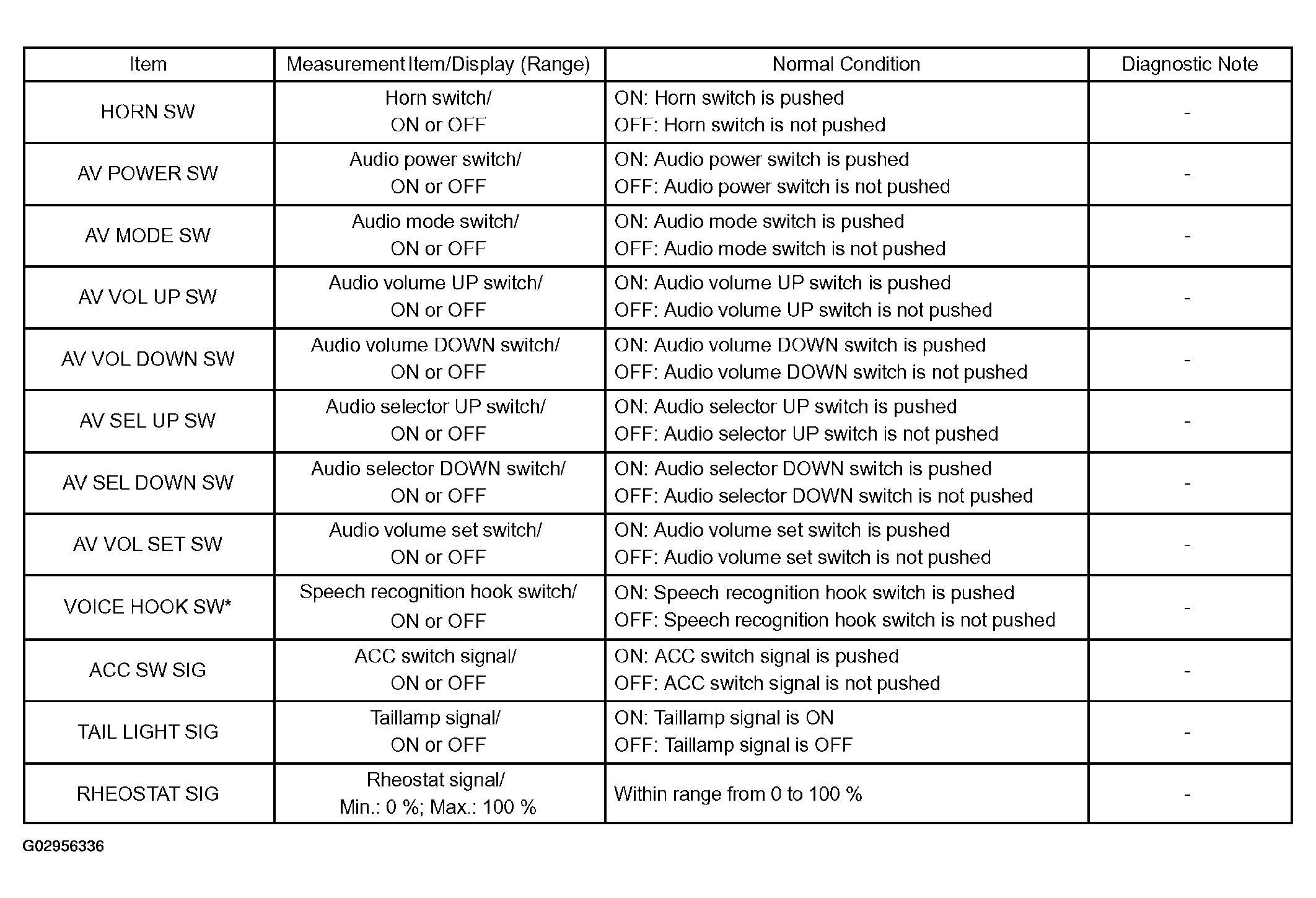

  Fig 1: Data List Reference Table
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  *: w/ LEXUS navigation system
