Diagnostic Trouble Code Table

Fig 1: Diagnostic Trouble Code Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Titles for each unit below are stated in the following order: part name (physical address)[name indicated by DTC].

1. RADIO RECEIVER ASSY (Physical address: 190) [AUDIO H/U]
   1. Logical address: 01 (Communication control)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

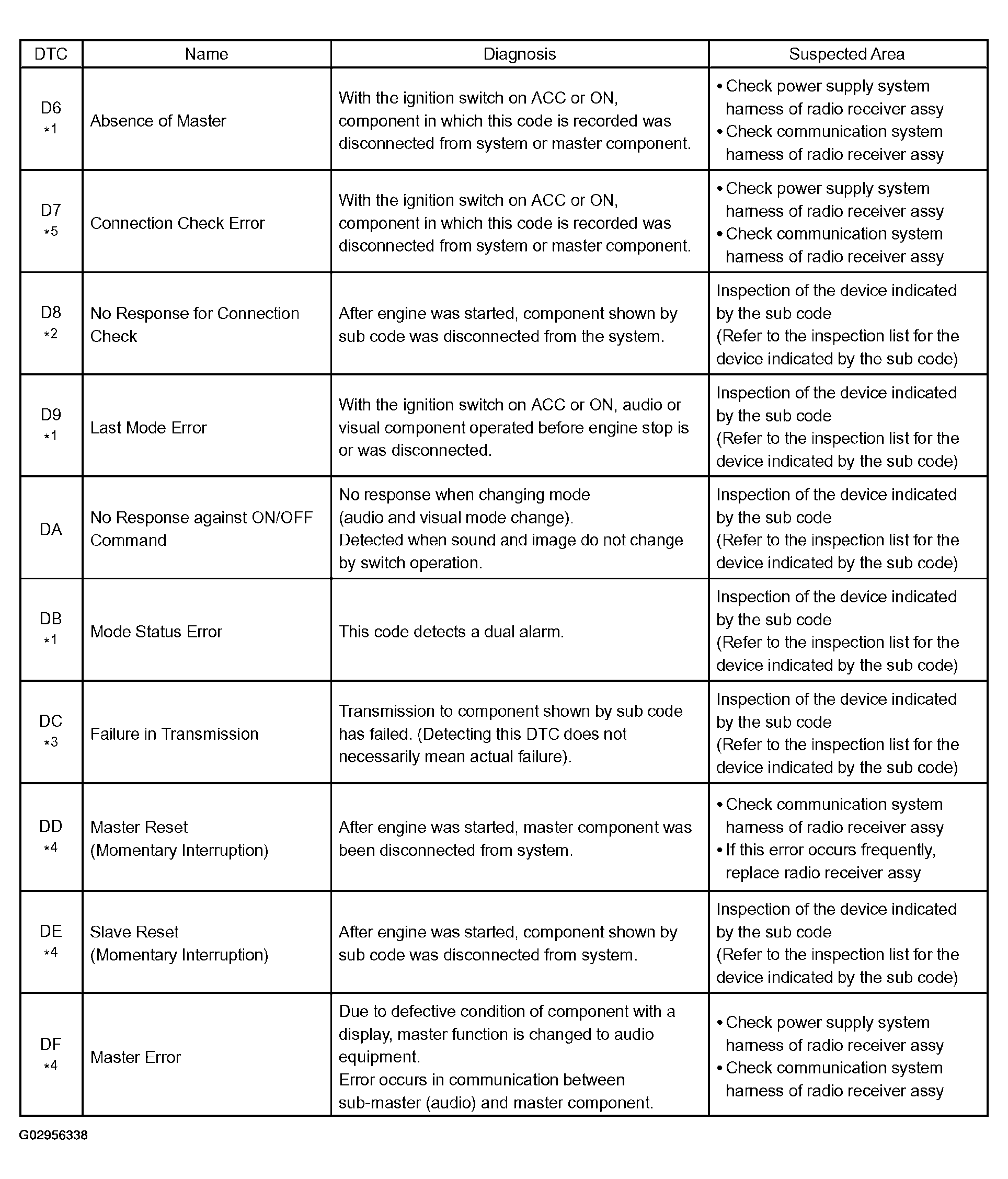

      Fig 2: DTC Radio Receiver Table (Communication Control) (1 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

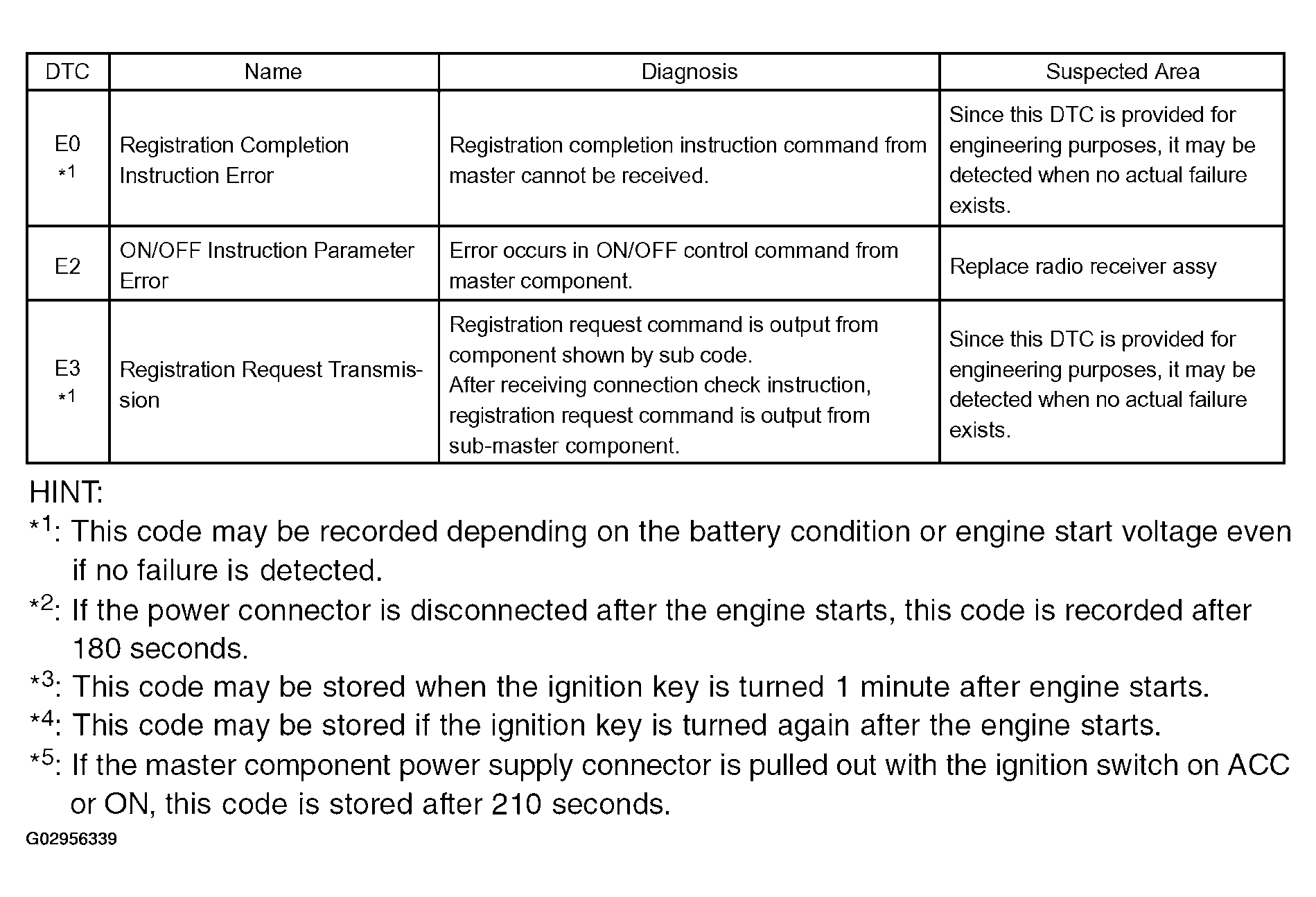

      Fig 3: DTC Radio Receiver Table (Communication Control) (2 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Logical address: 62 (CD): 63 (CD changer)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

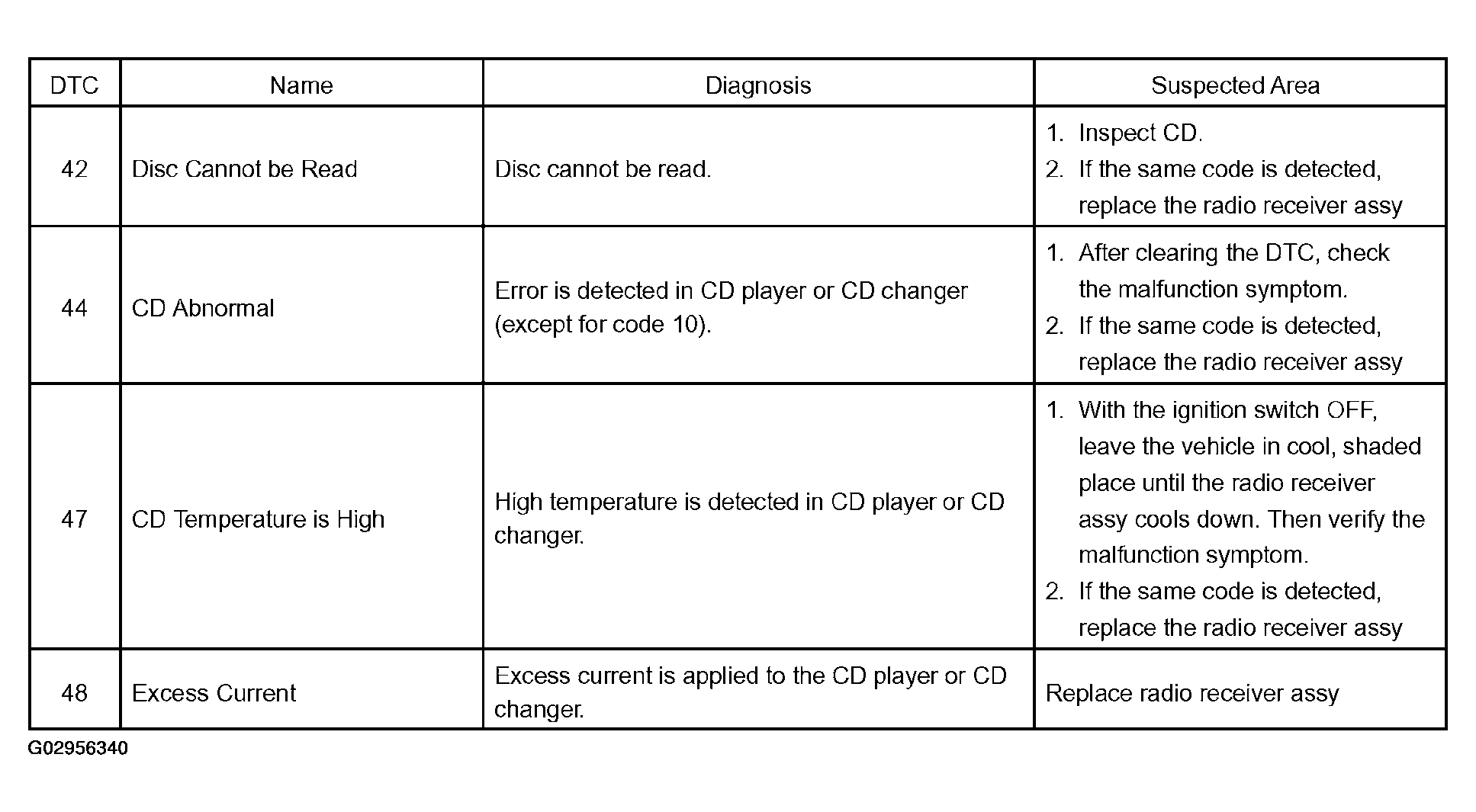

      Fig 4: DTC Radio Receiver Table (CD Changer)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Logical address: 61 (Cassette)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

      Fig 5: DTC Radio Receiver Table (Cassette)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. GATEWAY ECU (Physical address: 1C6) [G/W]
   1. Logical address: 01 (Communication control)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

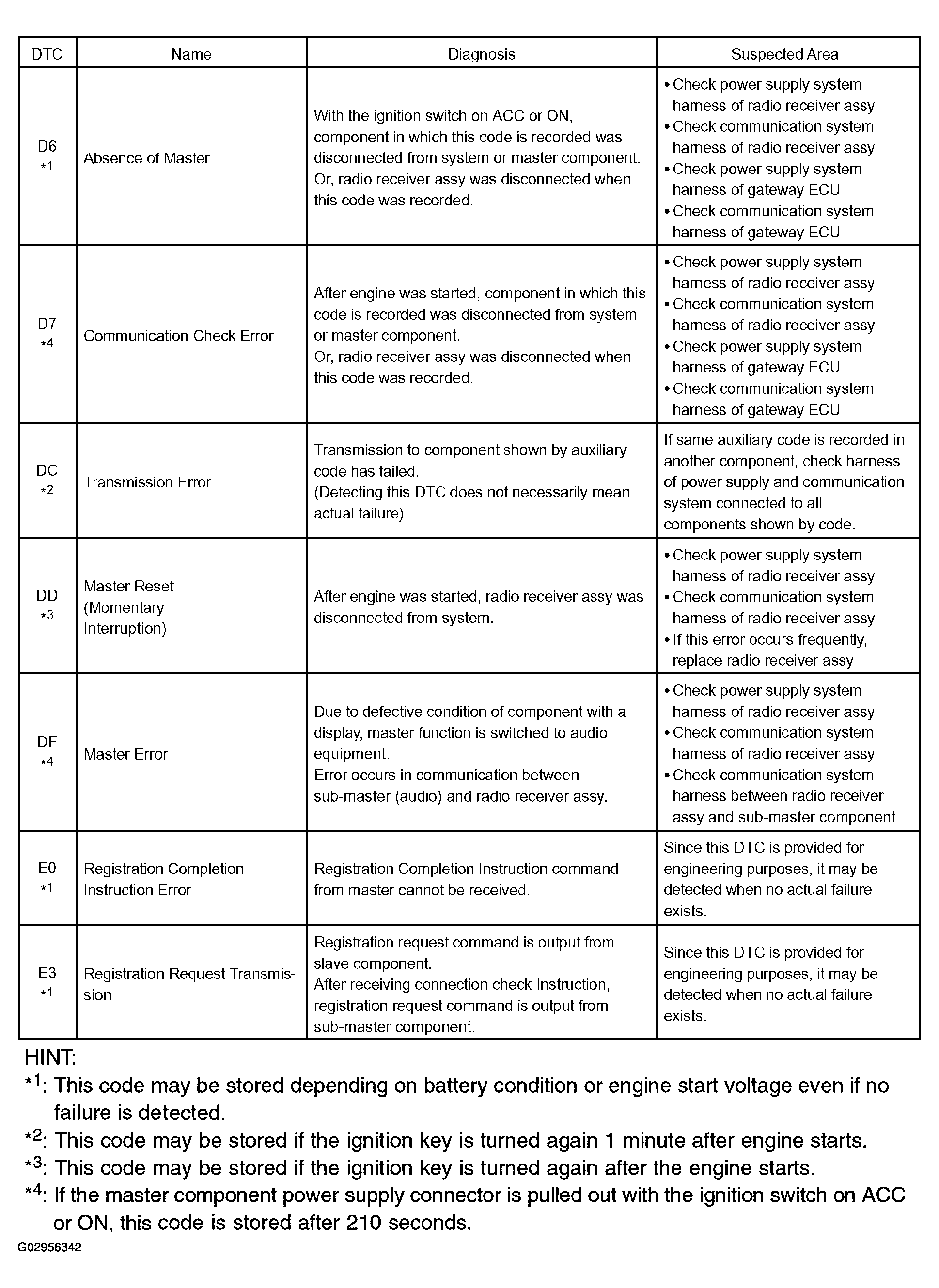

      Fig 6: Troubleshooting Reference Table - Gateway ECU (Physical Address 1C6) [G/W]

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. STEREO COMPONENT AMPLIFIER ASSY (Physical address: 440) [DSP AMP]
   1. Logical address: 01 (Communication control)

      HINT:

      Methods used to verify the cause of the problem are listed in order of probability in the verification column.

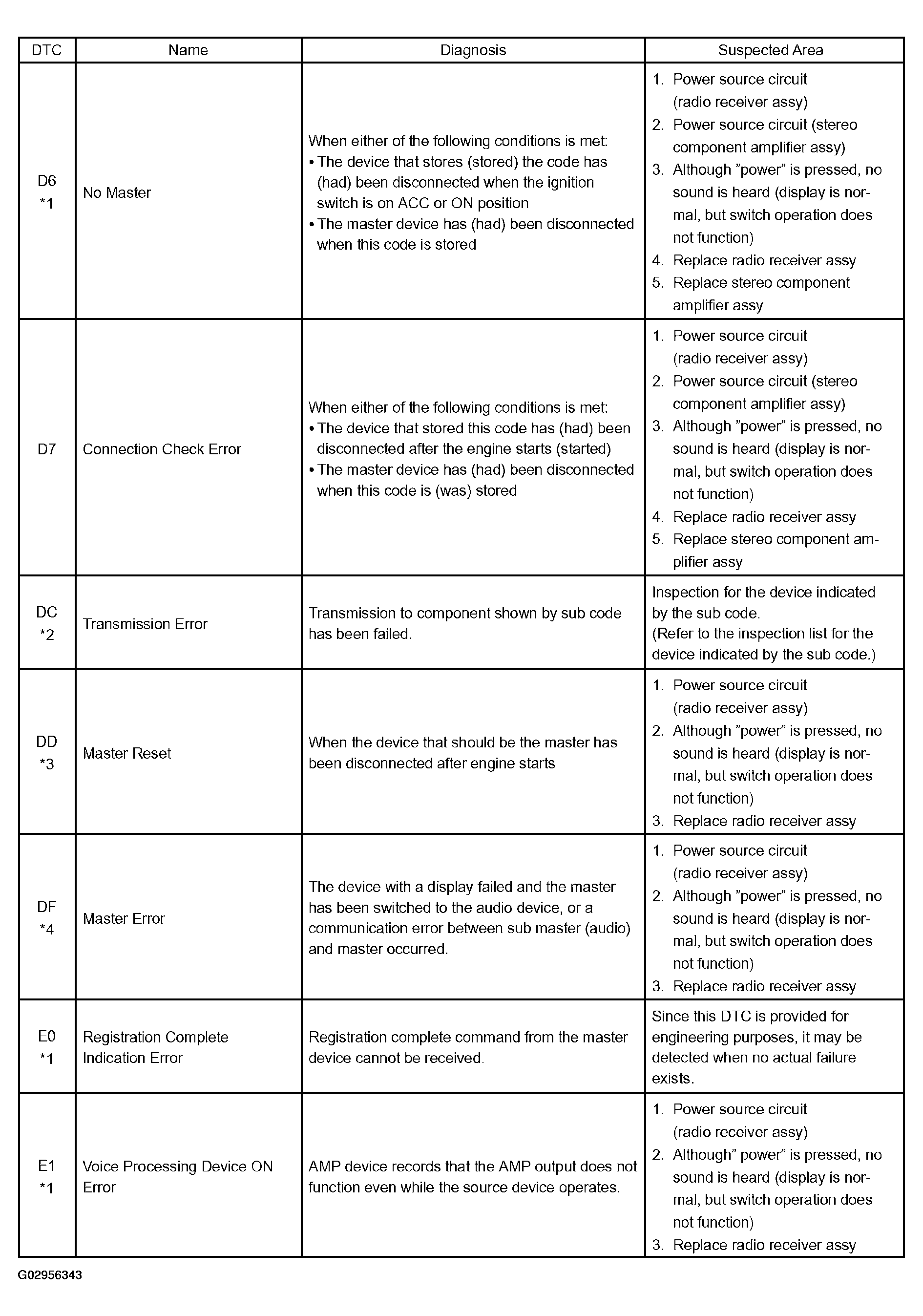

      Fig 7: Troubleshooting Reference Table - Stereo Component Amplifier Assy (Physical Address 440) [DSP Amp] (1 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

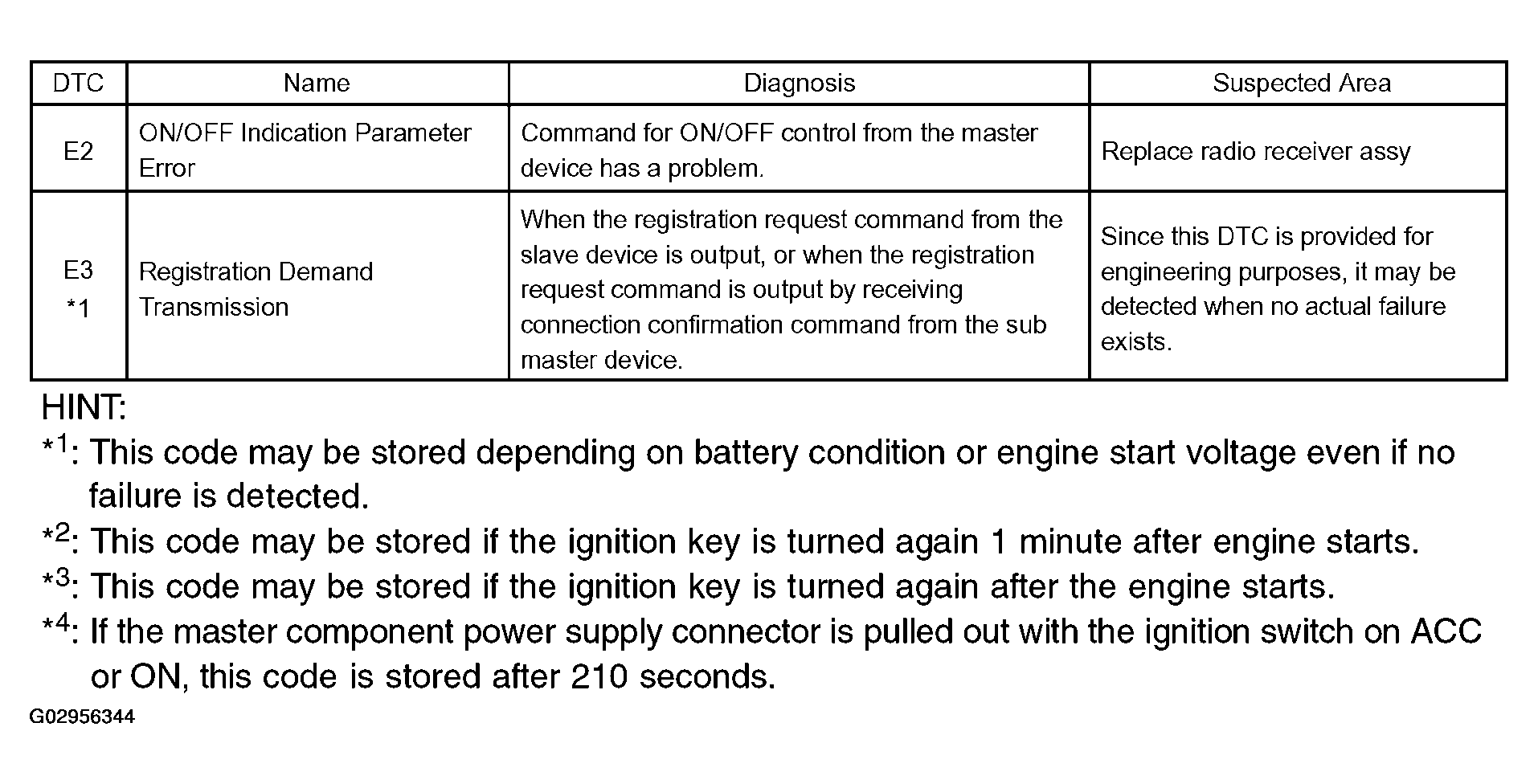

      Fig 8: Troubleshooting Reference Table - Stereo Component Amplifier Assy (Physical Address 440) [DSP Amp] (1 Of 2)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSPECTION LIST FOR DEVICE INDICATED BY SUB CODE

   HINT:

   Methods used to verify the cause of the problem are listed in order of probability in the verification column.

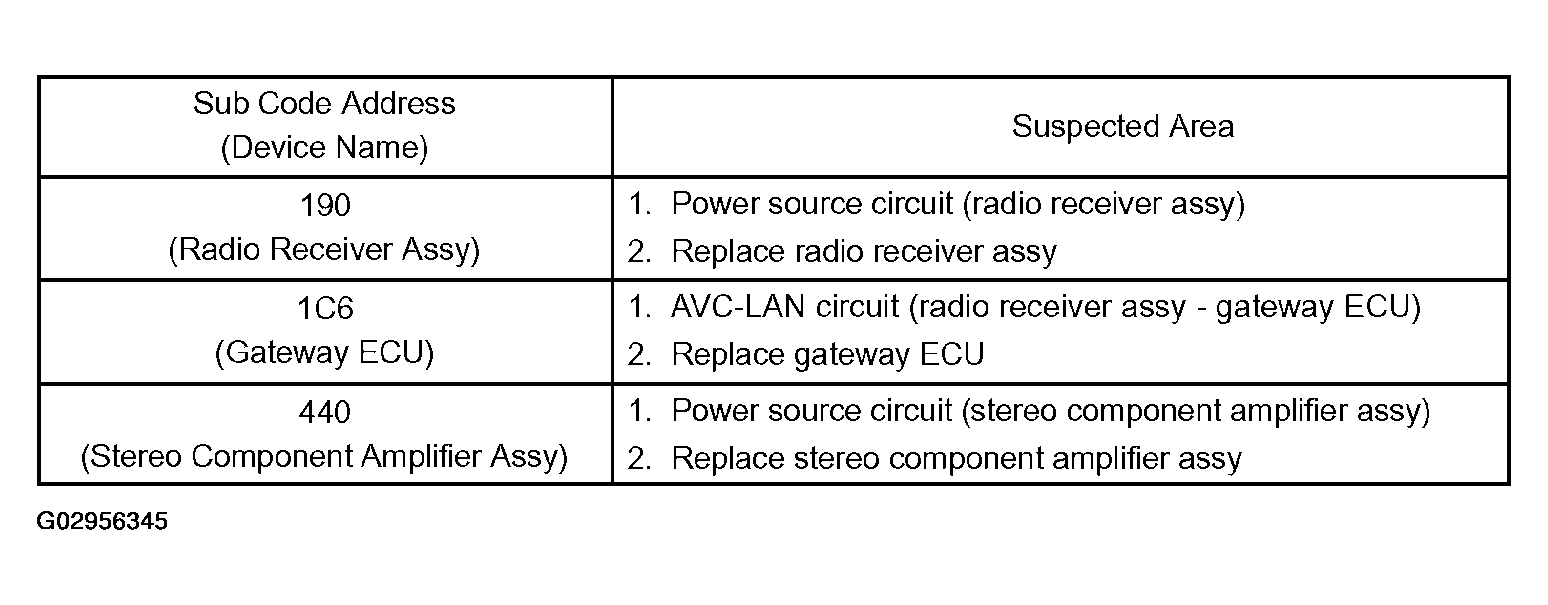

   Fig 9: Sub Code Address Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
